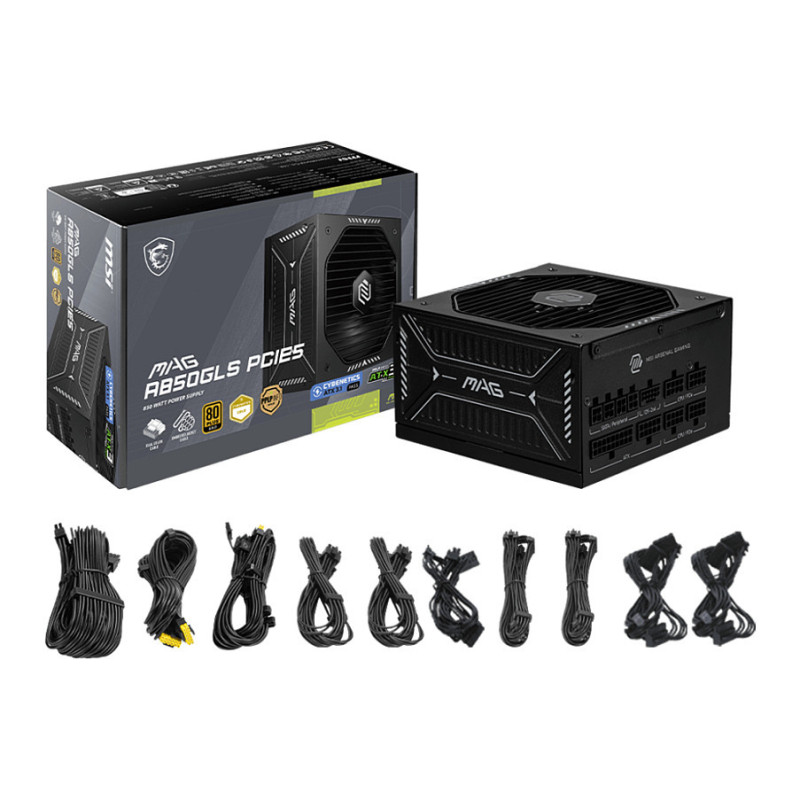

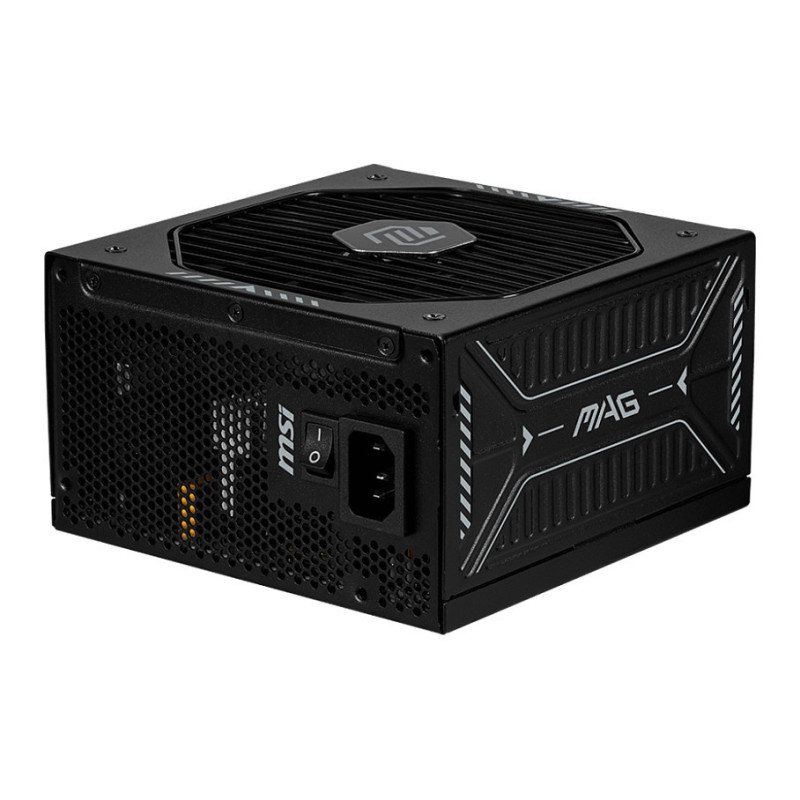

MSI MAG A850GLS PCIE5 power supply unit

MSI MAG A850GLS PCIE5. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 1870 W. Motherboard power connector: 24-pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA's 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Power

Total power: 850 W
Peak power: 1870 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Power Factor Correction (PFC) type: Active
Efficiency: 90%
Power protection features: No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage

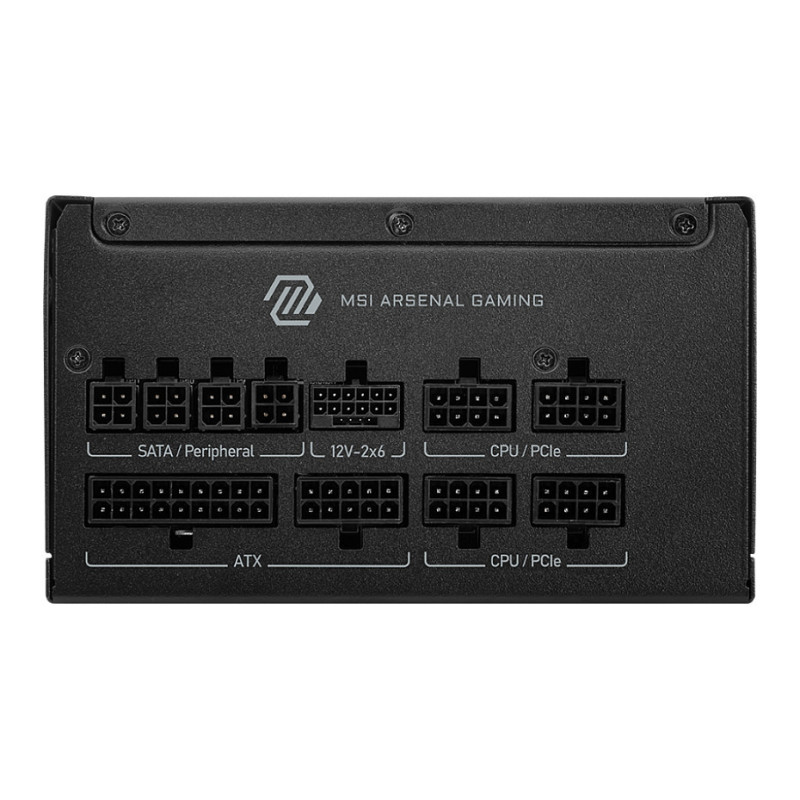

Ports & interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 3
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
Feature: ATX Power connector (24-pin)
Feature: PCI Express connector
Number of EPS connectors: 2
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB

Design

Product colour: Black
Cooling type: Active

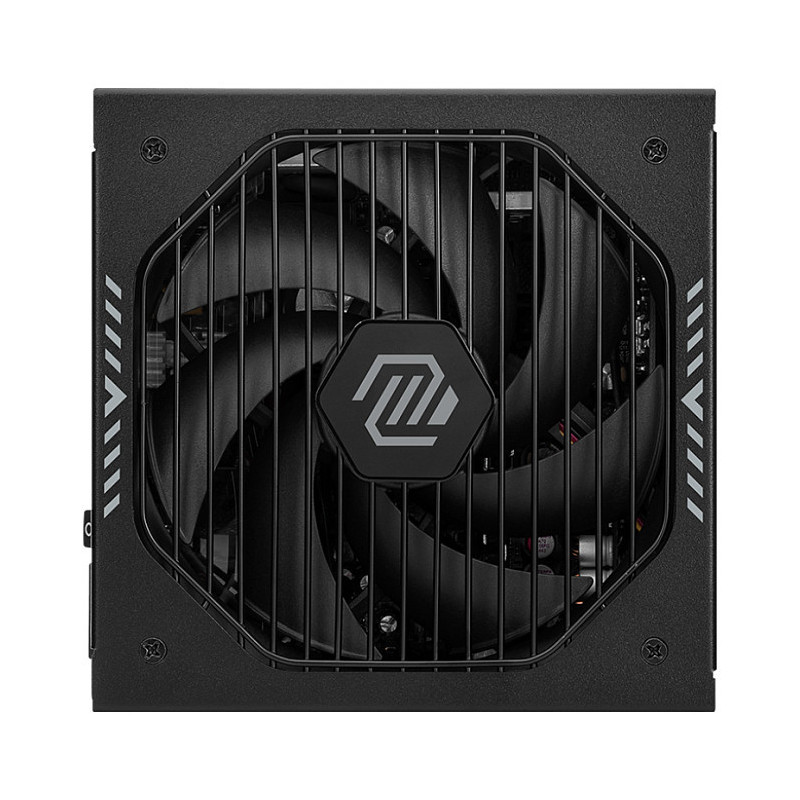

Fan diameter: 13.5 cm
Number of fans: 1 fan(s)

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm

Packaging data

Package type: Box
