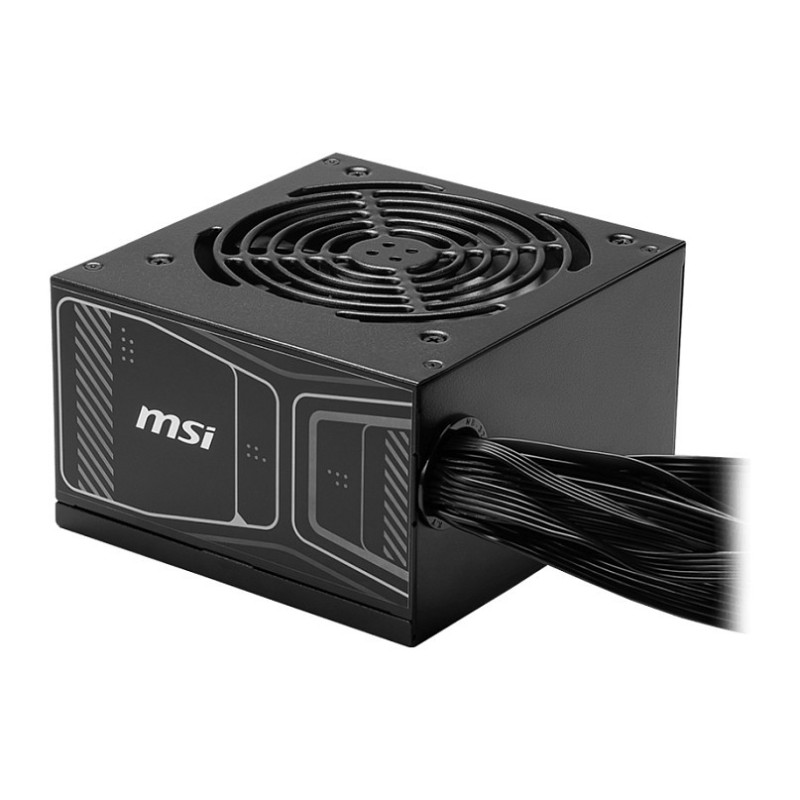

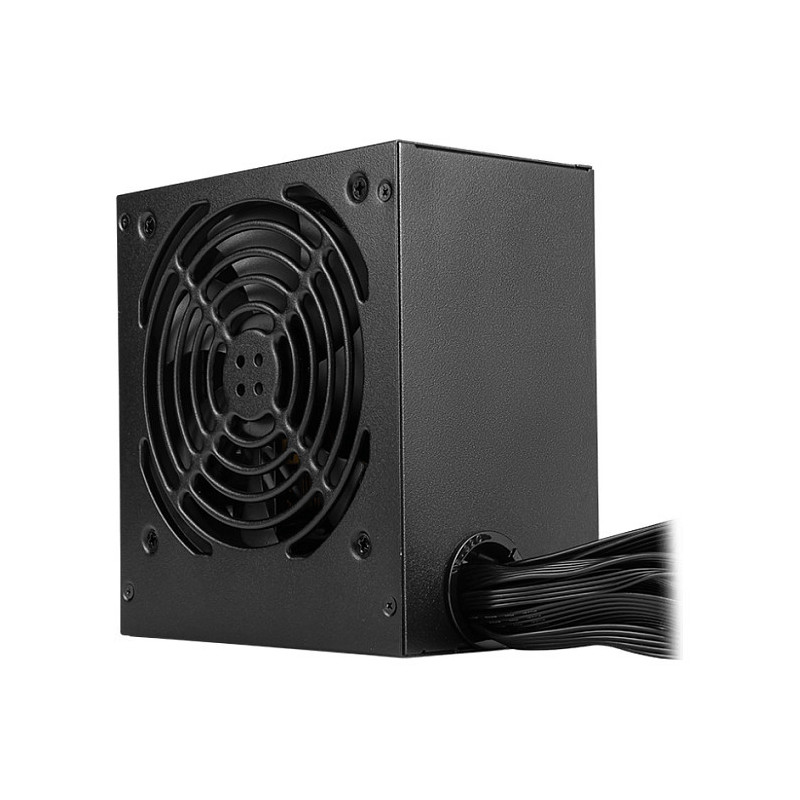

MSI MAG A750GN PCIE5 power supply unit

MSI MAG A750GN PCIE5. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ATX 3.1 Ready
It has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion.

Offer the CPU sufficient power
This power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs.

POWER AT YOUR SIDE
The power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system.

SET FREE FOR THE +12V POWER OUTPUT
The latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery.

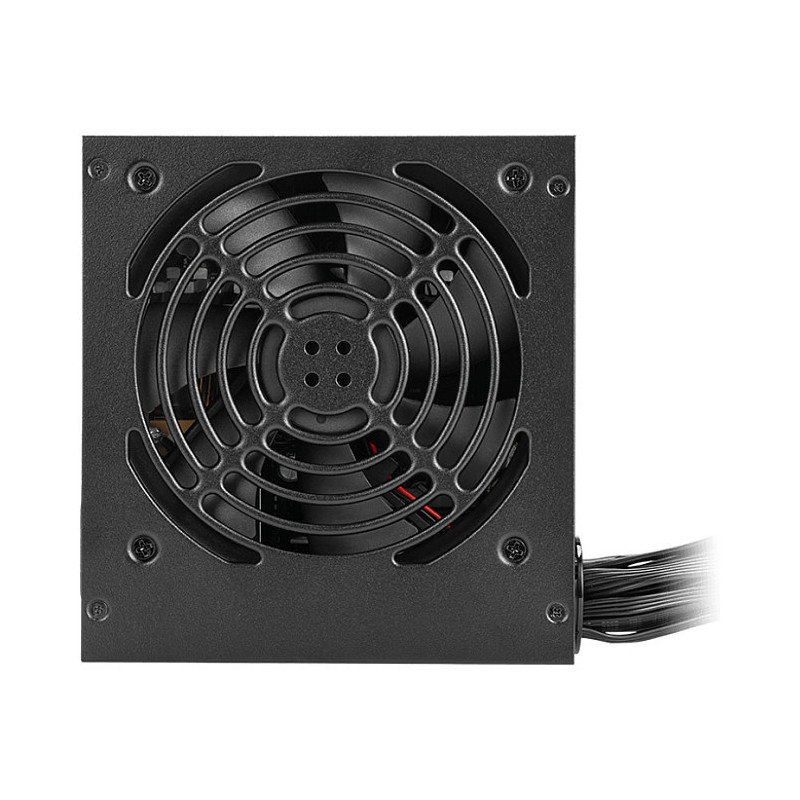

FAN
The fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA.

Capacitors You Can Trust
The 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability.

CERTIFIED CABLE
This power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges.

PROTECTION MECHANISMS
operate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

connectors
This power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Maximum input current (@110V): 47 A
Maximum input current (@220V): 63 A
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 110 W
Combined power (+12V): 750 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of SATA power connectors: 4
SATA power cable length: 150,450 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Sleeve

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm

Packaging data

Package type: Box
