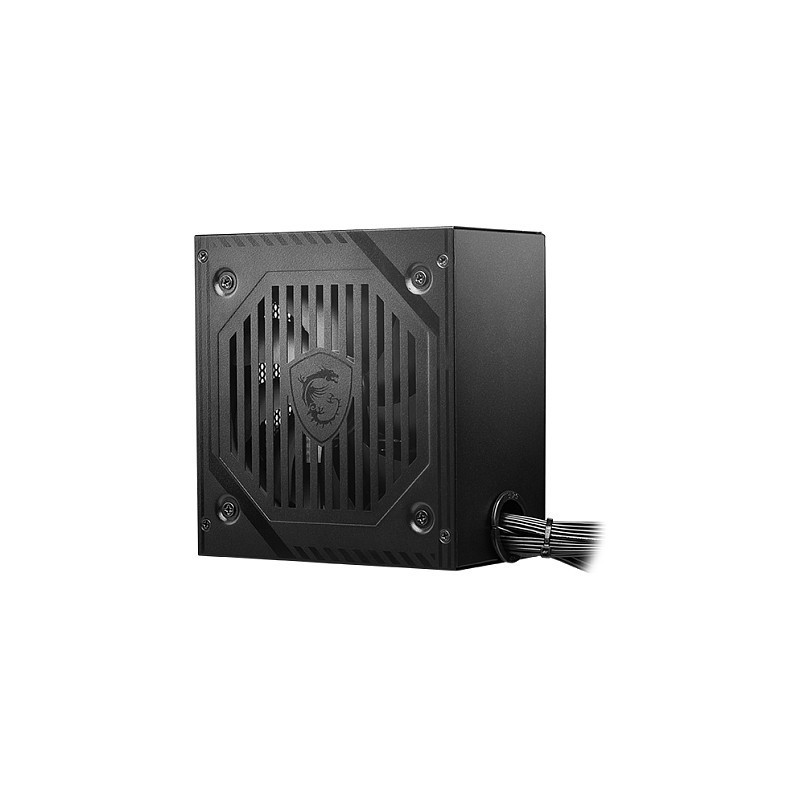

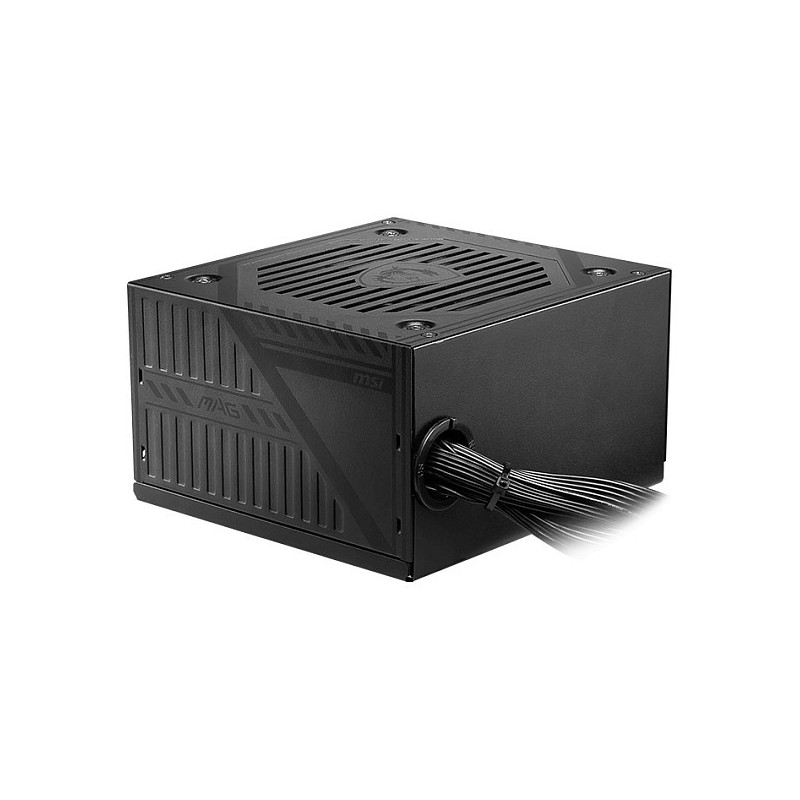

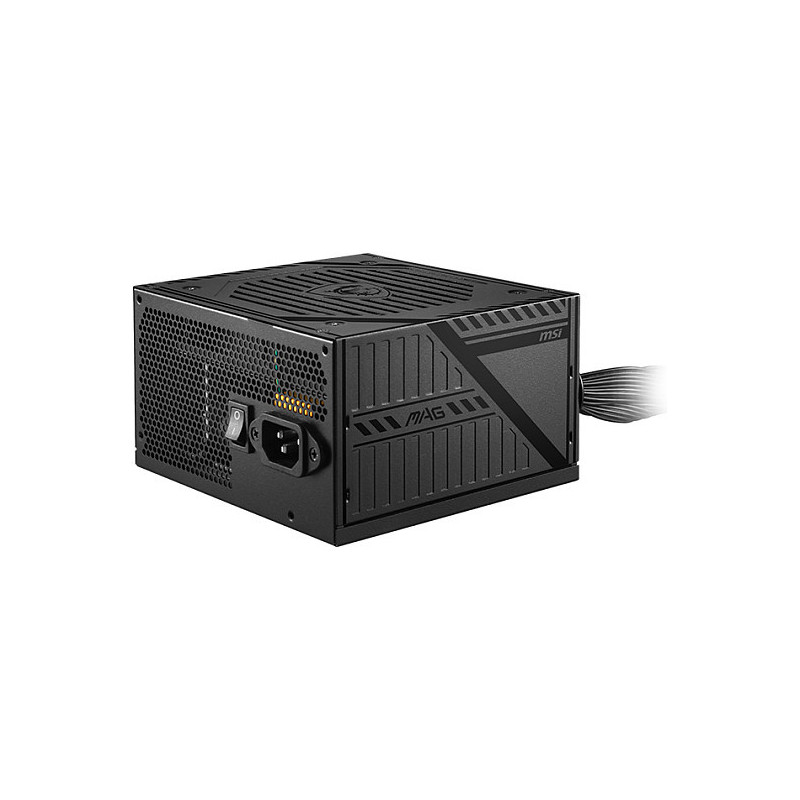

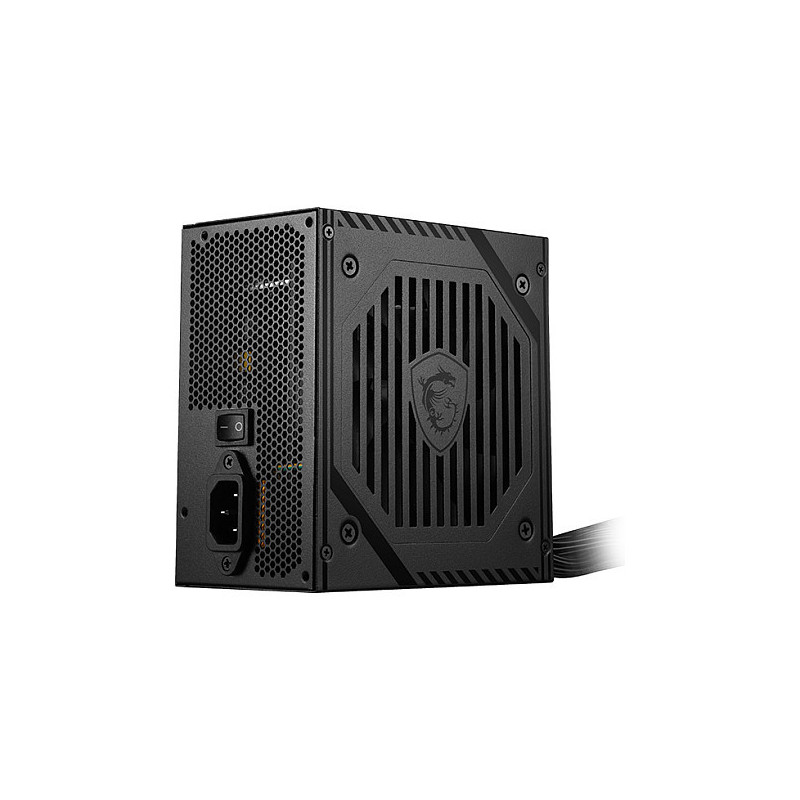

MSI MAG A650BNL power supply unit

MSI MAG A650BNL. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

The MAG A650BNL's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A650BNL, any system has the power it needs to survive all challenges.

80 PLUS BRONZE

The efficiency of your power supply directly influences your system's performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.

PROTECTION DESIGN

Protection is designed to protect the unit mechanisms and provides comprehensive protection.

TEMPERATURE ADAPTATION

Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.

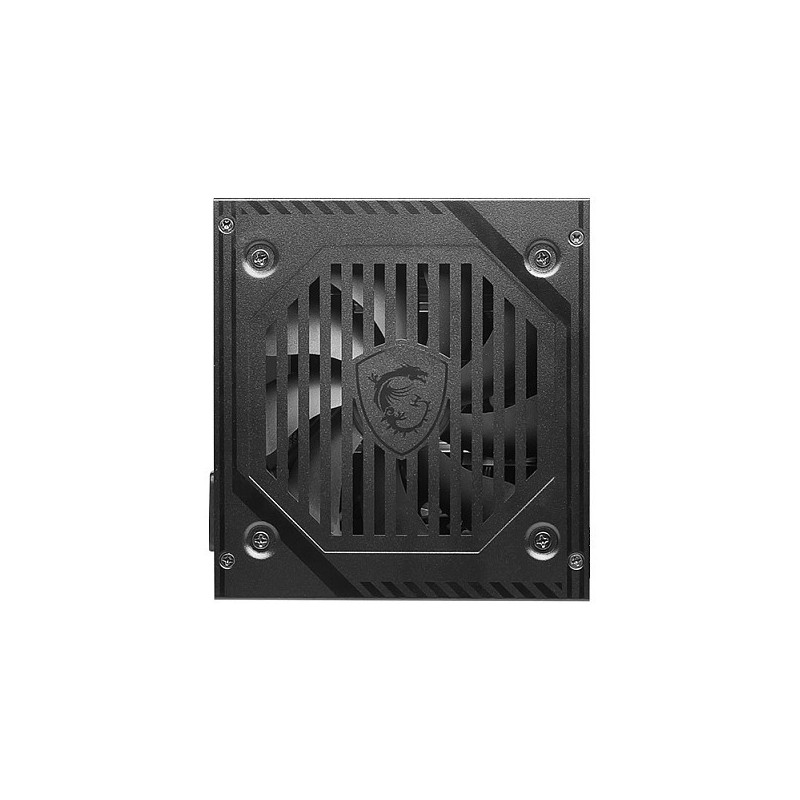

120mm LOW NOISE FAN

The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.

FLAT CABLE EQUIPMENT

The MAG A650BNL's cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.

Power

Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Efficiency: 85%
Power protection features: Over current, Over power, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 5
Peripheral (Molex) power connectors (4-pin): 2
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: ATX Power connector (24-pin)
Feature: Floppy disk drive connector
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: Hydraulic

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
