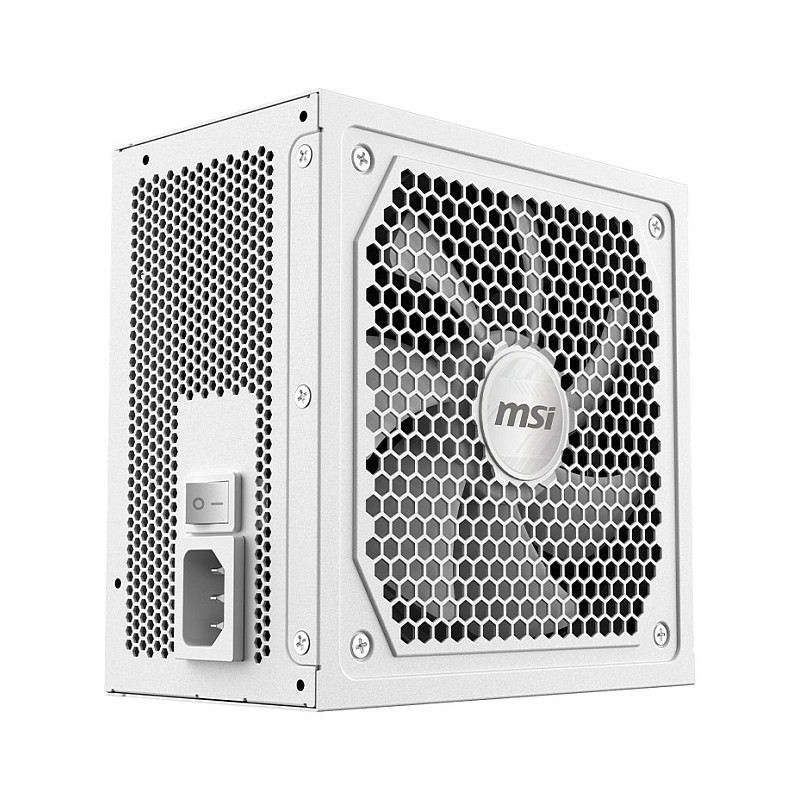

MSI MAG A1000GL PCIE5 WHITE power supply unit

MSI MAG A1000GL PCIE5 WHITE. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm

ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power Factor Correction (PFC) type: Active
Number of +12V rail(s): 1
Combined power (+3.3V): 120 W
Combined power (+12V): 999.6 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 83.3 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

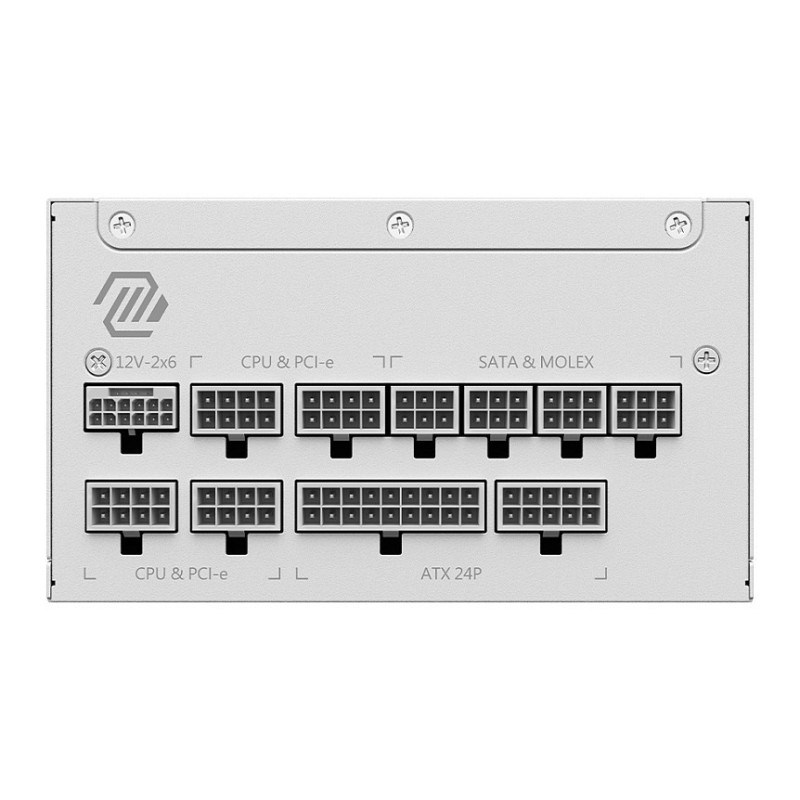

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
SATA power cable length: 150,500 mm
Peripheral (Molex) power connectors (4-pin): 1
Peripheral (Molex) power cable length: 450,500 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (16-pin): 1
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB

Design

Product colour: White
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan speed: 500 - 1800 RPM
Feature: On/off switch

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
Weight: 169 g
