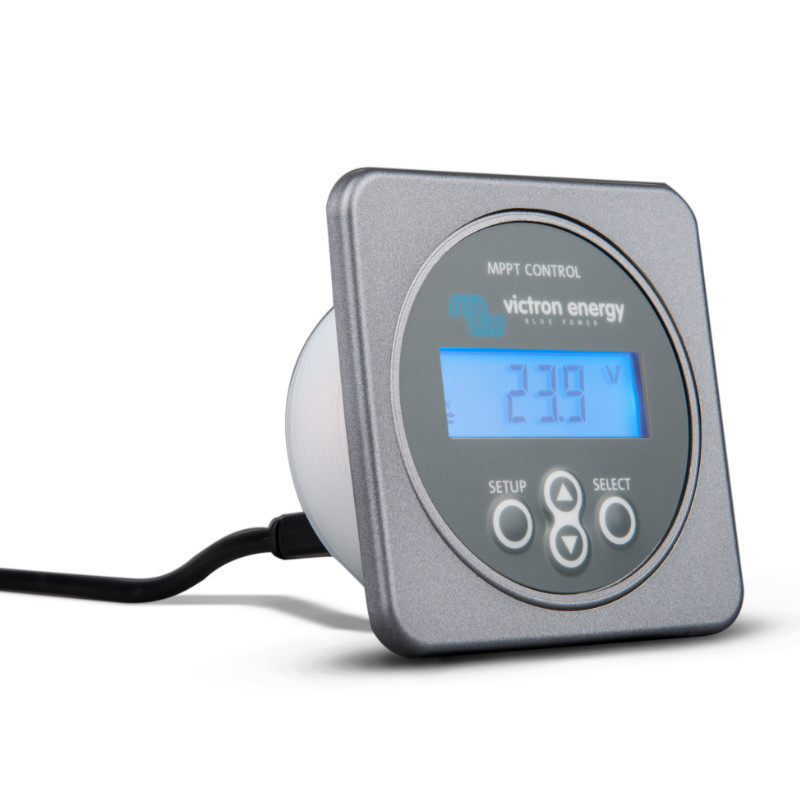

MPPT Control (VE.Direct cable not included)

is an advanced branding tool Victron Energy, which provides comprehensive supervision of the battery charging process in photovoltaic systems. Equipped with the ability to communicate with controllers BlueSolar and Smart MPPT Charge, this device guarantees precise monitoring and optimization of energy obtained from solar panels. Regardless of weather conditions, MPPT Control ensures the system operates at maximum efficiency by tracking the maximum power point (MPPT), resulting in more efficient battery charging. It's worth noting that the device requires the purchase of an additional cable. VE.Direct, which is not included in the kit, which should be considered when purchasing.
The device offers a highly readable display and an intuitive user interface, making viewing system parameters extremely easy. The screen allows you to analyze values such as voltage, current, and power generated by the solar panels in real time. This allows users to easily monitor the current system status and make energy management decisions based on real-time data. Additionally, MPPT Control allows access to the system's operation history for the last 30 days, giving you full insight into energy efficiency.
Compatibility with Victron Energy devices This is another advantage of this product. The device is compatible with a wide range of controllers. MPPT, which allows for easy integration into existing photovoltaic systems, ensuring their full functionality. Installation is extremely simple - MPPT Control can be mounted both on the wall and in panels, which gives the user complete freedom in choosing the mounting location. The aesthetics of the device, similar to the series BMV-700, fits perfectly with the rest of the monitoring system, which makes the whole thing look modern and professional.

Technical specifications

• Supply voltage range: 6.5 - 95 VDC (battery powered), 5 V (VE.Direct powered)


• Power consumption (with backlight off): < 4mA


• Operating temperature range: from -20°C to +50°C


• Supported MPPT models: All models with VE.Direct port, except BlueSolar MPPT 70/15


• Software: Versions > =1.12


• Dimensions: Front: 63 mm diameter, Front bezel: 69 x 69 mm, Depth: 31 mm


• Cables: Fused cable for battery power supply

This is an indispensable tool for anyone looking for an effective way to monitor and manage the battery charging process in photovoltaic systems. Thanks to its precise control, ease of use, and integration with other devices, it offers: Victron Energy, it's the perfect choice for any system where maximizing energy efficiency is key. Remember to purchase the cable separately. VE.Direct for full functionality!
