Renogy BT-2 Bluetooth Module for RS485 Port (RCM-BT2)

The Renogy BT-2 Bluetooth module (RCM-BT2) is a modern device designed for wireless monitoring of Renogy solar systems and accessories. It allows users to remotely access device operating parameters via the Renogy DC Home app, significantly improving the user experience of photovoltaic systems. Thanks to its RS485 communication port, the module is compatible with numerous Renogy products, making it a versatile solution for every user.

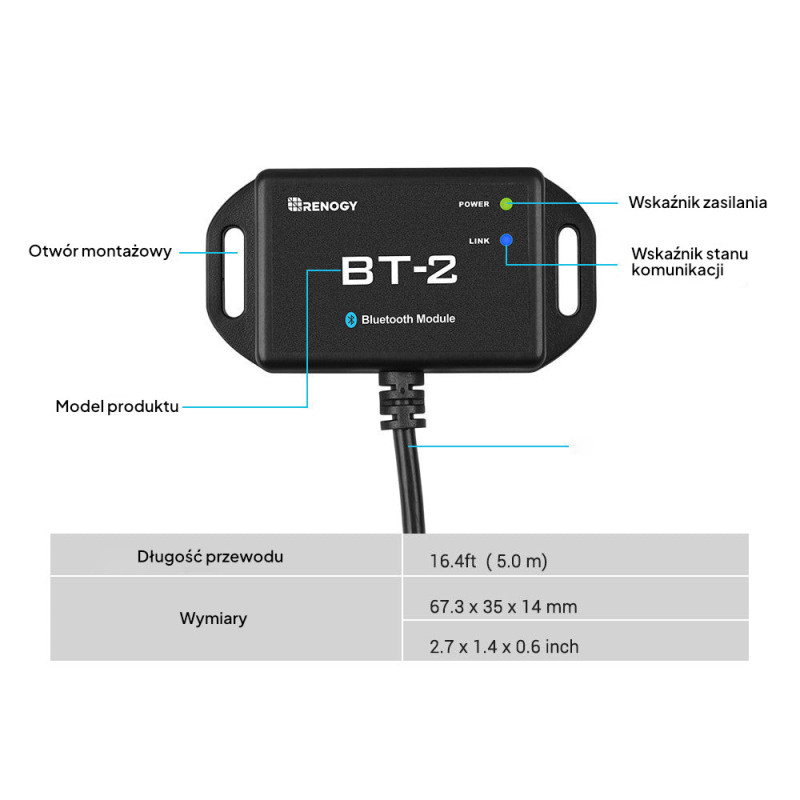

The module's compact and robust design, measuring 67.3 x 35 x 14 mm, allows for easy placement in a variety of environments. It's IP54-rated, meaning it's dust- and splash-resistant, making it ideal for use in campers, boats, and other outdoor applications. Additionally, a 5-meter cable is included, allowing for convenient remote installation without the need for additional wiring.

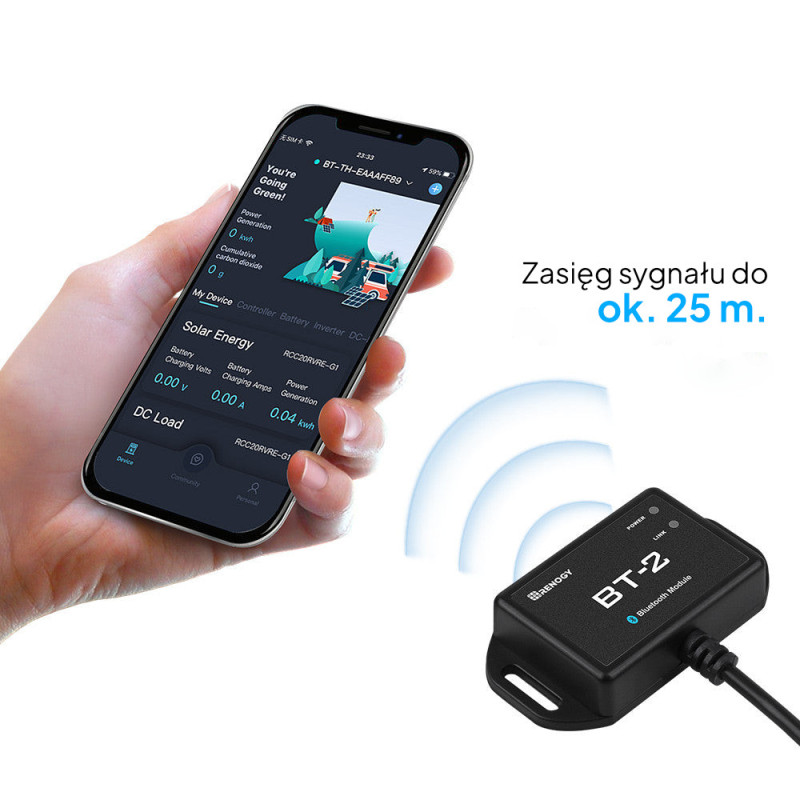

Key features of the module include a stable Bluetooth 4.2 connection that provides a range of up to approximately 25 meters (82 feet). Thanks to its low power consumption of just 0.04 W in standby mode and 0.05 W during operation, the module places virtually no strain on the electrical system. Users can continuously monitor battery charging status and other device parameters, allowing for quick response in the event of an irregularity.

Applications:

• Monitoring photovoltaic systems in campers and boats.

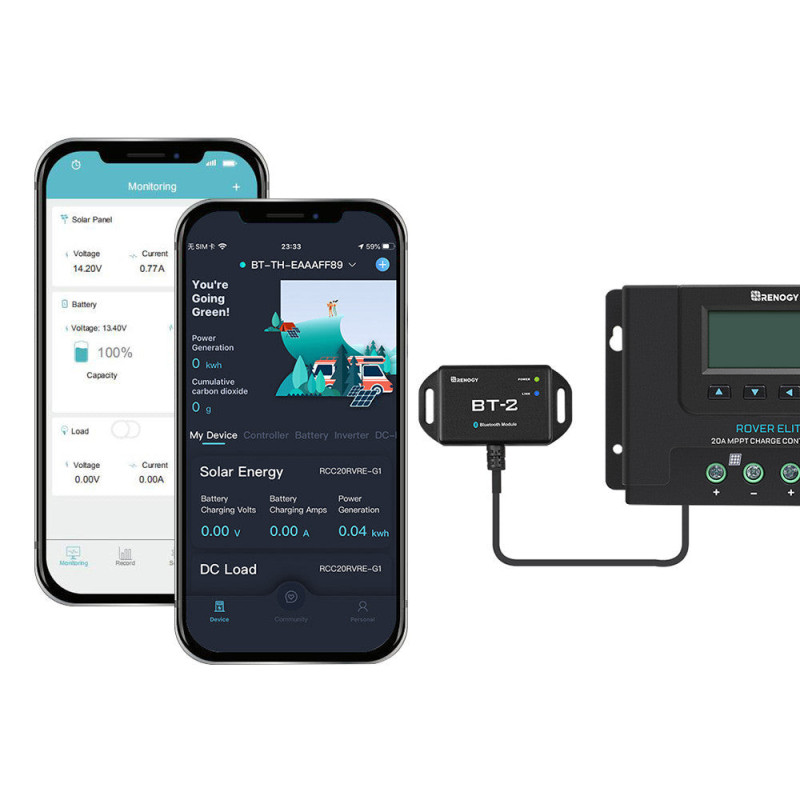

• Remote tracking of operating parameters of Renogy chargers and regulators.
• Enabling access to real-time data via a mobile application.

The BT-2 module is ideal for users who want complete control over their energy system, regardless of their location. With simple installation and hassle-free operation, it's a great addition to any Renogy system.

Technical data

The Renogy BT-2 module comes with a 5-meter cable and user manual, making installation and commissioning easy. During installation, it's important to ensure proper module placement for optimal Bluetooth range. The BT-2 module is a practical solution that allows for efficient energy system management, and its compact size means it doesn't take up much space. If you're looking to enhance the user experience of your photovoltaic system, the BT-2 is an excellent choice.
