MC200CM media converter 1GbE MM-SC

TP-Link MC200CM Gigabit Ethernet Media Converter
OVERVIEW
* Complies with IEEE 802.3ab and IEEE 802.3z standards
* Enables the configuration of the pre-port FX switch.
* Predlžuje dosach optical vedenia až na 0.5 km.
SPECIFICATIONS
Standards and protocols
* IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic functions
* Full duplex control flow (IEEE 802.3x)
* Predlžuje dosach optical vedenia až na 0.5 km s káblom 50/125um
* Predlžuje dosach optical vedenia až na 0.22 km s káblom 2.5/125 um
Ports

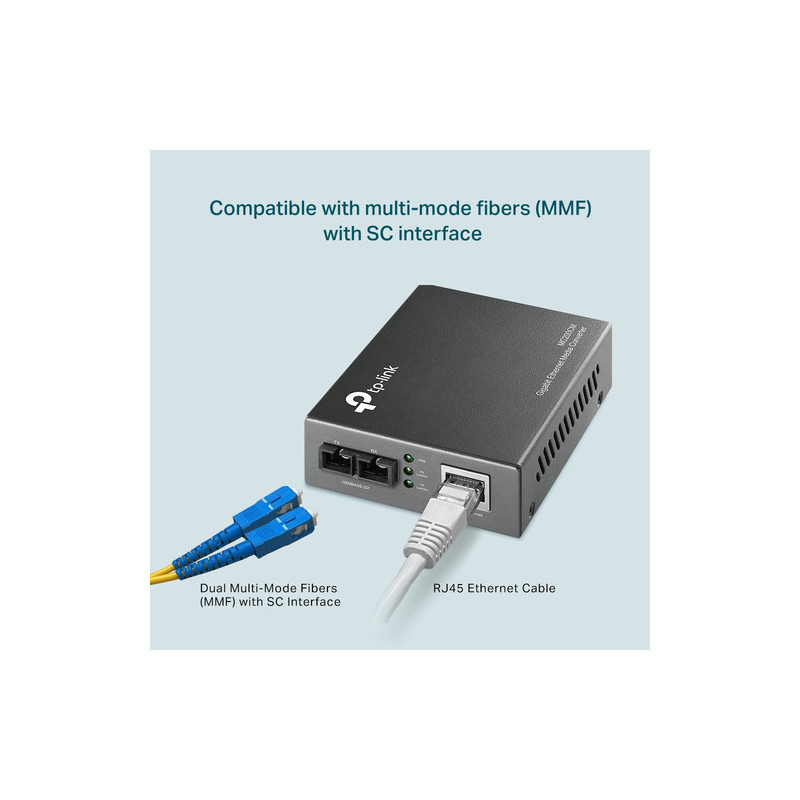

* 1 port 1000M SC
* 1 port 1000M RJ45 (Auto MDI/MDIX)
Wavelength
* 850nm
Network media 1000BASE-T
* Kábel UTP category 5, 5e (max. 100 m)
* EIA/TIA-568 100 Ω STP (max. 100 m)
Network media 1000BASE-FX
* Multi-core optical cable
Network media 1000BASE-FX
* Viacrežimové optické filjedo
Network media 1000BASE-T
* UTP category 5, 5e cable (maximálne 100 m)
* EIA/TIA-568 100 Ω STP (maximálne 100 m)
LED indicators
* PWR, LINK, RX

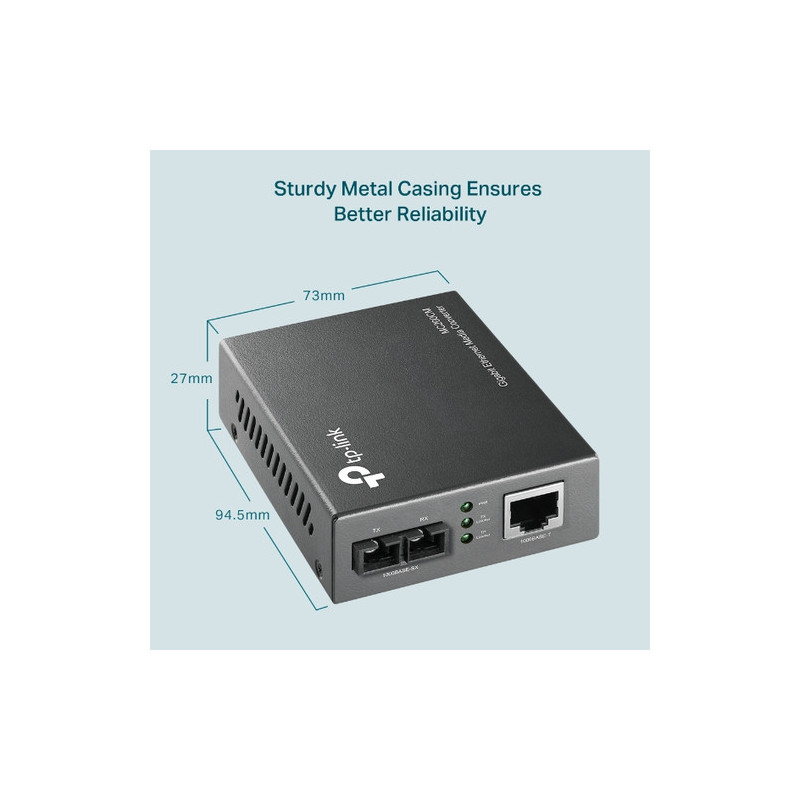

Dimensions (W*D*H)
* 94.5*73.0*27.0mm
Power supply
* External power adapter (súčasť balenia AC-DC Power Adapter DC9V/600mA)
Maximum energy consumption
* 5.5W
Safety and emissions
* FCC, CE
Operating environment
* Prevádzková temperature: 0-40 °C
* Temperature during operation: -40-70 °C
* Prevádzková humidity: 10-90 % without condensation
* Vlhkosť non-operation: 5-90 % without condensation
