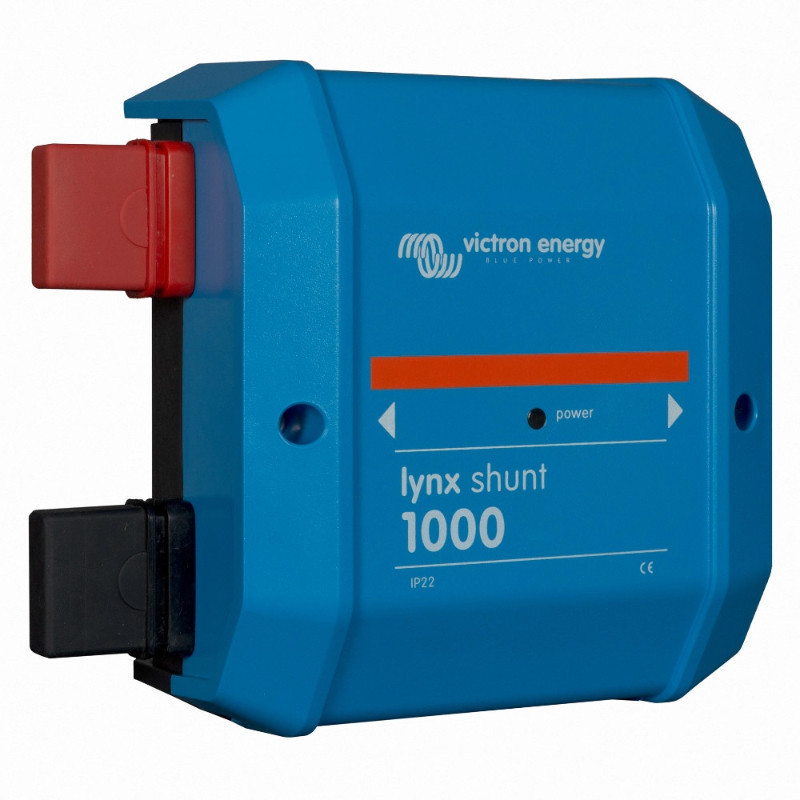

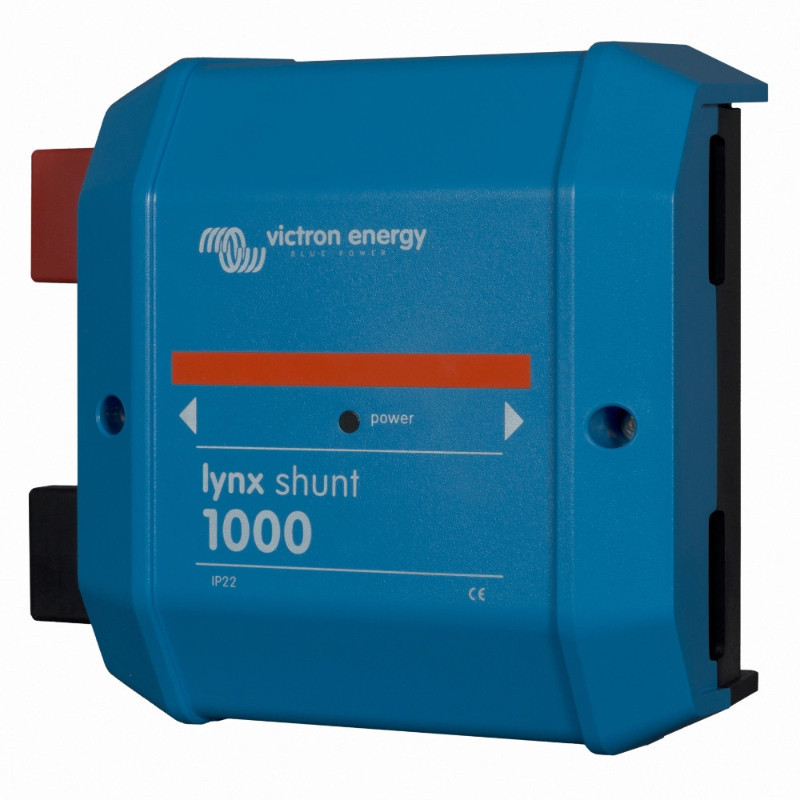

Lynx Shunt VE.Can (M10)

is an advanced, modular battery monitor from the brand Victron Energy, designed to effectively monitor and manage power distribution in complex DC systems. Precise current and voltage measurements give users complete control over battery charge status and optimize energy consumption. It's a unique component of a larger system. Victron Energy Lynx, which enables the integration of various monitoring and security elements, significantly improving the efficiency and security of each installation.
Lynx Shunt VE.Can supports power systems operating at 12V, 24V, and 48V, offering stability and versatility in a variety of conditions. Connects via connectors M10 guarantees ease of installation and stability of the entire system, while advanced monitoring features allow users to closely monitor battery health and performance. To read data from the device, simply use GX (e.g. Cerbo GX), which provides convenient and secure access to detailed information about the system's operation.

Advanced Monitoring and Easy Integration

Thanks to the precise monitoring function, Lynx Shunt VE.Can (M10) It records every detail of the current and voltage in the power system, enabling precise analysis and optimization of energy consumption. This approach not only provides control over the current battery status but also the ability to predict and prevent potential failures. Using this device in multi-battery systems gives owners complete insight into energy consumption and allows for a more informed approach to resource management.
Victron Energy made sure that integration Lynx Shunt VE.Can (M10) was as simple as possible. Thanks to a variety of connection options, such as connectors RJ45 and RJ10, installation is intuitive and quick, and additionally allows for trouble-free connection to dispensers Lynx This device also features advanced alarm features, allowing users to quickly respond to any irregularities and providing an additional level of security.

Technical specifications

• Model: Lynx Shunt VE.Can (M10)


• Supply voltage range: 9 - 70 Vdc


• Supported system voltages: 12V, 24V or 48V


• Reverse polarity protection: Lack


• Current rating: 1000 Adc (continuous)


• Power consumption:



  • 60 mA at 12V


  • 33 mA at 24V


  • 20 mA at 48V






• Potentially free alarm contact: 3A, 30Vdc, 250Vac

• Busbar: M10


• Fuse: M8


• VE.Can: RJ45 and RJ45 terminator


• Connecting the power supply to the Lynx Distributor: RJ10 (RJ10 cable shipped with every Lynx Dispenser)


• Temperature sensor: Screw clamp


• Relay: Screw clamp

• Housing material: ABS


• Housing dimensions (H x W x D): 190 x 180 x 80 mm


• Unit weight: 1.4 kg


• Busbar material: Tinned copper


• Busbar dimensions (height x width): 8 x 30 mm


• Operating temperature range: -40°C to +60°C


• Storage temperature range: -40°C to +60°C


• Humidity: Max. 95% (non-condensing)


• Protection class: IP22

This reliable and functional battery monitor is designed to provide the highest level of control over energy distribution. With a wide voltage range and diverse integration options, it is an invaluable component of energy systems requiring precision and stability. Innovative monitoring features, combined with a modular design, make this device an ideal choice for those concerned with the optimization and energy security of their installations.
