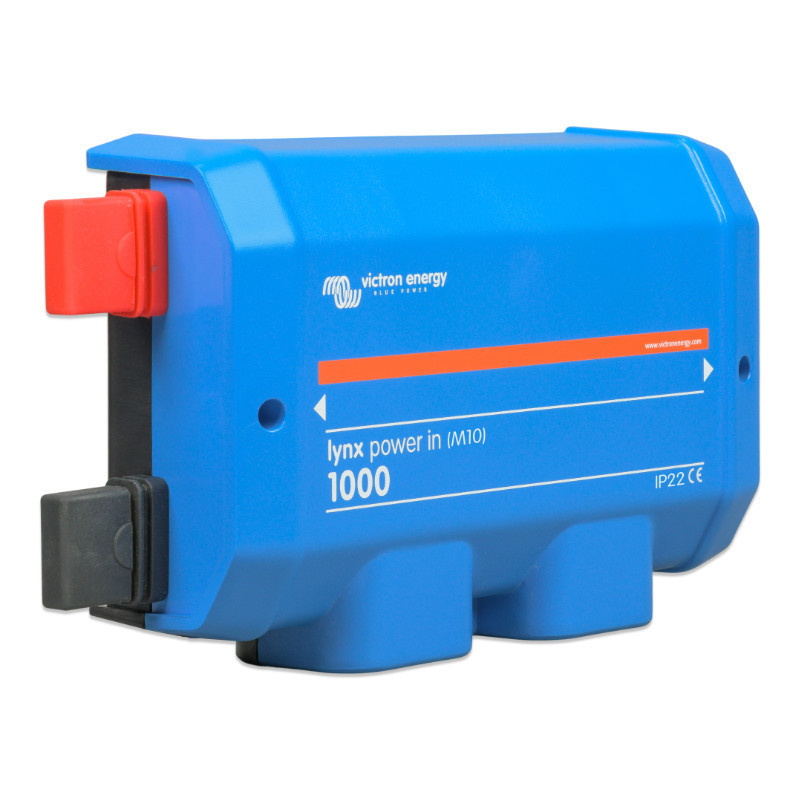

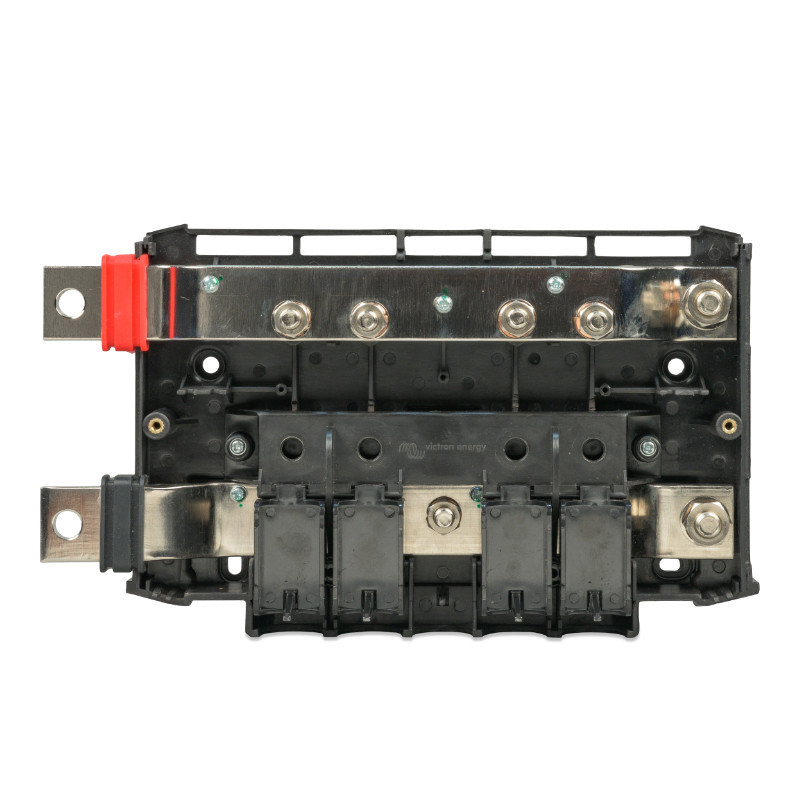

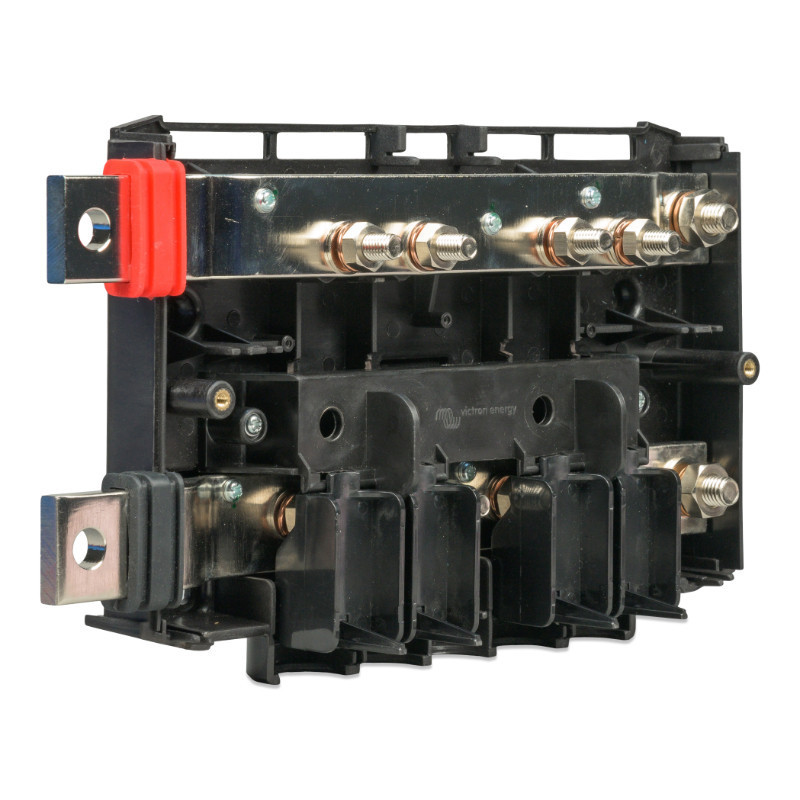

Lynx Power In (M10)

is an advanced DC power splitter created by Victron Energy, designed for efficient and safe energy management in complex installations. The device allows for efficient connection of up to four battery banks to a direct current (DC) bus, allowing for optimized energy distribution in various power system configurations. This module integrates with other system components. Victron, including Lynx Distributor, creating a versatile energy management system. This allows for the connection of multiple devices, such as inverters MultiPlus which can operate in a three-phase configuration, making this system extremely flexible and scalable.
Lynx Power In It was built with durability and reliability in mind, so its housing is made of high-quality material ABS, which provides resistance to corrosion and mechanical damage. Its robust construction makes the device suitable for harsh environmental conditions, maintaining its functionality even at extreme temperatures ranging from -40°C to +60°C. High-quality construction ensures trouble-free operation, and its compatibility with busbars and connectors M10 guarantees quick and secure cable connections. This is the ideal solution for those looking for a modular, easy-to-install and maintain energy management system for their installations.

Efficient Energy Management and Ease of Integration

It's not only a reliable power distributor, but also a system element that enables advanced monitoring and control of energy flow. Its design ensures safe and consistent voltage input from individual battery banks, which is crucial to the efficiency of the entire system. This enables stable power supply to even the most demanding installations, such as those using multiple inverters, storing large amounts of energy, or supporting complex DC power networks. Lynx Power In works with a wide range of Victron Energy devices, which makes its integration with existing systems quick and trouble-free.
The modularity of this solution allows it to be expanded as energy needs grow. Lynx Power In It works perfectly with systems that require a larger number of power management modules, giving the user flexibility and complete control over the installation configuration. Its ability to handle operating voltages ranging from 9 to 60 VDC and a maximum load current of 1000 A means it can handle even the most demanding power systems, ensuring uninterrupted power supply to all connected loads.

Technical Specifications

• Operating voltage range: 9 - 60 VDC


• Maximum load current: 1000 A


• Connection method: BusBar M8


• Possibility of adding modules: Yes


• Material of manufacture: ABS


• Libra: 2.1 kg


• Operating temperature: -40°C to +60°C


• Dimensions (W x H x D): 290 x 170 x 80 mm


• Humidity: Maximum 95% (non-condensing)


• Security: IP22

is a robust, modular solution for anyone needing a safe and efficient DC power distribution solution for multi-battery installations. Thanks to its flexibility and compatibility with other systems, Victron Energy, this device ensures easy installation and seamless integration. Its rugged design and ability to handle high power loads make it Lynx Power In a reliable choice for systems requiring the highest quality energy management.
