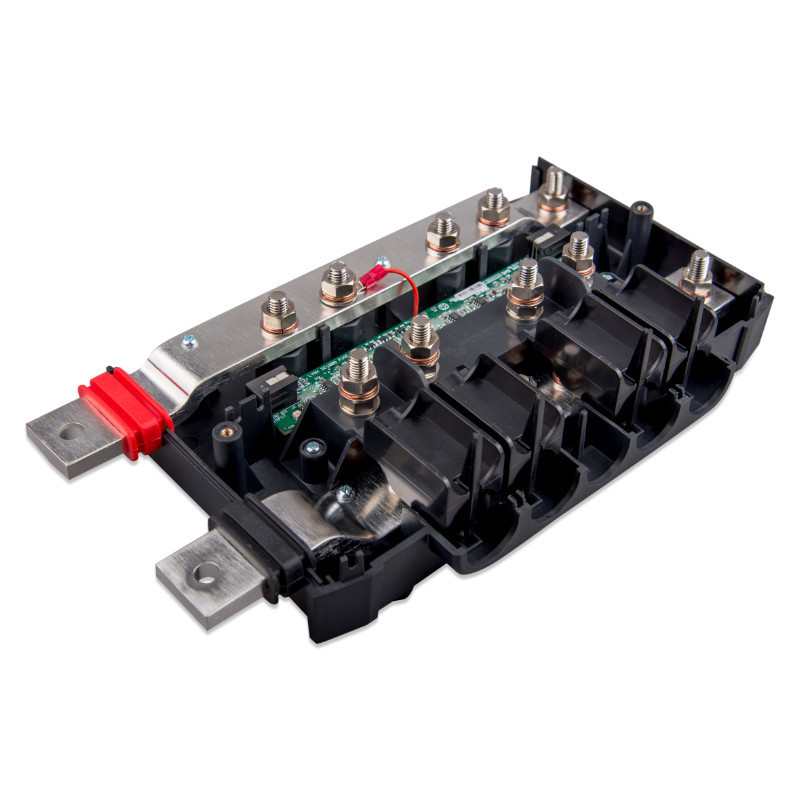

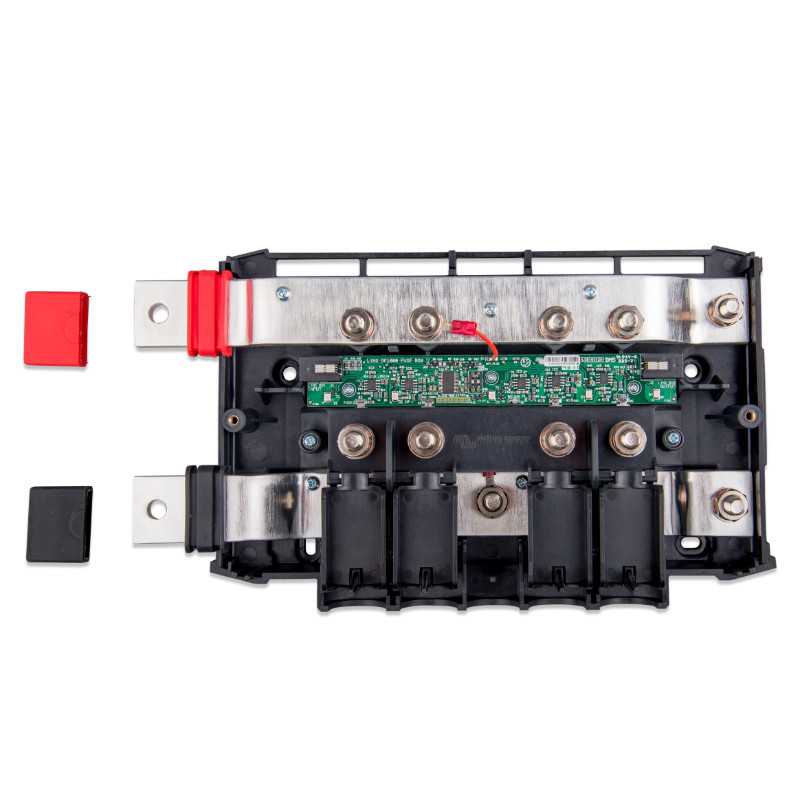

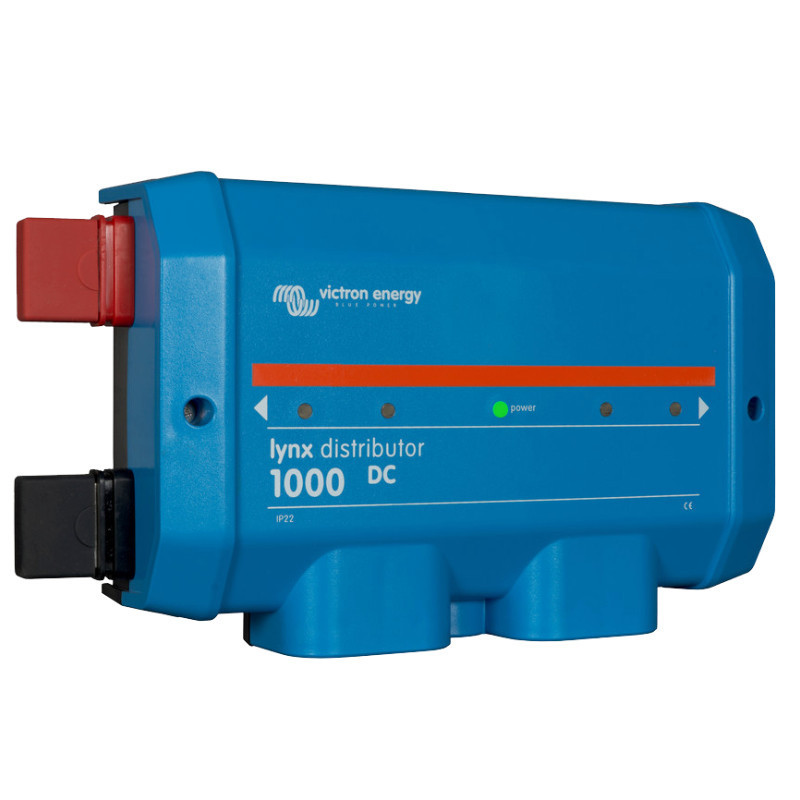

Lynx Distributor (M10)

is an exceptionally advanced DC power distribution module, created by a renowned brand Victron Energy Designed for maximum reliability, it enables safe and efficient distribution of battery power to various devices, such as inverters and other DC loads. Its modular design allows for flexible power management in the most demanding installations, making it an indispensable component of any advanced energy system. With the ability to support up to four DC outputs with positive and negative voltage paths, Lynx Distributor provides full control over energy flow, allowing for efficient power distribution in complex configurations.
A key element of this device is its ability to monitor fuse status. Each of the four outputs can be protected by fuses of the following types: MegaFuse, which protect the installation against overloads. The status of each fuse is monitored via LEDs located on the front of the housing, allowing for quick and easy verification of their operation. This allows the user to immediately respond to any power flow issues, ensuring system continuity. Lynx Distributor integrates perfectly with other system components Victron, such as Lynx Power In, which allows for trouble-free operation and management of even the most complex energy installations.

Reliability and Ease of Installation

is a device with an exceptionally durable construction, made of high-quality materials, ensuring longevity and resistance to harsh environmental conditions. Its housing is made of ABS It is resistant to corrosion and mechanical damage, making it ideal for use in demanding environments, such as industrial, marine, and outdoor installations. Additionally, the device supports currents up to 1000 A and voltages up to 60 V, allowing it to support systems with high energy requirements.
Lynx Distributor it is equipped with connectors M10, which enables quick and safe cable connection, simplifying installation and subsequent system maintenance. Its design allows for easy integration with other system components. Victron Energy, allowing the user to seamlessly expand their installation with additional modules. The ability to connect additional components provides flexibility and scalability of the system, which is invaluable in situations where energy needs grow. Thanks to this approach, Lynx Distributor becomes not only a tool for energy distribution, but also a key element enabling advanced energy management throughout the system.

Advanced Monitoring and Security Features

One of the greatest advantages Lynx Distributor (M10) Advanced safety monitoring is provided. By monitoring the status of each fuse, users can be sure their energy system is operating without disruption. LED fuse status indicators are an extremely useful feature that eliminates the need to manually check each component, significantly saving time and minimizing the risk of failure. Lynx Distributor allows you to connect up to four different devices, providing them with independent protection against overloads, which increases the security level of the entire system.
High performance and reliability Lynx Distributor make it an ideal choice for installations that require constant monitoring and optimization of energy flow. Its ability to operate in a wide temperature range, from -40°C to +60°C, makes this device suitable for even the most extreme conditions. Additionally, the level of protection IP22 ensures adequate resistance to moisture, which makes it an irreplaceable solution in installations exposed to changing weather conditions.

Technical Specifications

• Operating voltage range: 9 - 60 VDC


• Maximum load current: 1000 A


• Connection method: BusBar M10


• Possibility of adding modules: Yes


• Material of manufacture: ABS


• Libra: 2.1 kg


• Operating temperature: -40°C to +60°C


• Dimensions (W x H x D): 290 x 170 x 80 mm


• Humidity: Maximum 95% (non-condensing)


• Security: IP22

is a versatile power distributor that ensures safe and efficient power distribution in complex energy systems. Its durable design, advanced monitoring features, and integration with other devices are key features. Victron Energy make it an ideal solution for those looking for efficient and reliable energy management solutions. Lynx Distributor is a device that can be easily adapted to various energy needs, offering the user full control over energy distribution and ensuring safe operation in the most demanding conditions.
