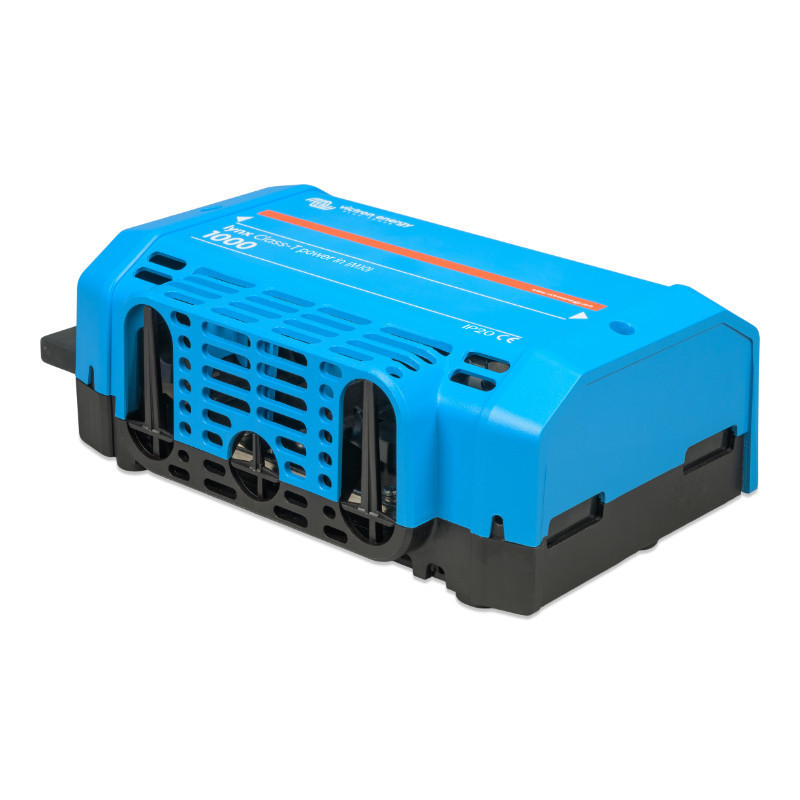

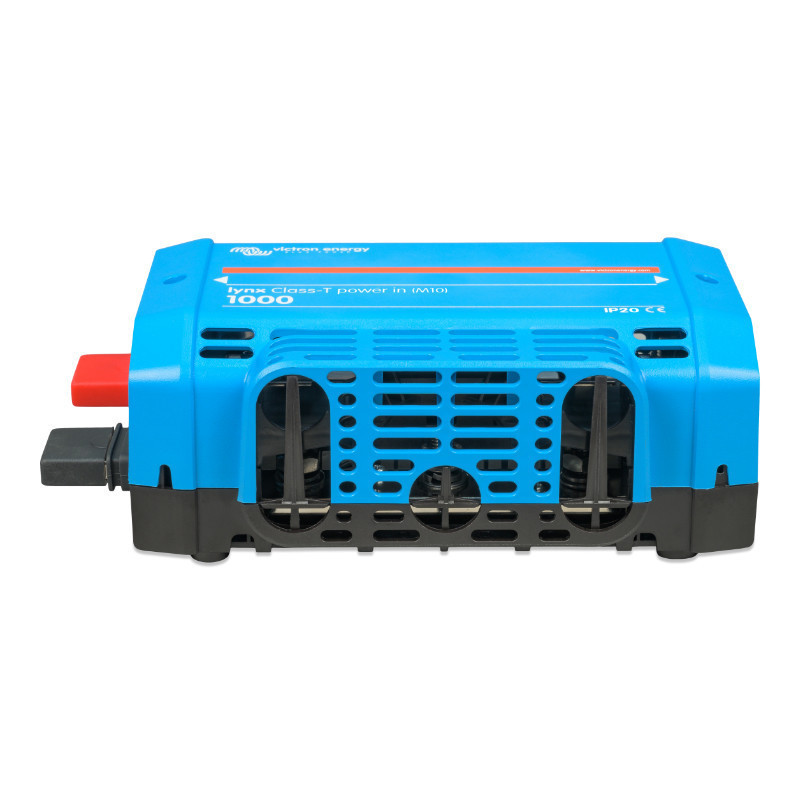

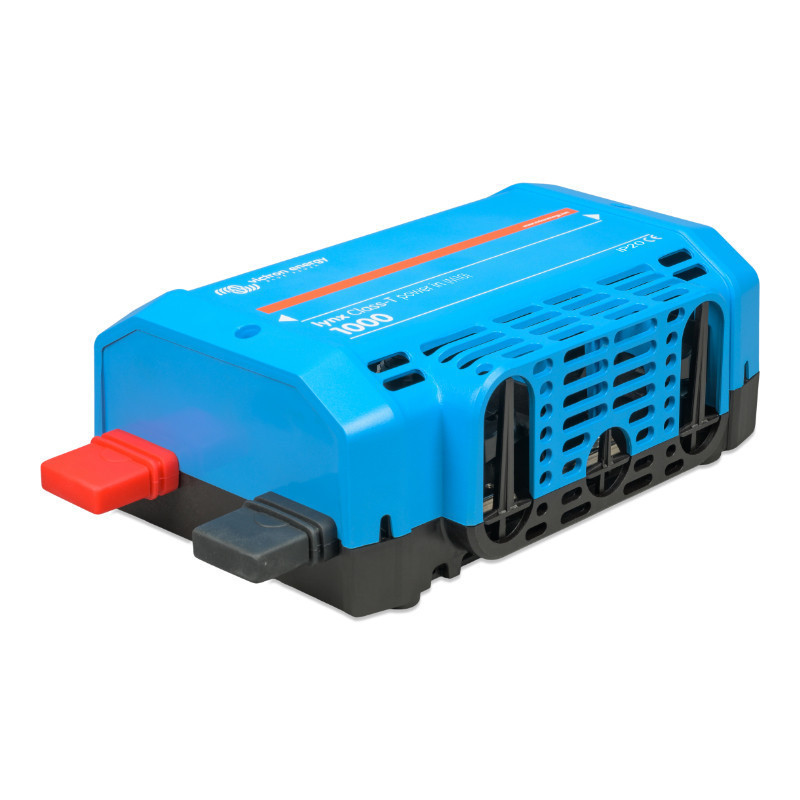

Lynx Class-T Power In (M10)

brands Victron Energy Designed for the most demanding energy management systems, this solution enables the safe connection of up to two lithium battery strings, making it an ideal choice for complex energy installations. High quality workmanship and solid construction guarantee reliability, even in difficult operating conditions. Thanks to the use of corrosion- and damage-resistant materials, Lynx Class-T Power In is durable and designed for long-term operation without the need for frequent maintenance.

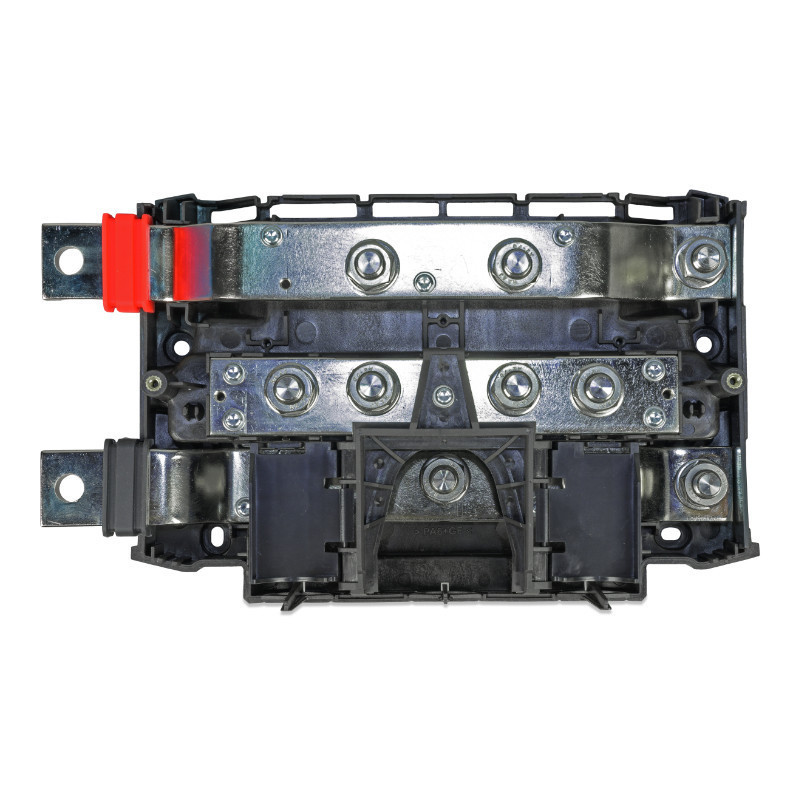

The device is equipped with positive and negative busbar, which allow for optimal power distribution within the system, as well as connections for two Class T fuses, which additionally protect the entire system. These fuses must be purchased separately, allowing their values to be adjusted to the specific needs of the installation. M10 connectors make it easier to connect cables, which translates into quick and trouble-free installation. Ease of integration with other products in the M10 Lynx series, the Lynx Class-T Power In perfectly complements other system components, ensuring consistency and high energy efficiency.

Reliable and efficient energy distribution

it is also part of a modular system Victron Energy energy management, enabling effective monitoring and optimization of energy distribution in complex installations. The device can be mounted in any orientation, providing great flexibility in its placement within the system, and the included special stickers allow for legibility even when mounted upside down. This is a key element in systems where space savings and easy maintenance are key.
Thanks advanced energy management and robust Class-T fuse connections, Lynx Class-T Power In not only protects the system from overloads but also optimizes lithium battery operation, allowing for longer and safer power use in off-grid or hybrid installations. The system can be expanded with additional modules, enabling the support of more battery strings in more complex systems.

Technical specifications

• Model: Lynx Class-T Power In (M10)


• Operating voltage range: 9 - 60 VDC


• Maximum load current: 1000 A


• Busbar: M10


• Fuses: 3/8"


• Material of manufacture: ABS


• Libra: 2.1 kg


• Busbar material: Tinned copper


• Busbar dimensions (height x width): 8 x 30 mm


• Operating temperature: -40°C to +60°C


• Dimensions (W x H x D): 279 x 169 x 97 mm


• Humidity: 95%


• Security: IP20

is a reliable solution for energy management systems, offering both ease of installation and advanced protection features. Victron Energy It not only ensures high-quality workmanship but also allows for easy integration with other Lynx modules, making it an excellent choice for professional energy systems. The system's modular nature allows for flexible adaptation to user needs, ensuring long-term and safe operation.
