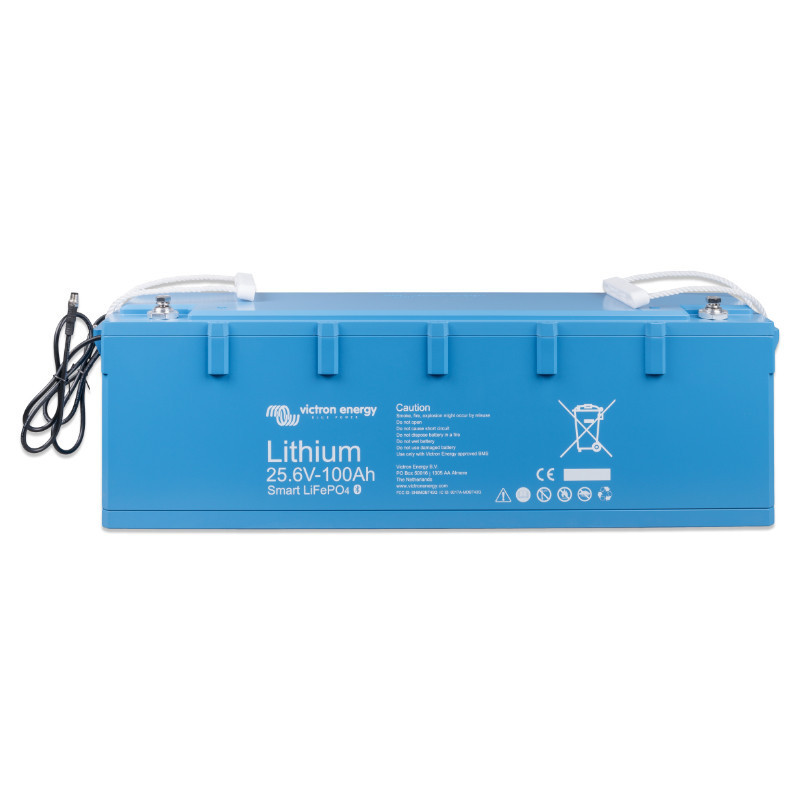

LiFePO4 Battery 25.6V / 100Ah - Smart

Battery Victron Energy LiFePO4 25.6V/100Ah Smart This technologically advanced device meets the needs of both stationary and mobile users. Utilizing one of the most efficient technologies on the market—lithium iron phosphate (LiFePO4)—this battery offers impressive performance that is suitable for a wide range of applications, from power systems in campers and boats to solar installations. What makes this model stand out? Advanced Battery Management System (BMS), which constantly monitors the battery condition and protects it against overheating, overcharging and excessive discharge, ensuring uninterrupted operation in all conditions. Thanks to the built-in module Smart Bluetooth, users can easily manage and monitor the battery status from their smartphone or tablet. VictronConnect provides full insight into operating parameters, charge level and usage history, which significantly improves the comfort of using the battery.
One of the key advantages of this battery is its compact and lightweight design This makes it much easier to install and transport than traditional lead-acid batteries. This makes the battery Victron Energy LiFePO4 becomes a perfect solution for mobile users, such as campervan or boat owners, where space and weight are key. Despite its smaller size, it offers high energy efficiency and is capable of delivering large amounts of energy, making it an ideal solution for solar systems as well. This battery can be charged and discharged in just 30 minutes, making its operation extremely dynamic and reliable.

High energy efficiency

Battery Victron Energy LiFePO4 25.6V/100Ah Smart is a solution for those who value efficiency and reliability. Its technology LiFePO4 It offers exceptionally low energy loss, meaning more usable energy can be extracted from each charging cycle than traditional solutions. This makes it ideal for applications where maximum utilization of available energy is crucial, such as solar installations, campers, and emergency power supplies. Charging speed of this battery is at an exceptionally high level - even large receivers can be connected without fear of charging too quickly, which ensures that the battery will work reliably in all conditions.
Technology LiFePO4 it's not only performance, but also safety. Battery Victron Energy provides high resistance to overheating and minimal risk of explosion, making it one of the safest batteries available on the market. Additionally, the production and recycling process is significantly less harmful to the environment compared to traditional lead-acid batteries, making it a more eco-friendly choice. Furthermore, its cycle life is up to 5000 cycles ensures long service life and minimizes the need for frequent replacement, which in turn translates into lower operating costs.

Technical specifications

• Nominal voltage: 25.6V


• Nominal capacity @ 25°C: 100 Ah


• Nominal capacity @ 0°C: 80 Ah


• Nominal capacity @ -20°C: 50 Ah


• Nominal energy @ 25°C: 2560 Wh

Cycle life (efficiency ≥ 80% of nominal)

• 80% DoD: 2500 cycles


• 70% DoD: 3000 cycles


• 50% DoD: 5000 cycles

Discharge

• Maximum continuous discharge current: 200 A


• Recommended continuous discharge current: ≤100 A


• End of discharge voltage: 22.4V


• Internal resistance: 1.6 mΩ

Operating conditions

• Operating temperature:



  • Discharge: -20°C to +50°C


  • Charging: +5°C to +50°C






• Storage temperature: -45°C to +70°C


• Humidity (non-condensing): max. 95%


• Protection class: IP 22

Landing

• Charging voltage: Between 14V/28V and 14.4V/28.8V (14.2V/28.4V recommended)


• Float voltage: 13.5V/27V


• Maximum charging current: 200 A


• Recommended loading current: ≤50 A

Other

• Maximum storage time at 25°C: 1 year


• Connection to BMS: Male + female cable with M8 round connector, length 50 cm


• Power connection (threaded inserts): M8


• Dimensions (H x W x D): 197 x 650 x 163 mm


• Libra: 28 kg

Battery Victron Energy LiFePO4 25.6V/100Ah Smart This innovative solution combines the latest technologies with unparalleled performance and safety. With its advanced battery management system, built-in Bluetooth, and exceptional durability, it's the perfect choice for both mobile and stationary users. Compact, lightweight, and incredibly efficient, this battery ensures long-lasting and reliable operation in a variety of power applications. If you're looking for a modern, safe, and efficient battery, look no further. Victron Energy LiFePO4 will meet your expectations at the highest level.
