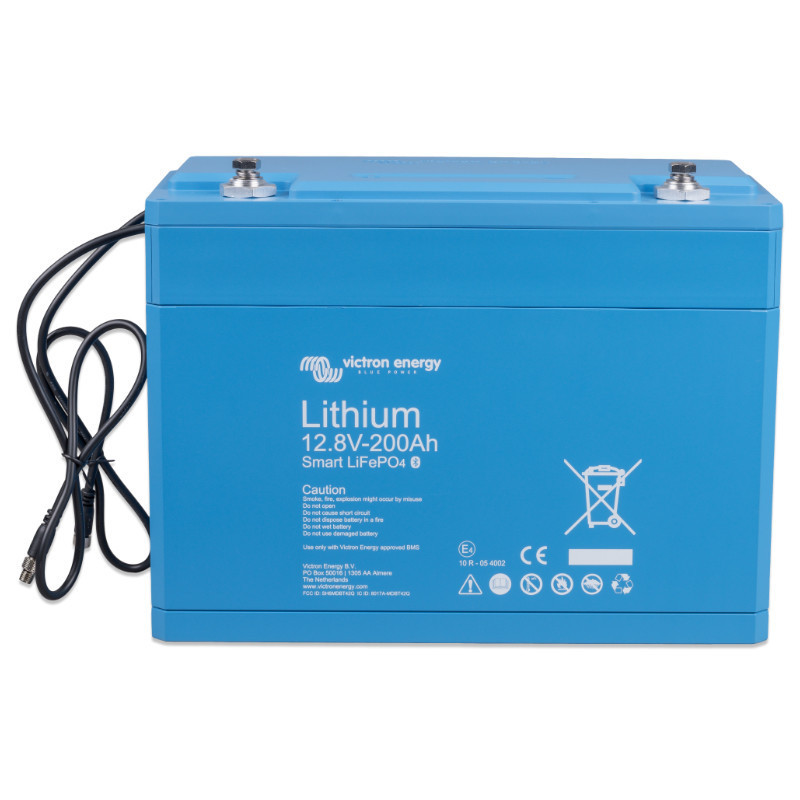

LiFePO4 Battery 12.8V / 200Ah - Smart

Battery Victron Energy LiFePO4 12.8V/200Ah Smart This advanced solution meets the highest requirements for energy efficiency, durability, and safety. Utilizing lithium iron phosphate (LiFePO4) technology, this battery boasts exceptionally long life and stable operation, even under extreme conditions. Its nominal capacity is 200Ah at a voltage of 12.8V makes it an ideal choice for applications requiring high power with minimal energy loss. Furthermore, thanks to advanced battery management system (BMS), the battery is protected against overcharging, over-discharging, overheating, and short circuits. This management system provides maximum protection and extends the battery life, making it ideal for mobile applications such as campers, boats, and stationary solar systems.
Thanks built-in Bluetooth module, users can monitor and control the battery charge status and its operation history via a smartphone or tablet using an intuitive application VictronConnect This app provides easy access to battery operating data, making it easier to manage energy in both solar systems and other energy solutions. Light and compact design The battery's design makes it much easier to install and transport than traditional lead-acid batteries. Yet, it offers exceptionally high performance, making it the ideal choice for users who demand reliability, long life, and efficiency.

Excellent energy efficiency

Battery Victron Energy LiFePO4 12.8V/200Ah Smart It offers not only high capacity but also exceptional energy efficiency. Thanks to innovative LiFePO4 technology, this battery minimizes energy loss during charging and discharging, meaning every unit of energy is used as efficiently as possible. Fast charging time allows you to charge the battery in just 30 minutes, ensuring quick power replenishment, even in the most demanding conditions. The ability to connect large solar panels and receivers without the risk of overcharging makes this model ideal for both stationary and mobile use.
Lithium iron phosphate batteries, such as Victron Energy LiFePO4, are known for their unmatched durability. With a cycle life of up to 5000 cycles at 50% discharge, this battery can last for many years, significantly reducing operating costs. This solution is not only efficient but also safe - LiFePO4 technology ensures the battery is resistant to overheating and the risk of explosion is virtually zero. This means users can be confident that their power system will operate reliably for a long time, regardless of operating conditions.

Technical specifications

• Nominal voltage: 12.8V


• Nominal capacity @ 25°C: 200 Ah


• Nominal capacity @ 0°C: 160 Ah


• Nominal capacity @ -20°C: 100 Ah


• Nominal energy @ 25°C: 2560 Wh

Cycle life (efficiency ≥ 80% of nominal)

• 80% DoD: 2500 cycles


• 70% DoD: 3000 cycles


• 50% DoD: 5000 cycles

Discharge

• Maximum continuous discharge current: 400 A


• Recommended continuous discharge current: ≤200 A


• End of discharge voltage: 11.2V


• Internal resistance: 0.8 mΩ

Operating conditions

• Operating temperature:



  • Discharge: -20°C to +50°C


  • Charging: +5°C to +50°C






• Storage temperature: -45°C to +70°C


• Humidity (non-condensing): max. 95%


• Protection class: IP 22

Landing

• Charging voltage: Between 14V/28V and 14.4V/28.8V (14.2V/28.4V recommended)


• Float voltage: 13.5V/27V


• Maximum charging current: 400 A


• Recommended loading current: ≤100 A

Other

• Maximum storage time at 25°C: 1 year


• Connection to BMS: Male + female cable with M8 round connector, length 50 cm


• Power connection (threaded inserts): M8


• Dimensions (H x W x D): 237 x 321 x 152 mm


• Libra: 20 kg


• Guarantee: 3 years

Battery Victron Energy LiFePO4 12.8V/200Ah Smart This battery is a unique combination of reliability, efficiency, and safety. Thanks to advanced BMS technology, a compact design, and exceptional cycle life, it's the ideal solution for a wide range of applications. If you need a reliable, high-performance, long-life energy source, this battery will meet all your expectations. It's an excellent choice for mobile and stationary systems, delivering maximum power with minimal losses.
