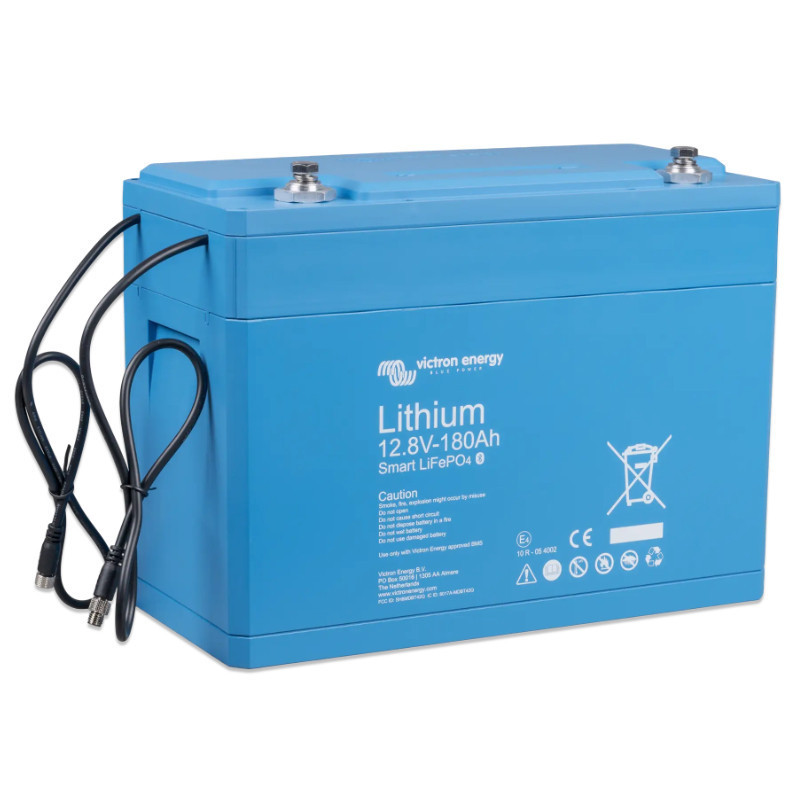

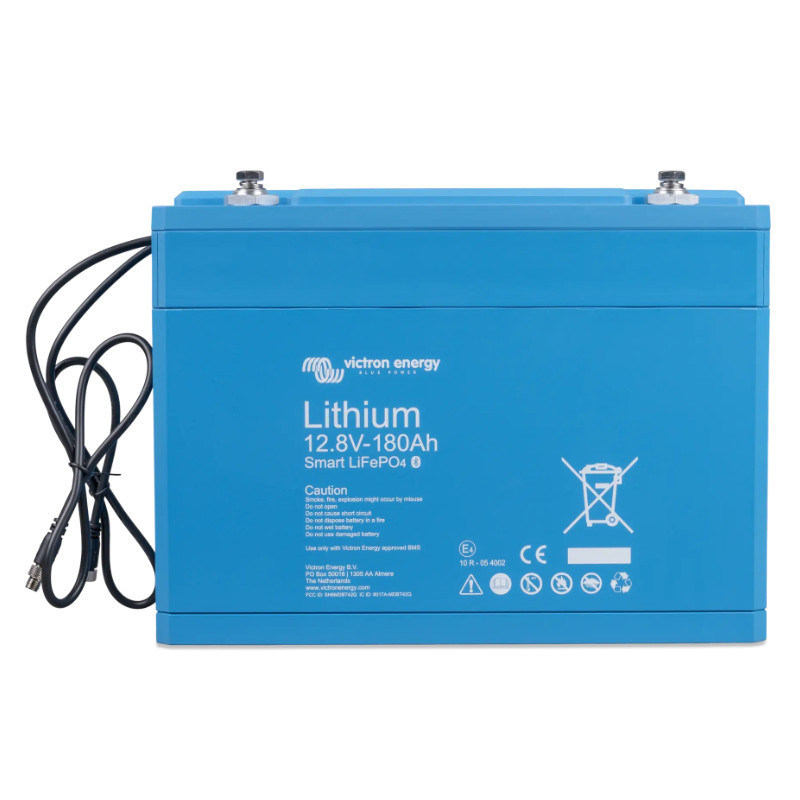

LiFePO4 battery 12.8V / 180Ah - Smart
Product reference: 39-8719076060260

The Victron LiFePO Battery 12.8 V/180 Ah - Smart is an advanced lithium-iron-phosphate battery with a nominal capacity of 180 Ah. It is equipped with a Bluetooth module, enabling battery status monitoring (voltage, temperature) via an app. An optional BMS ensures complete control and safe operation.

LiFePO4 battery 12.8V / 180Ah - Smart
LiFePO4 battery 12.8V / 180Ah - Smart
LiFePO4 battery 12.8V / 180Ah - Smart
LiFePO4 battery 12.8V / 180Ah - Smart

LiFePO4 battery 12.8V / 180Ah - Smart

Product reference: 39-8719076060260

The Victron LiFePO Battery 12.8 V/180 Ah - Smart is an advanced lithium-iron-phosphate battery with a nominal capacity of 180 Ah. It is equipped with a Bluetooth module, enabling battery status monitoring (voltage, temperature) via an app. An optional BMS ensures complete control and safe operation.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
702,29 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

LiFePO4 Smart 180Ah 12V battery





Battery Management (BMS)


The battery is equipped with an advanced battery management system (BMS) that protects against overcharging, deep discharge, overheating and short circuiting.


Smart Bluetooth


Built-in Bluetooth module allows remote battery monitoring via app VictronConnect on your smartphone or tablet - check the charging status, history and operating parameters.


Compact design


LiFePO is significantly lighter than traditional AGM/GEL batteries. Ideal for campers, boats, off-grid, and mobile installations.

Exceptional durability and performance


Lithium iron phosphate (LiFePO ) technology allows for obtaining more than 3000 cycles at 80% DoD, which translates into many years of operation without any performance loss - several times more than in the case of AGM/GEL batteries.

Possibility of combining and scaling


Batteries can be safely connected in series (higher voltage) or parallel (larger capacity) - Up to 20 units in a single bank. Perfect for 12V, 24V, and 48V systems.

Energy efficiency


LiFePO from Victron Energy provides exceptional charge and discharge efficiency, which minimizes losses and maximizes energy availability - in both mobile and stationary systems.

Safety and environment


LiFePO technology is one of the the safest lithium technologies available on the market. Overheating resistance, no gases, low fire risk, and high recyclability make it an eco-friendly choice for years to come.



Main features:



  • Capacity: 180 Ah - a lot of energy in a compact form.

  • Technology: LiFePO - durability, safety, no risk of ignition.

  • Bluetooth Smart - monitor from your phone with VictronConnect.

  • Built-in BMS - automatic balancing and cell protection.

  • 3000+ cycles at 80% DoD - exceptional durability.

  • Combining up to 20 pieces - serialization or parallel connection of banks.

  • Efficiency up to 92% - more energy from each cycle.

  • Ultralight housing - easy assembly, less weight.

  • Wide temperature range - resistance to terrain conditions.




Technical specifications:



  • Parameters / Model: Victron Energy 180Ah LiFePO4

  • Nominal voltage: 12.8V

  • Nominal capacity @ 25°C: 180 Ah

  • Nominal capacity @ 0°C: 150 Ah

  • Nominal capacity @ -20°C: 90 Ah

  • Nominal energy @ 25°C: 2304 Wh


Cyclic life (efficiency ≥ 80%)



  • 80% DoD: 2500 cycles

  • 70% DoD: 3000 cycles

  • 50% DoD: 5000 cycles


Discharge



  • Maximum continuous discharge current: 360 A

  • Recommended continuous discharge current: ≤180 A

  • End of discharge voltage: 11.2V

  • Internal resistance: 0.9 mΩ


Operating conditions



  • Operating temperature: Discharge: -20°C to +50°C, Charging: +5°C to +50°C

  • Storage temperature: -45°C to +70°C

  • Humidity (non-condensing): Max 95%

  • Protection class: IP22


Landing



  • Charging voltage: 14V - 14.4V (14.2V recommended)

  • Float voltage: 13.5V

  • Maximum charging current: 360 A

  • Recommended charging current: ≤90 A


Other



  • Maximum storage time at 25°C: 1 year

  • Connection to BMS: Male + female cable with M8 round connector (50 cm)

  • Power connection: M8 threaded inserts

  • Dimensions (H x W x D): 237 × 321 × 152 mm

  • Libra: 18 kg
