LiFePO4 Battery 12.8V / 100Ah NG
Product reference: 39-8719076058892

The Victron Energy Lithium NG (Next Generation) is an advanced LiFePO4 battery with IP65 protection and a nominal voltage of 12.8V. With the ability to connect in series, parallel, and series-parallel, it enables the construction of flexible systems with voltages of 12V, 24V, or 48V. A maximum of 50 batteries can be connected, allowing for an energy storage capacity of up to 192kWh. They require the use of the advanced Lynx Smart BMS NG battery management system.

LiFePO4 Battery 12.8V / 100Ah NG
LiFePO4 Battery 12.8V / 100Ah NG
LiFePO4 Battery 12.8V / 100Ah NG

LiFePO4 Battery 12.8V / 100Ah NG

Product reference: 39-8719076058892

The Victron Energy Lithium NG (Next Generation) is an advanced LiFePO4 battery with IP65 protection and a nominal voltage of 12.8V. With the ability to connect in series, parallel, and series-parallel, it enables the construction of flexible systems with voltages of 12V, 24V, or 48V. A maximum of 50 batteries can be connected, allowing for an energy storage capacity of up to 192kWh. They require the use of the advanced Lynx Smart BMS NG battery management system.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
545,65 €
Last product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*
Battery Victron Energy 12.8V 100Ah LiFePO4 NG
The battery is used in devices with a power and power consumption of 1% per 100 cycles at the power supply (100% DoD). High power and power consumption (92%) ensures safe use of electricity. Impressive cyclic performance (up to 5,000 cycles at 50% DoD) ensures the device is proven in long-term applications.
The battery supports management via an external BMS system Lynx Smart BMS NG
The IP65 housing protects against dust and water, making it resistant to harsh conditions. Its ability to operate over a wide temperature range (-20°C to +50°C when connected) and its low self-discharge (≤ 3% monthly) make it suitable for use in laboratory environments.
The product meets safety standards such as UL1973, UL9540A, and IEC62619, as well as automotive and electromagnetic compatibility (EMC) standards. It is compatible with software updates and service options.

Specification:



  • Nominal voltage: 12.8V

  • Nominal capacity (at 25°C): 100

  • Nominal energy (at 25°C): 1280 Wh

  • Maximum capacity: < 1% out of 100

  • Energy loss: < 1% per 100 cycles

  • Charge/discharge cycle efficiency: 92%


Cycle life



  • 80% Up to: 2500 cycles

  • 70% Up to: 300

  • 50% Up to: 500


Parameters



  • Maximum continuous electric current: 100 A (1C)

  • Maximum impulse electric current (10s): 200 A (

  • Final exhaustion voltage: 11.2V

  • Internal resistance: 2 million


Charging parameters:



  • Charging voltage: May 14 - 14

  • Floating voltage: 13.5V

  • Maximum charging current: 100 A (1C)

  • Maximum pulse charging current (10s): 200 A (2C)


Battery Management System (BMS):



  • BMS: Lynx Smart BMS NG 500 A / 1000 A (M10 rails) - separate purchase required

  • Measurement: temperature and cell temperature, electric current

  • Interface: M8 cable (male and female), length 50 cm (extendable)

  • Alarm function: pre-alarm contact in BMS

  • Bluetooth: connected to BMS

  • Maximum number of batteries in one BMS: 50 (384 kWh in one BMS)

  • Software updates: automatic by BMS

  • Repairability: Yes (cover can be applied with a screw)


Working conditions:



  • Operating temperature:

    • Discharge: -20°C to +50°C

    • Charging: +5°C to +50°C



  • Storage temperature: -45°C to +70°C

  • Humidity: Max 95% (non-condensing)

  • Protection class: IP65

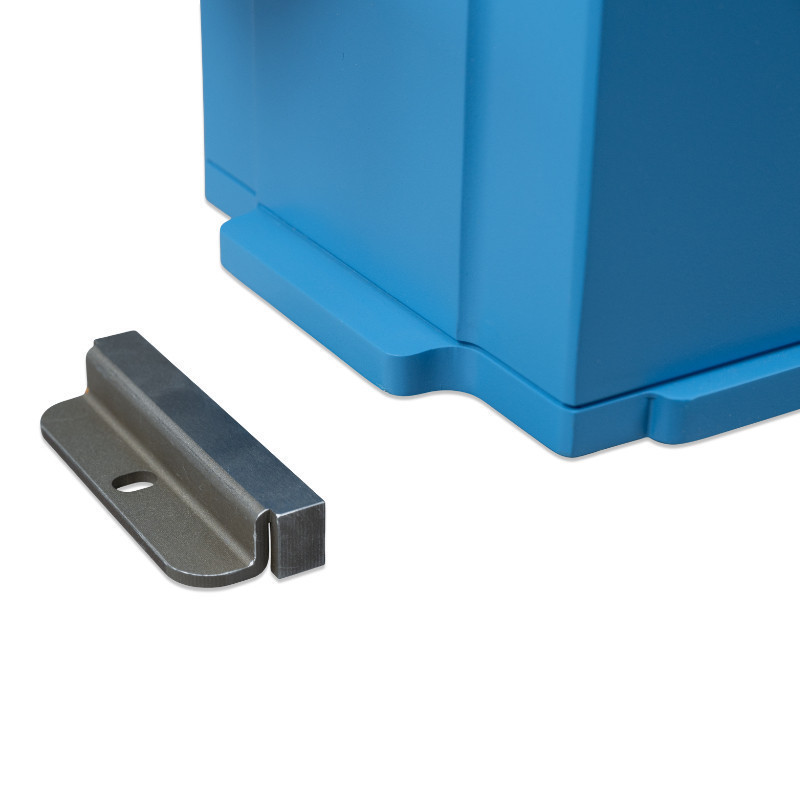

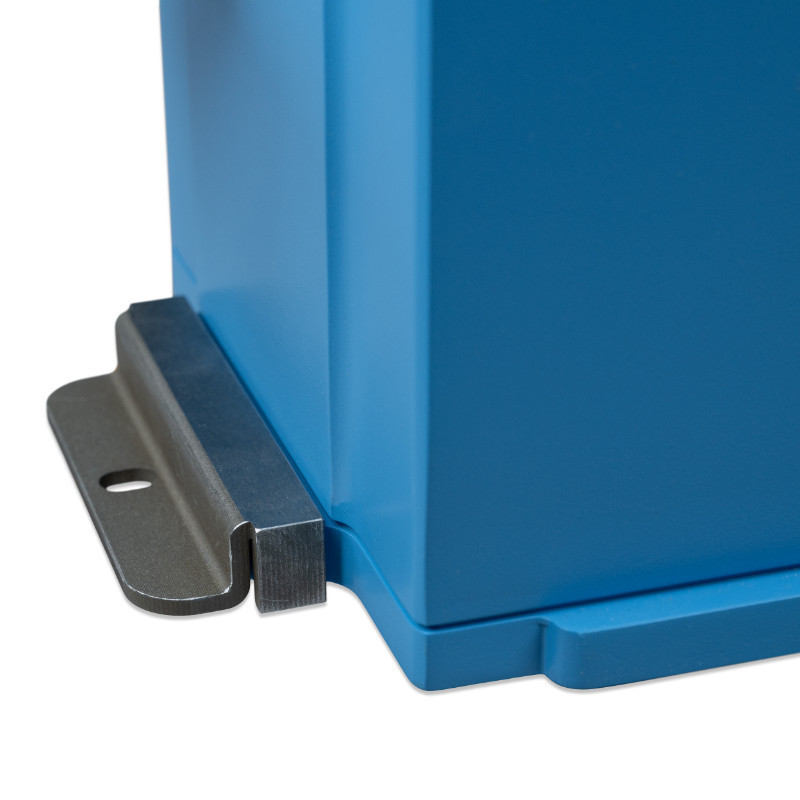

Installation:



  • Options: strap or mounting brackets

  • Possibility of mounting on the sides: Yes


Other information:



  • Self-discharge rate: ≤ 3% per month (at 25°C)

  • Power connector: M8 (threaded inserts and screws)

  • Dimensions: 235 x 197 x 160 mm

  • Libra: 9 kg


Certificates and standards:



  • Cell safety: UL1973, UL9540A, IEC62619

  • Battery: IEC 62619 (in progress)

  • EMC: EN 61000-6-3, EN 61000-6-2

  • Automotive: ECE R10-6 (in progress)

  • Efficiency: IEC 62620 (in progress)






Victron Energy 12.8V 100Ah LiFePO4 NG battery this from An advanced battery management system (BMS) with monitoring software, enhanced software, and load protection, enhanced security, and access control. Its robust design, IP65 waterproof housing, and compliance with specific safety standards make the battery an ideal solution for electrical devices connected to a variety of environmental conditions.
