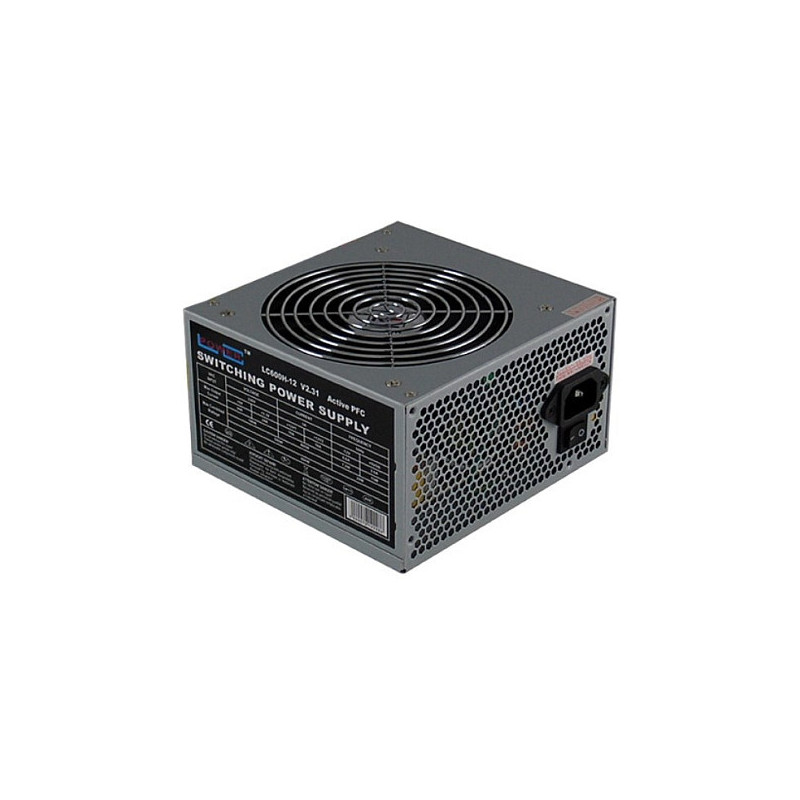

LC-Power LC600H-12 V2.31 power supply unit

LC-Power LC600H-12 V2.31. Total power: 600 W, Power Factor Correction (PFC) type: Active, Max output current (+3.3V): 24 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CE

The OFFICE SERIES by LC-POWER offers a good price-performance ratio: thanks to its 120mm fan, the LC600H-12 V2.31 lets you experience a stress-free and silent work in your office as well as at home. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its honey-comb styled ventilation grille on its back. The power supply features all relevant connectors of the office sector.

600W max. / peak

120mm fan

1x PCI-Express 6 pin & 1x PCI-Express 6+2 pin

Incl. Active PFC (power factor correction for an efficient use of the spent energy) and all relevant safety circuitry

Power

Total power: 600 W
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 24 A
Max output current (+12V1): 20 A
Max output current (+12V2): 20 A
Max output current (+5V): 24 A
Power protection features: Over power, Over voltage, Short circuit, Under current

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Number of PATA power connectors: 3
PCI Express power connectors (6-pin): 1
PCI Express power connectors (6+2 pin): 1
Feature: CPU power connector (4+4 pin)
Floppy drive power connector: 2
Cabling type: Non-Modular

Performance

Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Certificates

Certification: CE

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.47 kg

Logistics data

Harmonized System (HS) code: 84733020
