Inverter MUST 2kW, 1-phase, DC12V, PURE SINUS

True sine wave inverter MUST EP3000 PLUS 2kW, single-phase, 12V, with integrated charger, from 35A to 70A.
Features:

• This inverter combines the functions of a true sine wave inverter and a battery charger to ensure uninterrupted power supply. Especially designed for devices with AC electric motors: refrigerators, heating boilers, air conditioners, automatic gate openers, and machine tools.

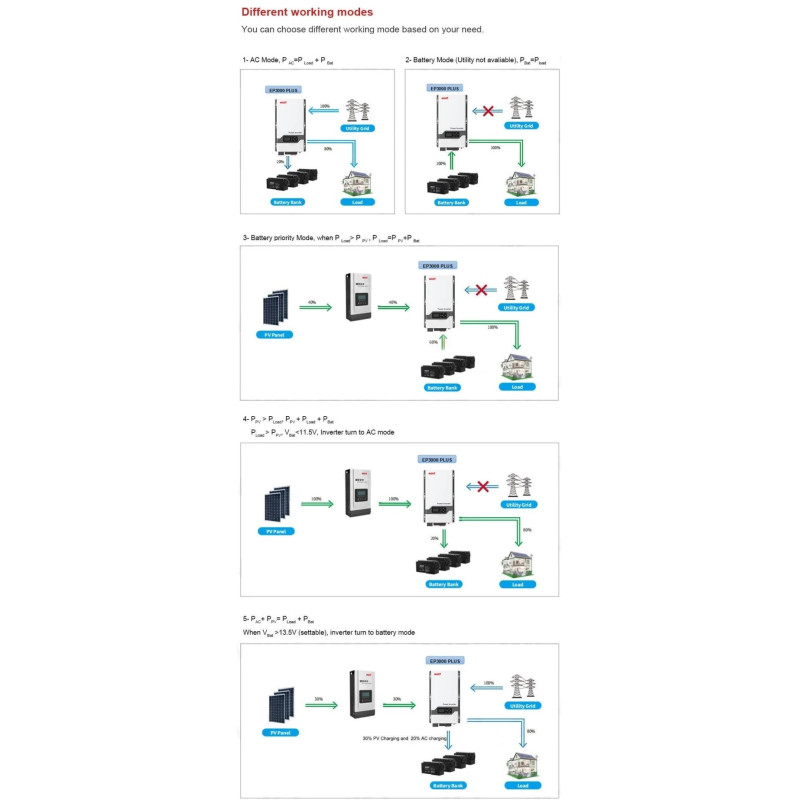

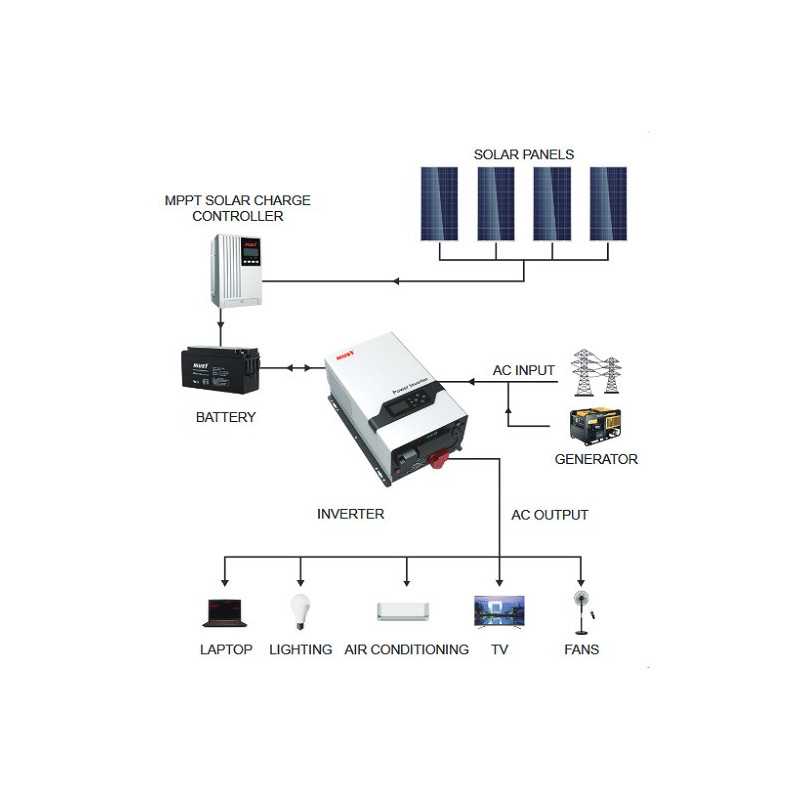

• Solar or AC priorities are set: kai PV priority, solar energy charges the batteries first; if PV energy is insufficient, AC can also charge the batteries. The system charges in the most optimal way.


• The pure copper conductor transformer allows the inverter to operate extremely efficiently.

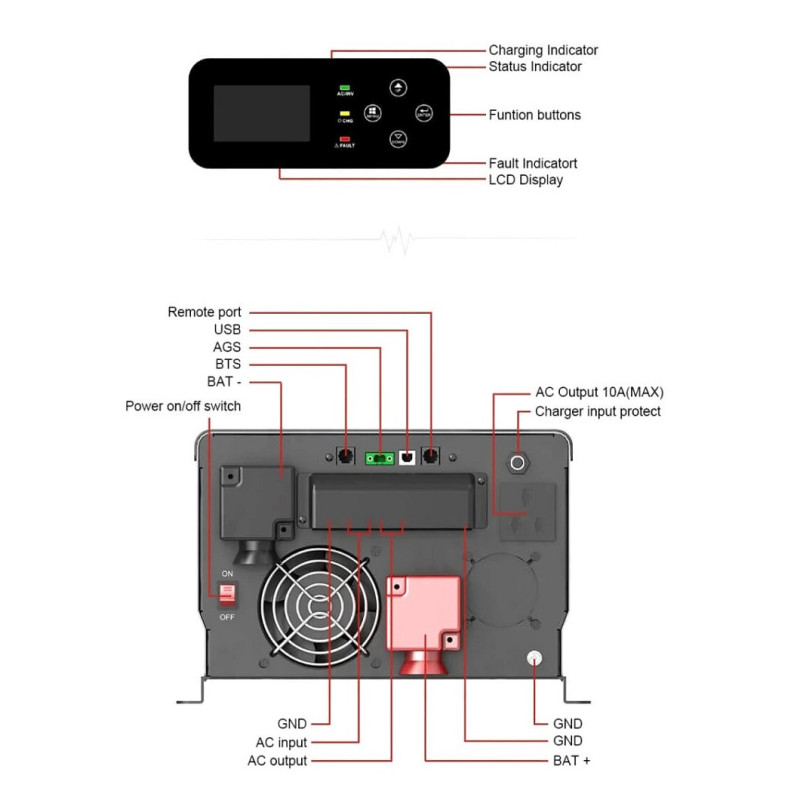

• User-friendly interface: The MDF (Multi-Function-Display) allows you to set operating parameters and priorities as needed.


• Nominal power 2kW.


• The charging voltage/current is set.


• Power/battery charging priorities are set.


• It is possible to set the low voltage battery shutdown point 10V/10.5V/11V.


• The inverter voltage can be set to 120V: 110V/115V/120V or 220V: 220V/230V/240V.


• The frequency can be set to 50/60 Hz.


• Overload and short circuit protection.


• Has a power saving mode.

Technical data:

• Battery voltage: DC12V.


• Nominal power: 2000W.


• Fuse tripping: at 6000VA.


• Waveform: true sinusoid.


• Switchover time: maks.10ms.


• Frequency: 50/60Hz, range: 40~80Hz.


• Nominal output voltage: AC 220V / 230V / 240V ±10% (RMS).


• Inverter efficiency: gt; 88%.


• Selectable voltage range: 96~132V AC 155~280V AC (for PC computers).


• Battery starting voltage: min 10V/ 10.5V/ 11V (+0.5V).


• Max. battery charging current: 60A.


• Noise level: max. 60dB.


• Display: LCD+LED.


• Operating temperature: 0°C ~ +40°C.


• Measurements: 423x247x197mm.


• Weight: 21.1kg.
