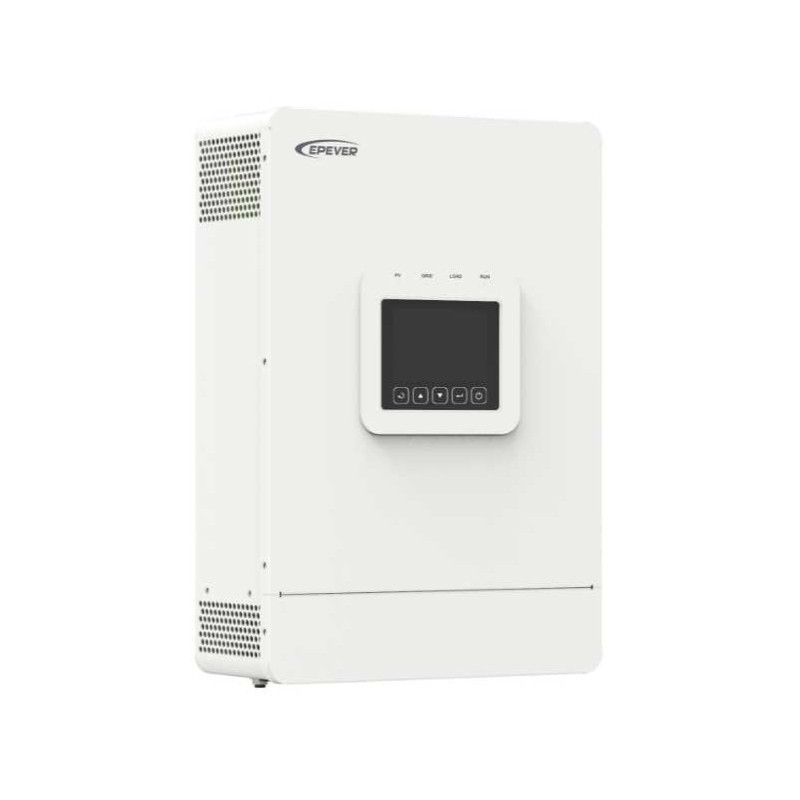

Inverter-charger with MPPT EPEVER QI 1000W 60A

Inverter-charger with MPPT EPEVER QI 1000W 60A

Inverter-charger EPEVER QI 1000W 60A is a compact device of the type 3-in-1, which integrates a pure sine wave inverter, MPPT charge controller, and a grid or generator charger. Designed for modern off-grid, mobile, and hybrid installations, it enables flexible management of energy from PV panels, batteries, AC grid, and generators. The EPEVER QI 1000W 60A MPPT inverter-charger is suitable for off-grid systems, campers, boats, small photovoltaic installations, summer homes, and anywhere else requiring a compact, intelligent multi-source energy management center.

The most important advantages

• Hybrid 3-in-1 — Combines a pure sine wave, MPPT charge controller
  , and AC charger into one device. Supports 12V batteries and the following operating modes:
  solar first, utility priority and solar + utility.


• High PV efficiency (MPPT > 99.5%) — effectively tracks the maximum power point,
  increasing energy yield even with variable sunlight and accelerating the charging of
  batteries in off-grid systems, campers and boats.


• Security and monitoring — protection against overcharging, discharging, overheating, and short circuits. A large color LCD display, RS485 interface, and optional Wi-Fi/4G/TCP modules enable convenient local and remote monitoring. The built-in logger allows you to store up to 25,000 data records.

Intelligent multi-source management

An advanced algorithm coordinates the flow of energy from the PV, battery, grid, and generator, reducing AC draw and increasing solar self-consumption. This ensures stable system operation even under variable load and weather conditions.

Supports multiple generators with auto start/stop

The device can automatically start and stop the generator when battery voltage drops or load increases. This saves fuel, reduces noise, and extends the generator's life.

Main features

• Pure sine wave on AC output


• Integrated energy storage system with multi-source management


• Operation with and without battery (battery / no-battery mode)


• Maximum MPPT tracking efficiency: > 99.5%


• Independent communication interface with the battery BMS


• Multiple generator support and automatic start/stop control


• Charge/discharge current limits adapted to different battery types (including lithium)


• Adjustable maximum charging current from the mains/generator - matching the available connection power


• 3-in-1: inverter + charger + MPPT controller


• Operating temperature range: −20 °C ~ +50 °C


• Historical data log with capacity of up to 25,000 records


• One-button AC output control


• Large color LCD display for real-time monitoring


• RS485 interface; optional 4G, Wi-Fi or TCP modules for remote monitoring


• Power saving mode and low voltage protection extend battery life

Key system functions

• Flexible charging from the network — AC current regulation prevents tripping of the
  protections and adjusts the power consumption to weaker connections (campsites, marinas, small generators).


• Independent interface with BMS — dedicated communication with the battery BMS ensures precise
  control of charging and discharging and improves the safety of lithium batteries.


• Wide operating temperature range -20 °C to +50 °C — the device is suitable for year-round stationary and mobile installations.


• Operation with and without battery — can power loads as a regulator/UPS with PV and AC
  even with the battery disconnected, which facilitates service and maintenance of the system.


• Extensive data logging (25,000 records) — enables detailed analysis
  of production, consumption and system operation over a longer period.


• Remote monitoring and integration — thanks to RS485 and optional 4G, Wi-Fi or TCP
  modules, you can easily integrate the device into your existing monitoring infrastructure.

Technical specifications

Parameters / Model

• Model: QI Series Inverter-Charger - QI1012-0610C

Battery

• Nominal battery voltage: 12V


• Battery operating voltage range: 10.6V ~ 16V

Utility Input

• Maximum charging current (DC): 90 A


• AC input - rated voltage: 220/230 VAC


• AC input - voltage range: 170 ~ 280V


• AC input - frequency: 45-65 Hz


• Rated input power (charging + bypass): 1.5 × rated output power


• Maximum charging current from AC: 60 ADC

Inverter output

• Rated output power: 1000 W


• Peak power (5 sec): 2 × rated power


• Output voltage: 220 VAC ± 3%


• Output frequency: 50 Hz


• Output voltage shape: pure sine wave


• Output voltage THD: ≤ 3% (resistive load)


• Soft start output: supported


• Switching time: ≤ 10 ms

Solar controller

• Max PV open circuit voltage (Voc): 95V


• Max MPPT tracking efficiency: > 99.5%


• MPPT voltage range: battery voltage +2V ~ 0.8 × Voc


• Number of MPPT trackers: 1


• Maximum PV charging current: 60 A

Other

• Operating temperature range: −20 °C ~ +50 °C


• Case: IP20


• Installation height (without derating): < 4000 m (above 2000 m - derating)


• Certifications: EN IEC 61000-6-2/-4; EN IEC 61000-3-2/-3; EN 61000-3-3; IEC 62109-1; IEC 62109-2


• Relative humidity: <95% (NC)


• Storage temperature: −25 °C ~ +60 °C


• Display: color LCD (EN interface)


• Dimensions (L × W × H): 265 × 380 × 110 mm


• Net weight: 8 kg
