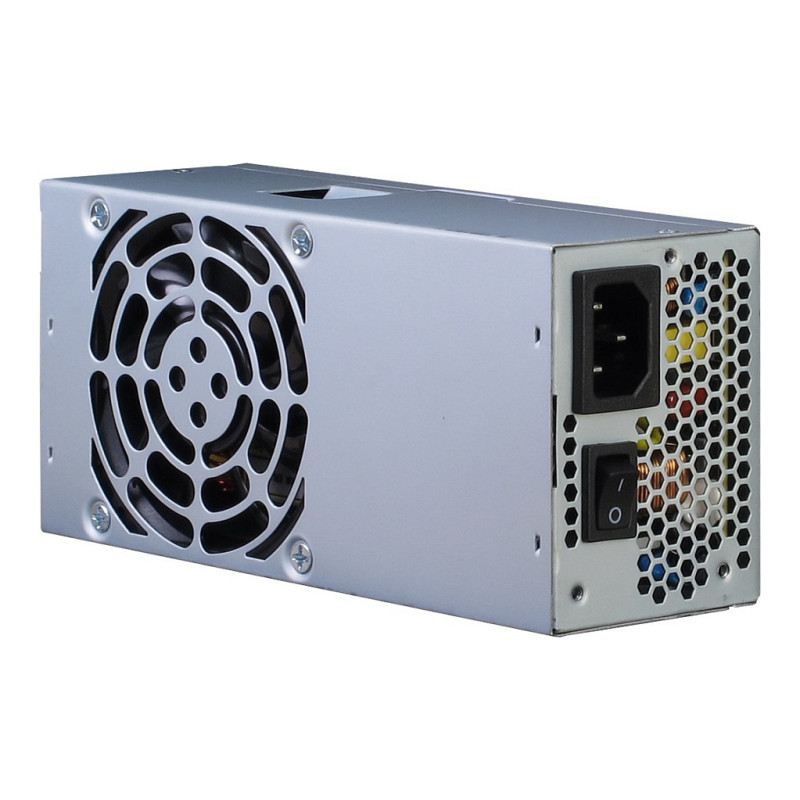

Inter-Tech TFX-350W power supply unit

Inter-Tech TFX-350W. Total power: 350 W, AC input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Grey, Fan diameter: 8 cm, Number of fans: 1 fan(s). Width: 85 mm, Depth: 175 mm, Height: 65 mm

The TFX-350W is the perfect TFX-PSU for Desktop-Systems with particular performance requirements.

The PSU convinces due to several connection options. It also offers a PCIe 6+2pin plug to supply a separate graphics card with higher power consumption.

With an efficiency of more than 82+, the TFX-350W has a positive impact on your wallet and protects the environment.

Power

Total power: 350 W
AC input voltage: 110 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 4 - 8 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 26.4 W
Combined power (+12V): 156 W
Combined power (+5V): 40 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 8 A
Max output current (+12V1): 13 A
Max output current (+12V2): 13 A
Max output current (+5V): 8 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 3
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 1
Feature: CPU power connector (4+4 pin)
Floppy drive power connector: 1

Performance

80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX

Design

Product colour: Grey
Fan diameter: 8 cm
Number of fans: 1 fan(s)

Weight & dimensions

Width: 85 mm
Depth: 175 mm
Height: 65 mm
Weight: 990 g

Logistics data

Harmonized System (HS) code: 84733020
