Inter-Tech HiPower SP-750CM power supply unit

Inter-Tech HiPower SP-750CM. Total power: 750 W, Max output current (+12V): 60 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Supported motherboard form factors: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Cables included: Peripheral (Molex) to SATA 3.3

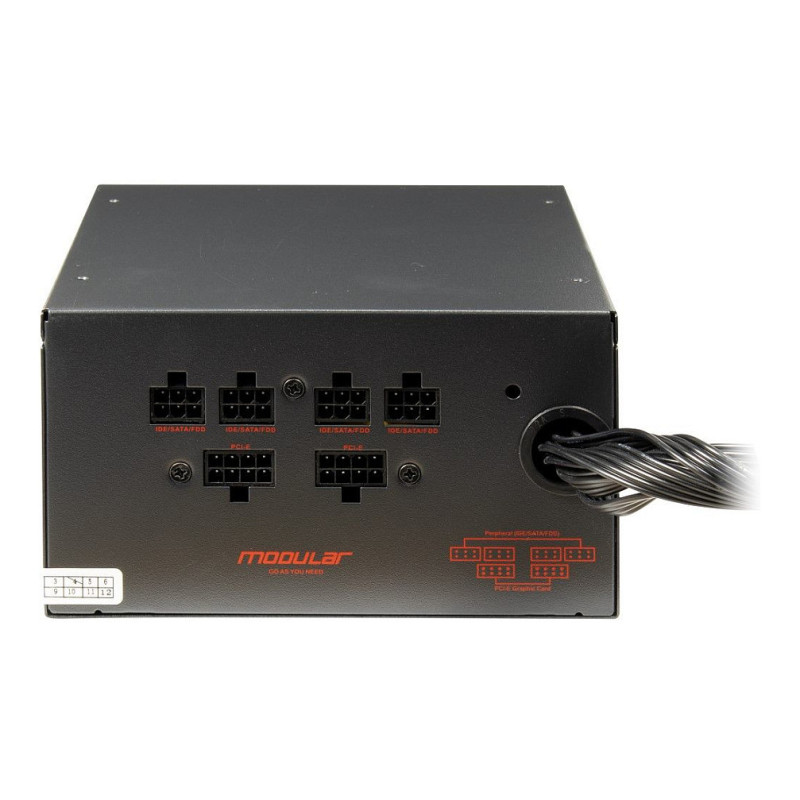

The 750W version of the HiPower series reliably supplies power-hungry systems with electricity and also saves electricity costs. With an efficiency of over 85%, the power loss is kept low, which is clearly reflected in the power consumption. The cable management also offers complete freedom when it comes to cable laying. Plug in only the cables you really need and set aside the rest for additions or future projects.

With 60A on the 12V line, there is more than enough power available for powerful hardware, which is protected from damage by the built-in protective circuits (OPP, OVP and SCP) in all cases.

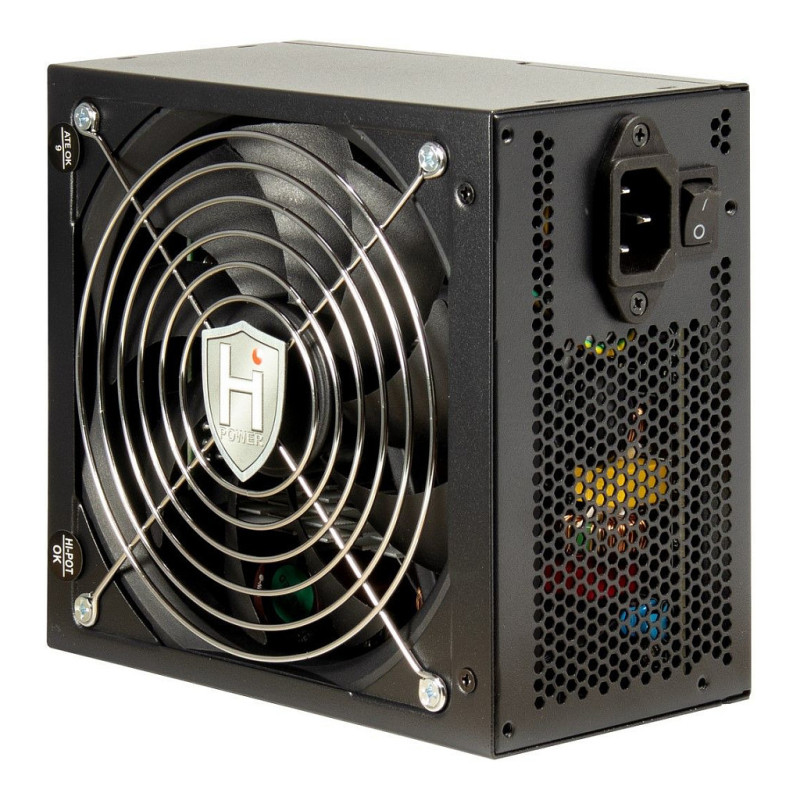

The powerful 140mm fan reliably ensures proper cooling of the power supply and the large number of connections round off the overall package.

Power

Total power: 750 W
Max output current (+12V): 60 A

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 8
Peripheral (Molex) power connectors (4-pin): 3
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Floppy drive power connector: 1
Cabling type: Semi-Modular

Performance

80 PLUS certification: No
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.3
Noise level: 35 dB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)
Fan location: Top

Packaging content

Cables included: Peripheral (Molex) to SATA 3.3

Weight & dimensions

Width: 150 mm
Depth: 1260 mm
Height: 86 mm
Weight: 1.43 kg

Packaging data

Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
