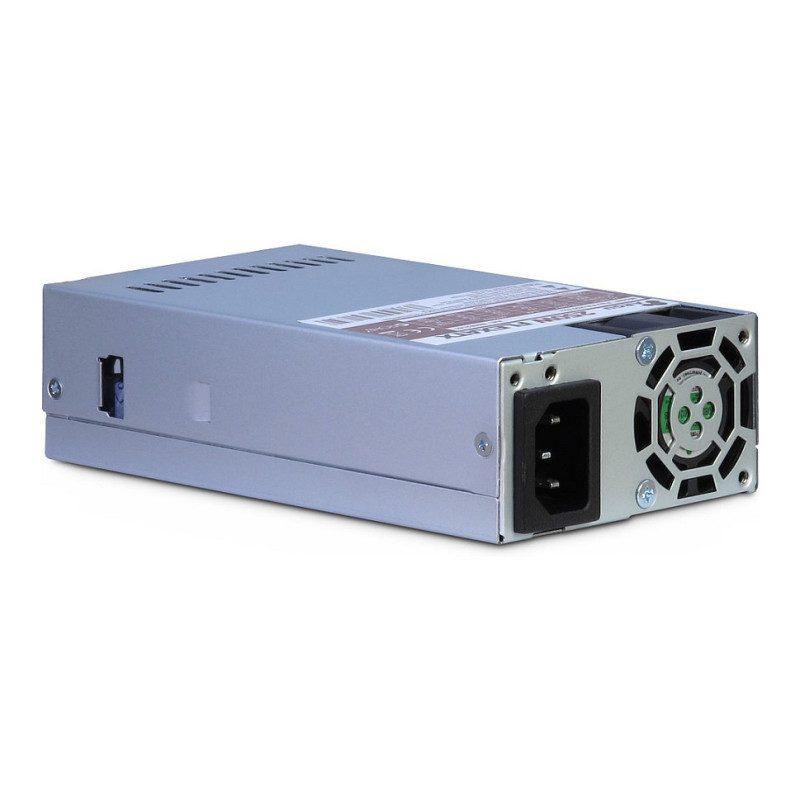

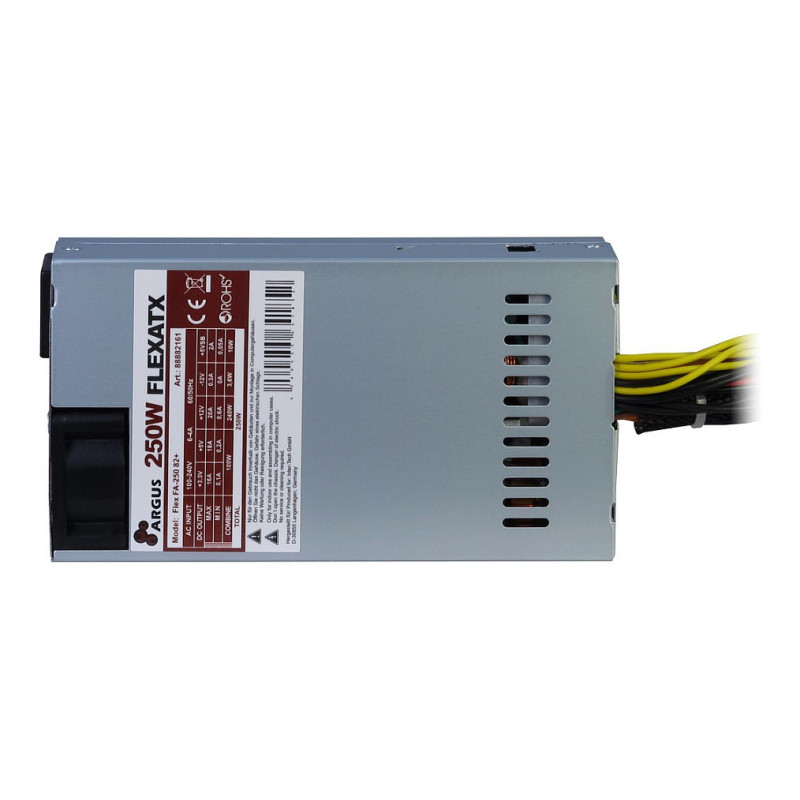

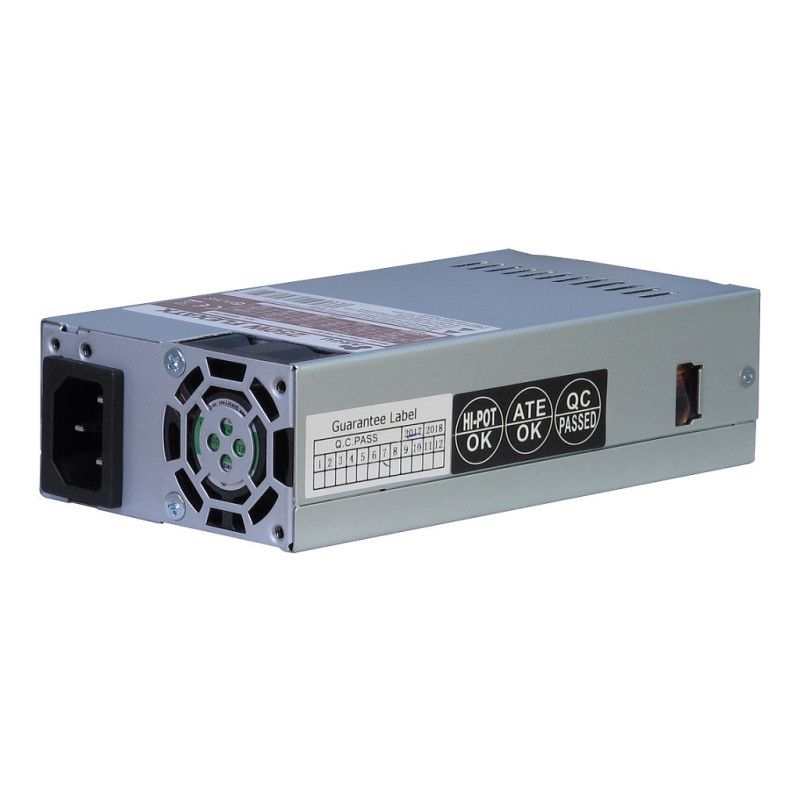

Inter-Tech FA-250 power supply unit

Inter-Tech FA-250. Total power: 250 W, AC input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 450 mm. Product colour: Grey, Fan diameter: 4 cm, Number of fans: 1 fan(s). Width: 82 mm, Depth: 150 mm, Height: 41 mm. Package weight: 1.01 kg
Argus FA-250 - Flex-ATX Power.
The Argus FA-250 is an industrial Flex-ATX power supply which meets the important EMI-, EMV- and safety standards.
The PSU is compliant to ATX 12V 2.31 and offers relevant protective functions. It offers active PFC (Power Factor Correction), a widerange input of 110-240V and efficiency of at least 82%.
Due to the length of the cables and a sleeved 20+4pin cable it ensures an easy and clean installation.

Power

Total power: 250 W
AC input voltage: 110 - 240 V
AC input frequency: 50 - 60 Hz
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 240 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 10 W
Max output current (+3.3V): 16 A
Max output current (+12V): 20 A
Max output current (+5V): 18 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2 A
Efficiency: 86%
Power protection features: Over current, Over power, Short circuit

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 45 cm
Number of SATA power connectors: 2
SATA power cable length: 450 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 1
PCI Express power cable length: 45 cm
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
Cabling type: Non-Modular

Design

Product colour: Grey
Fan diameter: 4 cm
Number of fans: 1 fan(s)
Fan location: Side

Weight dimensions

Width: 82 mm
Depth: 150 mm
Height: 41 mm
Weight: 760 g

Packaging data

Manual: Yes
Package weight: 1.01 kg

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 18 pc(s)
