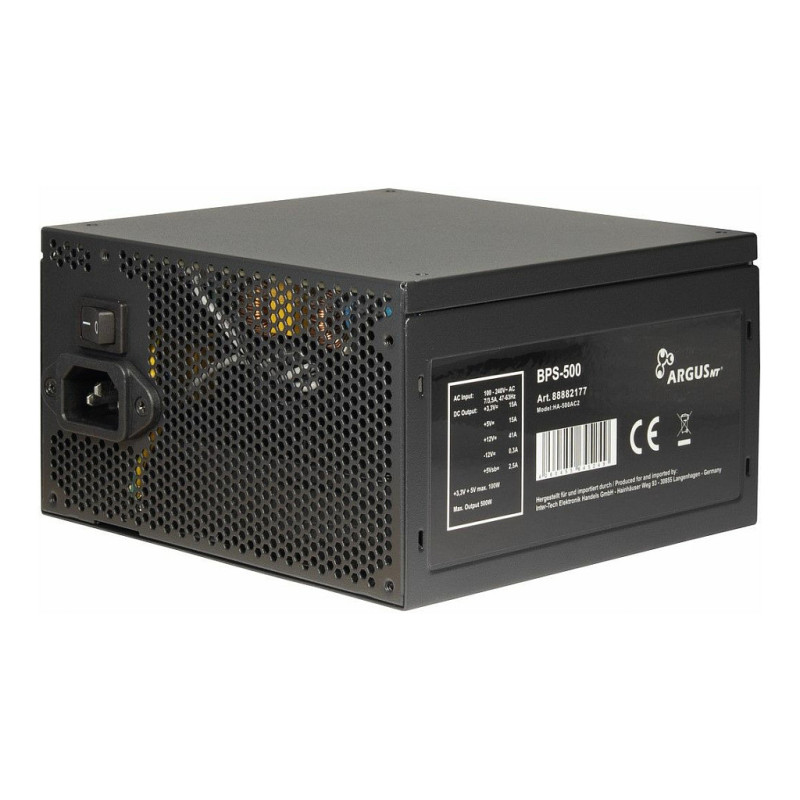

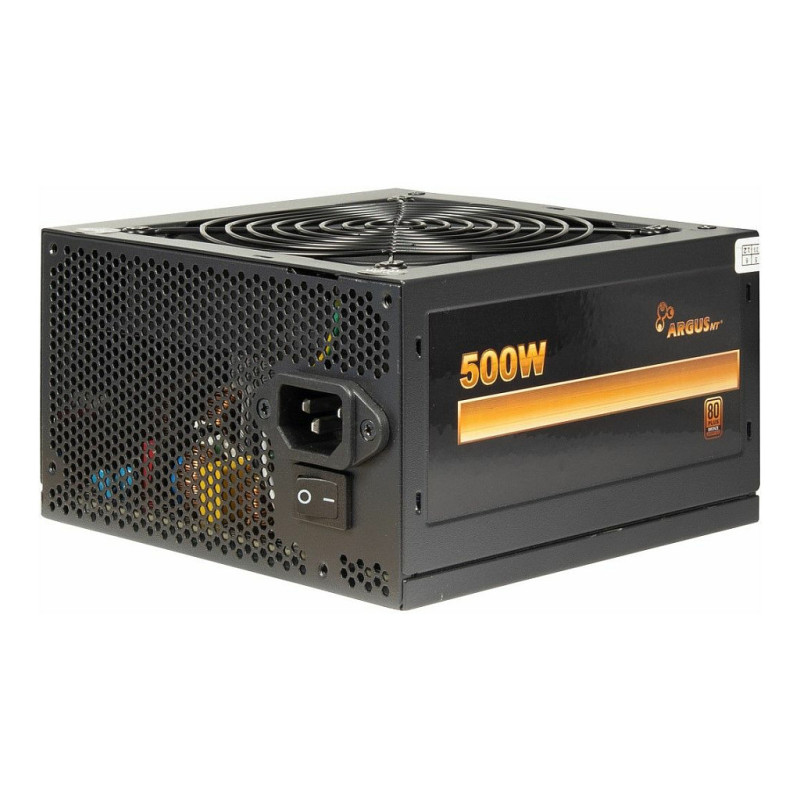

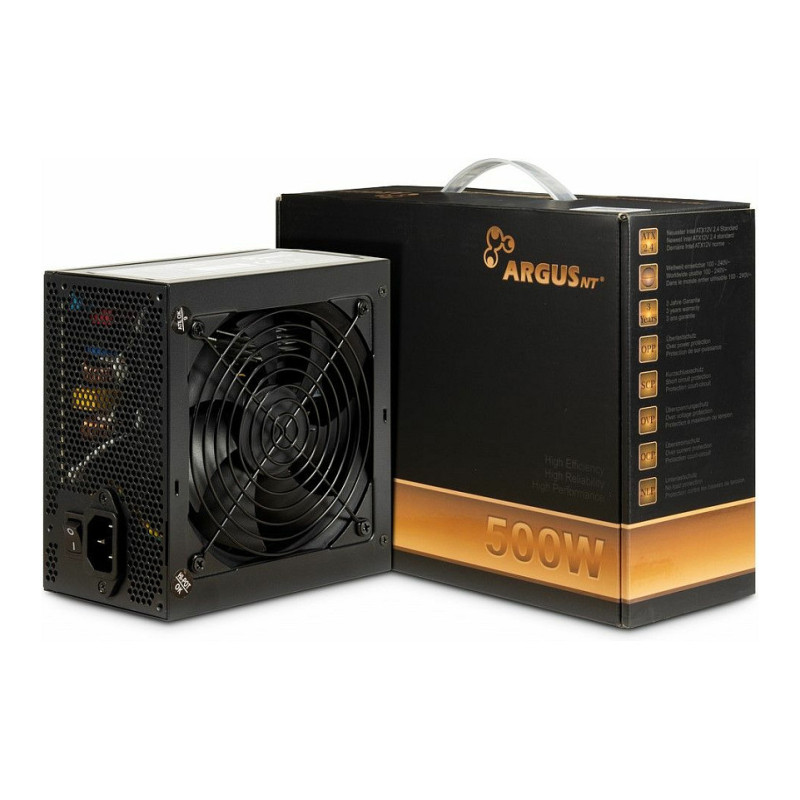

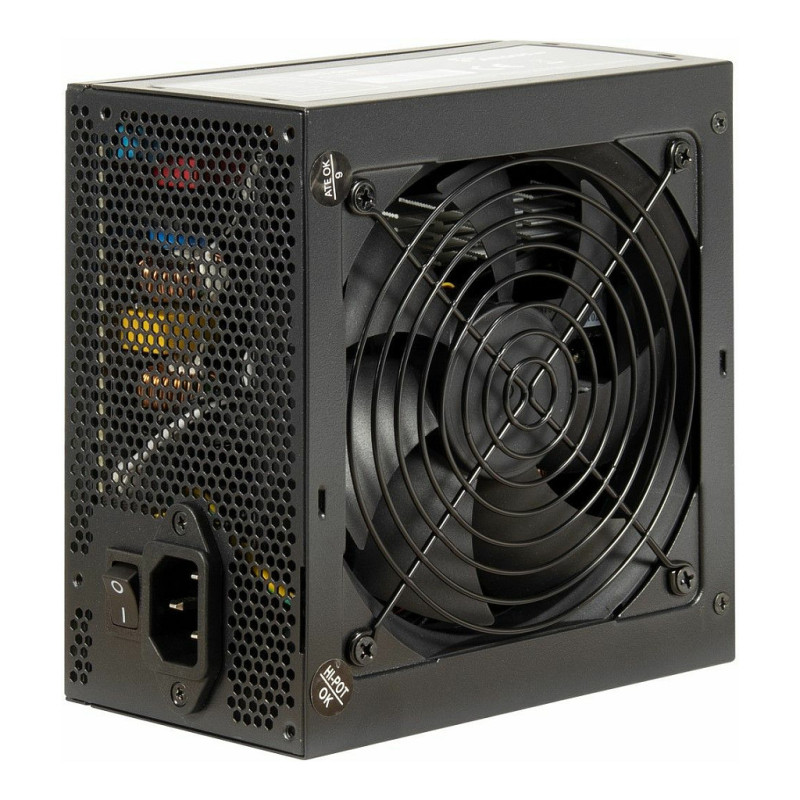

Inter-Tech ArgusNT BPS-500 power supply unit

Inter-Tech ArgusNT BPS-500. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: AC
The BPS series from Argus stands for powerful and reliable power supplies in the levels of 500W, 600W and 700W. To upgrade existing systems or to configure new ones, thanks to 80PLUS® Bronze 230V EU certification and state-of-the-art components, the BPS series will keep you up to date. To secure the built-in hardware and the power supply unit itself, we have not made any compromises and have equipped the power supply units of the BPS series with a total of five protective circuits (OPP, SCP, OVP, OCP and NLP).
When it comes to the variety of connections, we also kept an eye on the greatest possible efficiency and, with the exception of the 20+4pin connection, designed all other cable strands as flat ribbon versions - saving space and time when laying. The BPS-500 has two PCIe 6+2pin and six S-ATA connections available. With 41A on the 12V line, there is more than enough power available for potent hardware.
The overall package is rounded off by the smooth-running 120mm fan and the 36-month manufacturer's guarantee for the entire BPS series.

Power

Total power: 500 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 7/3.5 A
Combined power (+3.3V): 100 W
Combined power (+12V): 420 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 15 A
Max output current (+12V): 41 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 88.4%

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive connector: Yes
PCI Express connector: Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.4
Noise level: 37.5 dB

Design

Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Packaging content

Cables included: AC

Weight dimensions

Weight: 1.67 kg

Packaging data

Package width: 150 mm
Package depth: 140 mm
Package height: 86 mm
Package weight: 2.02 kg

Logistics data

Harmonized System (HS) code: 84733020
