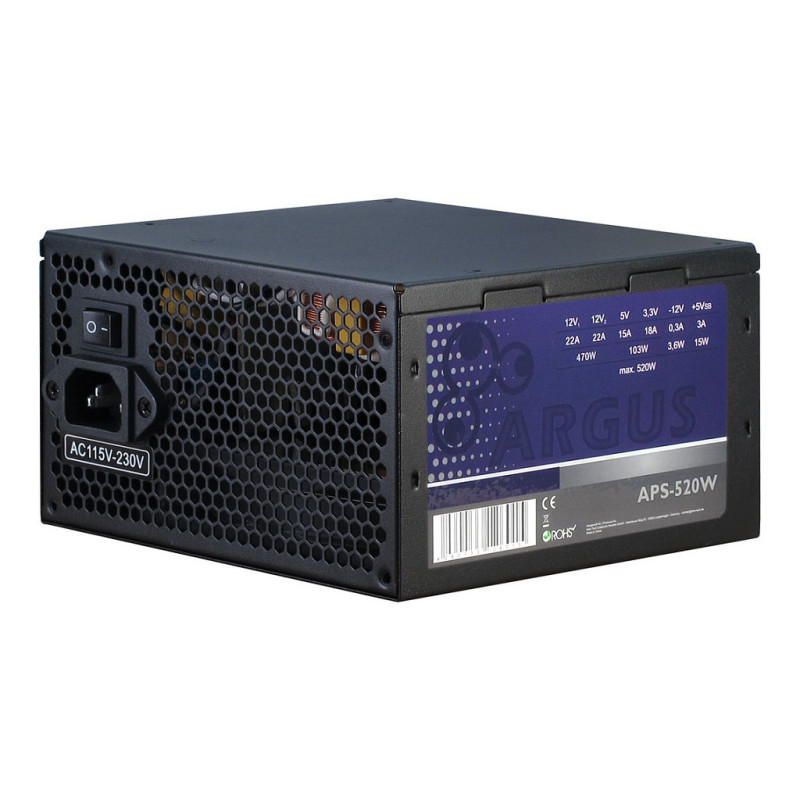

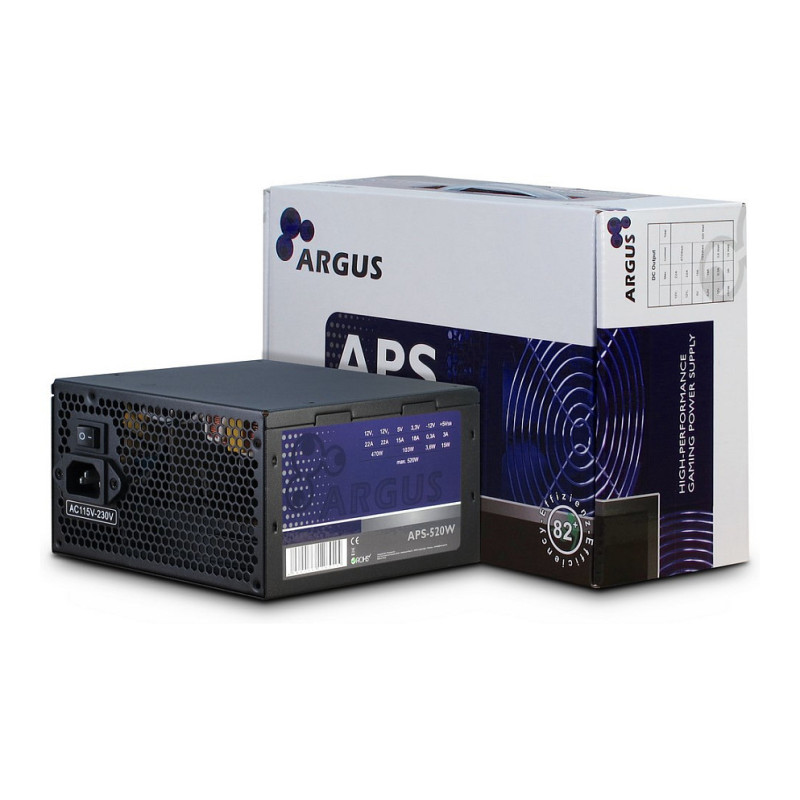

Inter-Tech Argus APS power supply unit

Inter-Tech Argus APS. Total power: 520 W, AC input voltage: 115 - 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 21 dB. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
- The Argus APS-520W - ideal for sophisticated office and gaming solutions
- The Argus APS-520W provides the customers with a high efficiency of at least 82% and therefore protects environment and wallet.
- Thanks to the efficient construction and the ideal configured connector layout the APS-520W provides with sufficient performance for the connected components.

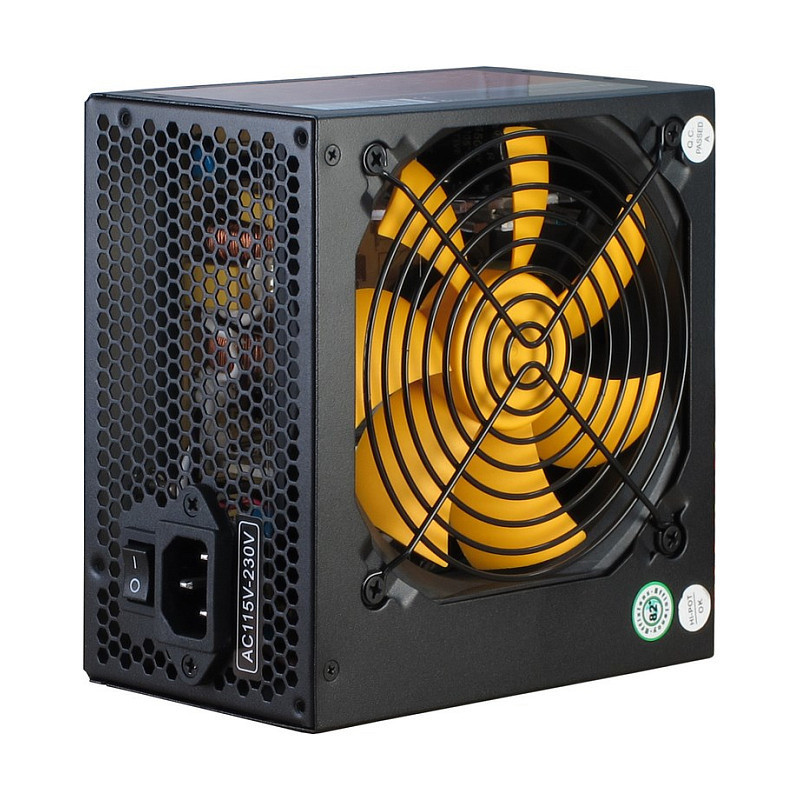

- The yellow 120mm fan works silently and ensures an optimal cooling of the power supply.

Power

Total power: 520 W
AC input voltage: 115 - 230 V
AC input frequency: 47 - 63 Hz
Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 22 A
Max output current (+12V2): 22 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 1
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive connector: Yes
PCI Express connector: Yes
Cabling type: Non-Modular

Performance

Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
Noise level: 21 dB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Weight dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.25 kg

Packaging data

Package width: 240 mm
Package depth: 95 mm
Package height: 170 mm
Package weight: 1.59 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 84733020
