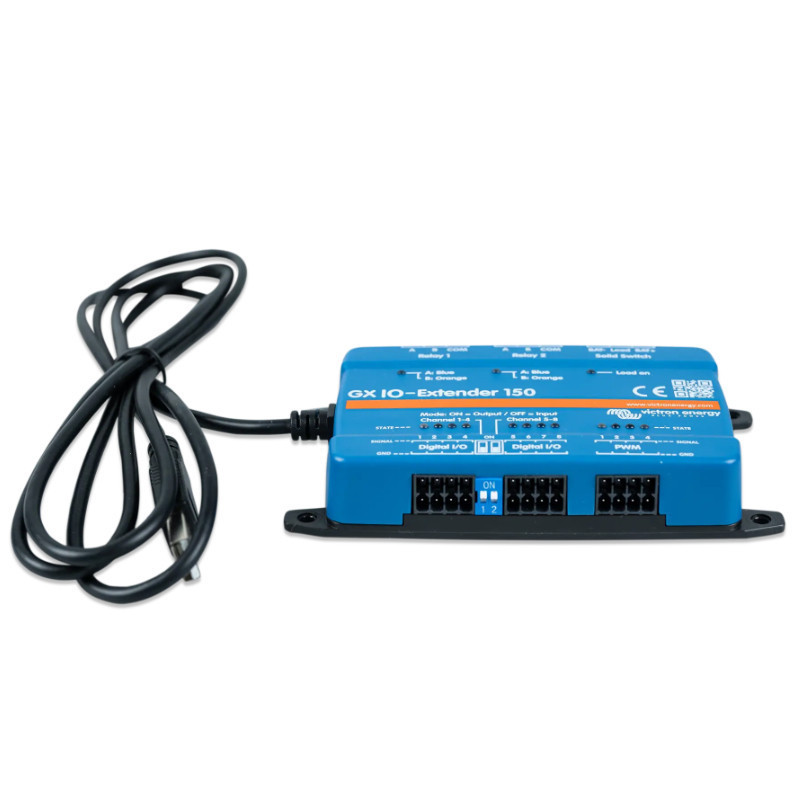

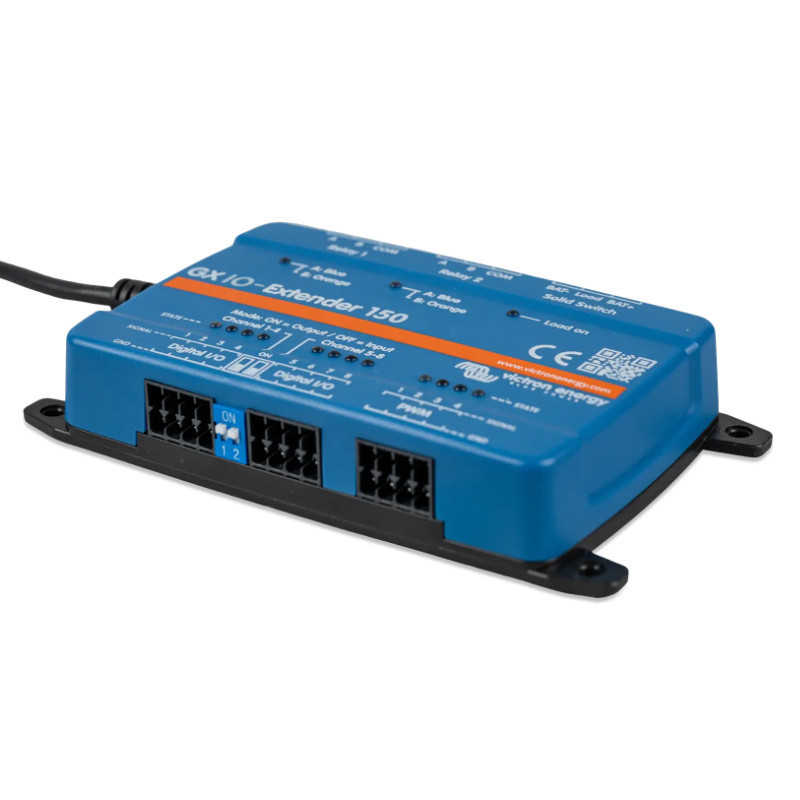

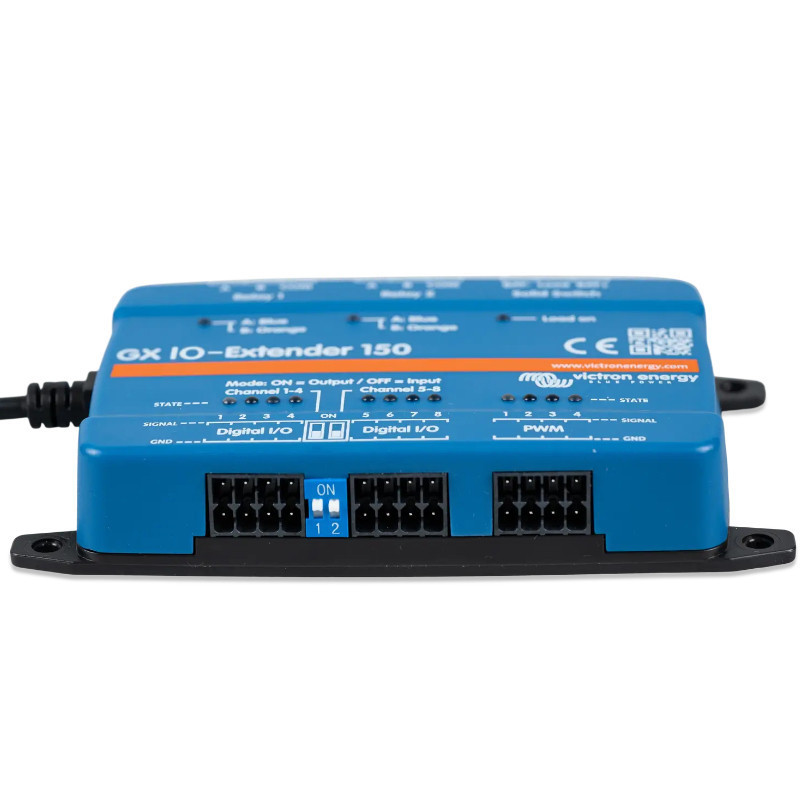

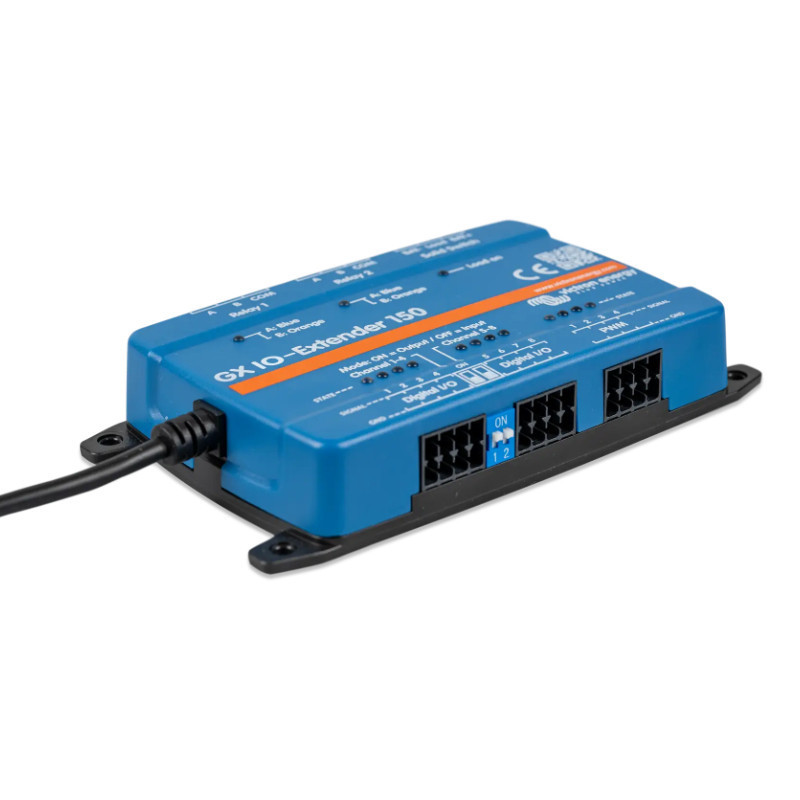

Victron GX IO-Extender 150 USB I/O expansion module



Simple I/O expansion via USB


GX IO-Extender 150 connects directly to GX devices via USB port, which also powers the device - no additional power supply required, simplifies installation and reduces costs.

Versatile inputs and outputs


Offers 8 configurable digital inputs/outputs, 4 PWM channels for controlling fans or lighting, and 3 relays (SSR and bistable), enabling flexible control and automation of systems.

Integration with the Victron ecosystem


Full support via Node-RED and the Switch interface in GX devices allows you to create your own control scenarios and advanced operating logic for the entire energy system.

Main features:



  • Universal GX compatibility (Cerbo GX, Venus GX, etc.)

  • Powered directly from USB (typical consumption ~100 mW)

  • Built-in LEDs for each input/output

  • 4 PWM channels (8-bit, 5V, 1.6 kHz)

  • Ability to program logic in Node-RED

  • Support via the Switch interface in GX OS


Expansion of GX system inputs and outputs


The device adds 8 digital inputs/outputs, 4 PWM channels and 3 relays (SSR and bistable), significantly increasing the possibilities of integrating Victron systems with additional sensors, switches, fans or lighting.

Power and communication via USB


A simple USB connection provides both power and communication to the GX device, eliminating the need for additional power cables. Typical power consumption of less than 100 mW allows for economical operation even in power-constrained systems.

Galvanic isolation of inputs/outputs


Each digital input and output is galvanically isolated, which increases the security of the entire system and protects the device against damage caused by overvoltages or electrical interference in the installation.

Control and automation via Node-RED


Thanks to integration with Node-RED, the user can create advanced automation scenarios without the need for programming – e.g. temperature-dependent ventilation control, lighting management or monitoring additional sensors.

Built-in SSR and bistable relays


Two bistable relays (3A/30V DC) enable switching circuits with minimal power consumption in the hold mode, while the SSR solid-state relay (4A/70V DC) enables fast, contactless control of higher-power DC loads.

Compact and versatile mounting housing


Small dimensions (123×67×23 mm) and the possibility of mounting on a wall or on a DIN rail (with an adapter) allow easy installation even in limited spaces of mobile, marine and stationary systems.


Technical specifications



  • Model: GX IO-Extender 150

  • Power supply: via USB

  • Power consumption: < 100 mW idle, 1 W max (< 200 mA at 5 V)

  • Installation: on a wall or on a DIN rail (using an optional adapter)


Digital inputs/outputs (isolated from USB)



  • 8 inputs/outputs with status LEDs

  • Configurable as: 8 inputs, 8 outputs or 4 inputs + 4 outputs

  • Input voltage: 3.8 - 5.5 V

  • Output voltage: 5 V, 4 mA max

  • Digital inputs support voltages up to 5.5 V (exceeding this may cause permanent damage)


PWM outputs (isolated from USB)



  • 4 channels with status LEDs

  • Output voltage: 5V

  • Accuracy: 8 bits

  • Frequency: 1.5625 kHz


Bistable relays (potential-free)



  • 2 relays with status LEDs

  • DC: 3A @ 30V, 1A @ 60V, 0.3A @ 220V (max. 90W)

  • AC: 2A @ 60V, 1A @ 125V, 0.5A @ 250V (max. 125 VA)


Solid State Relay (SSR, Isolated from USB)



  • Maximum battery voltage: 70 VDC

  • Maximum load current: 4 A

  • Maximum capacitive load:

    • Up to 15V: 1000µF

    • 15V - 30V: 400µF

    • 30V - 70V: 50µF



  • Maximum inductive load:

    • Up to 1 A: 1000 mH

    • 1 A - 2 A: 100 mH

    • Above 2 A: 10 mH




Dimensions and working environment



  • Dimensions (H × W × D): 123 × 67 × 23 mm

  • Weight: 0.170 kg

  • Operating temperature range: -20 to +50
