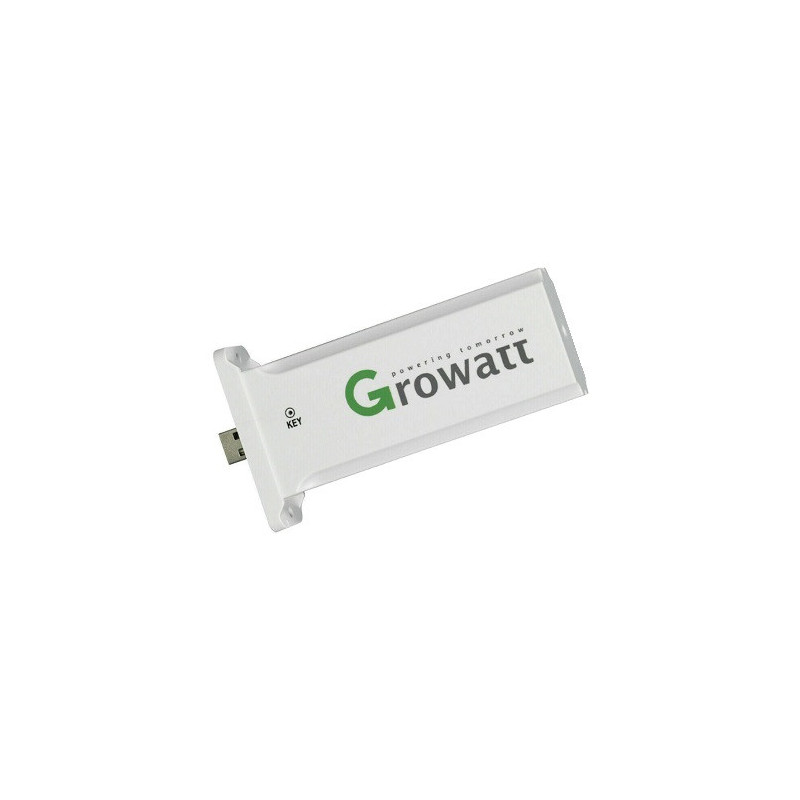

GROWATT Internet Interface Shine WiFi-F

Growatt Internet interface Shine WiFi-F
Features:

• The interface is designed to link Growatt inverter parameters with a Cloud server via Wi-Fi and monitor the operation of the solar power plant and the energy produced.


• The device connects to a solar inverter to remotely detect and potentially troubleshoot PV system faults.


• USB dongle with 50 meters (max. 100m without obstacles) range and integrated memory, connects your PV system to Wi-Fi.


• The data of the connected inverter is saved for 30 days, even if the internet connection is lost.


• Suitable for all Growatt inverters (Off-grid - without external power supply).

Technical data:

• Supported network: Wi-Fi 2.4GHz.


• Max. communication range: 100m.


• Wi-Fi wireless communication standard: IEE802.11 b/g/n.


• Transmission power: 802.11b: +20dBm(max); 802.11g: +18dBm(max); 802.11n: +15dBm(max).


• Receiver sensitivity: 802.11b: -89dBm(max); 802.11g: -81dBm(max); 802.11n: -71dBm(max).


• Voltage: 5V.


• Current: 1A.


• Interface: USB Type-A.


• Data interface: UART 9600bps; Ethernet 100Mbps.


• Network type: Access Point; Station Mode with Soft AP.


• Security: WEP / WPA-PSK / WPA2-PSK / WAPI.


• Encryption: WEP64 / WEP128 / TKIP / AES.


• Supported server: ShineServer (server-cn.growatt.com).


• Data transmission interval: 5 min.


• Operating temperature: -20°C ~ +65°C.


• Dimensions: 135x79x29 mm.


• Weight: 63g.
