Grounding head, M18

Grounding head, M18
Features:

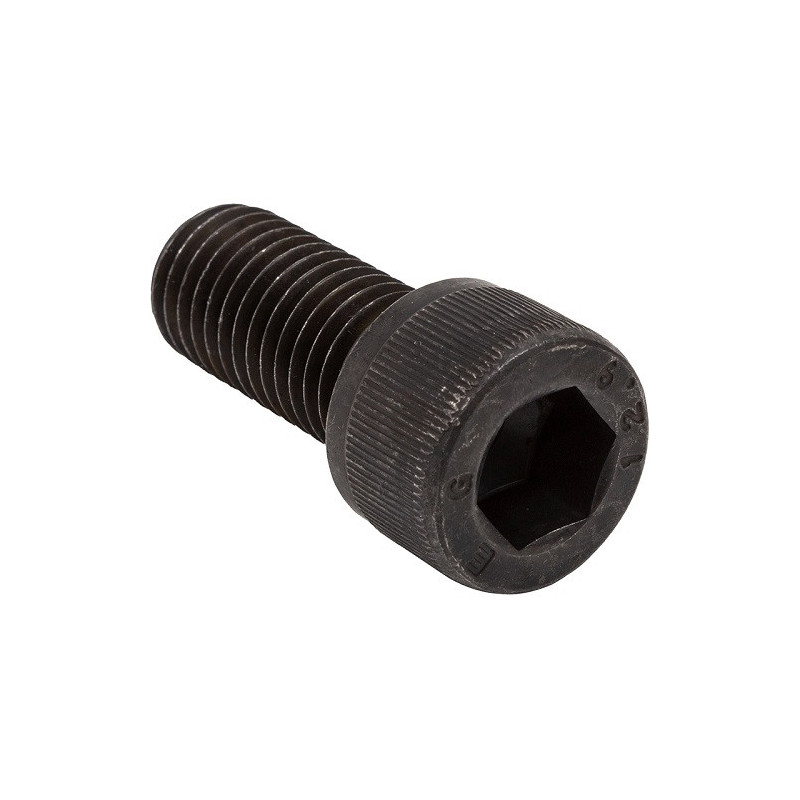

• Grounding head, steel. Screw with full thread, head screwed with internal hexagon.


• The screw of class 12.9, made of steel alloy, can be used many times. Suitable for heavy-duty structures, when screwing metal to metal, especially in kai connections where tensile or compressive force prevails. It is characterized by excellent stability at high or low temperatures and resistance to various chemical and physical reactions.

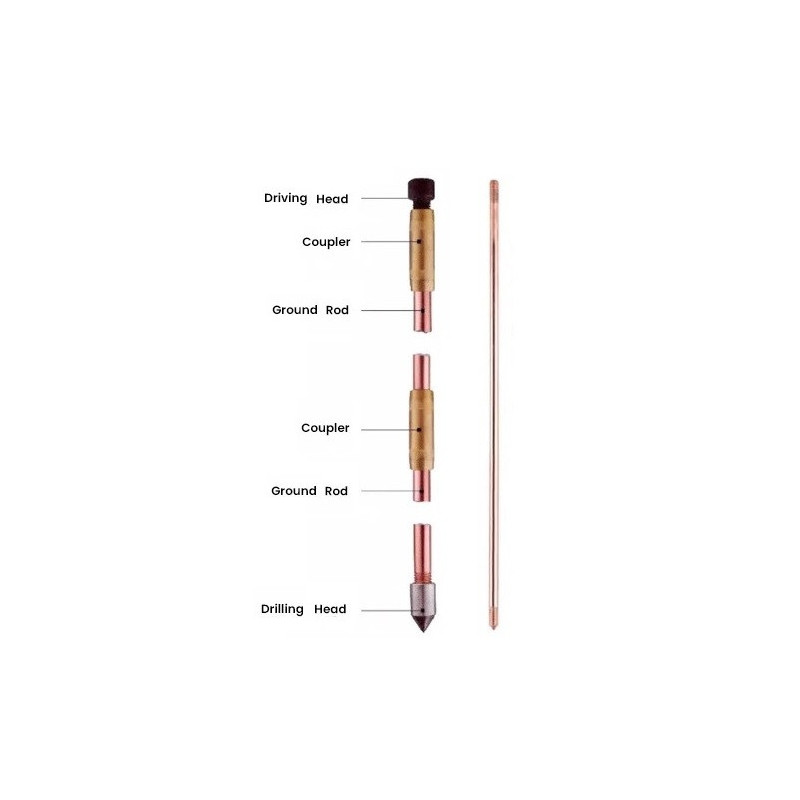

• The grounding head is used to drive ground rods in depth. It is attached to the ground rod by threading into the connecting grounding sleeve.


• Thread standard M18.


• Used in grounding and lightning protection systems, can also be used in transport, agricultural machinery, etc.

Technical data:

• Material: steel.


• Strength class: 12.9.


• Thread: M18.


• Header: Hex 14mm.


• Diameter of grounding rod: 16mm.


• Length: 58mm.


• Outer diameter: 26mm.


• Weight: 130g.
