go-e Gemini flex 2.0

go-e Gemini flex 2.0. Product colour: Black, White, Mounting type: Wall, Cable colour: Black. Socket type: Type 2, SIM card type: eSIM, Grounding system supported: IT, TN, TT. Power source type: AC, Maximum charging power: 11000 W, Single-phase output voltage supported: 230,240 V. Charging cable length: 0.3 m, Width: 155 mm, Depth: 110 mm

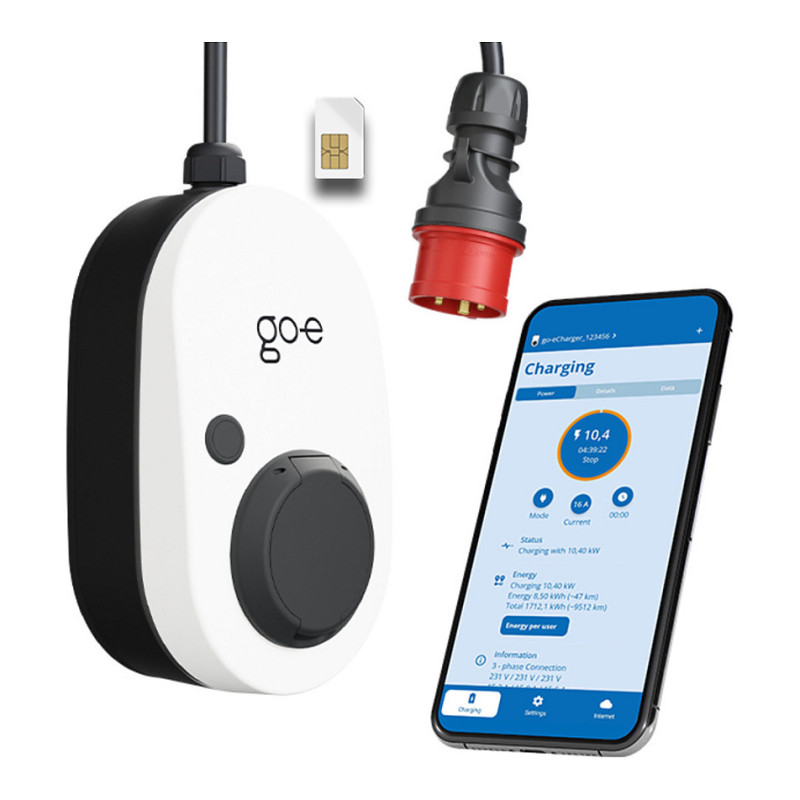

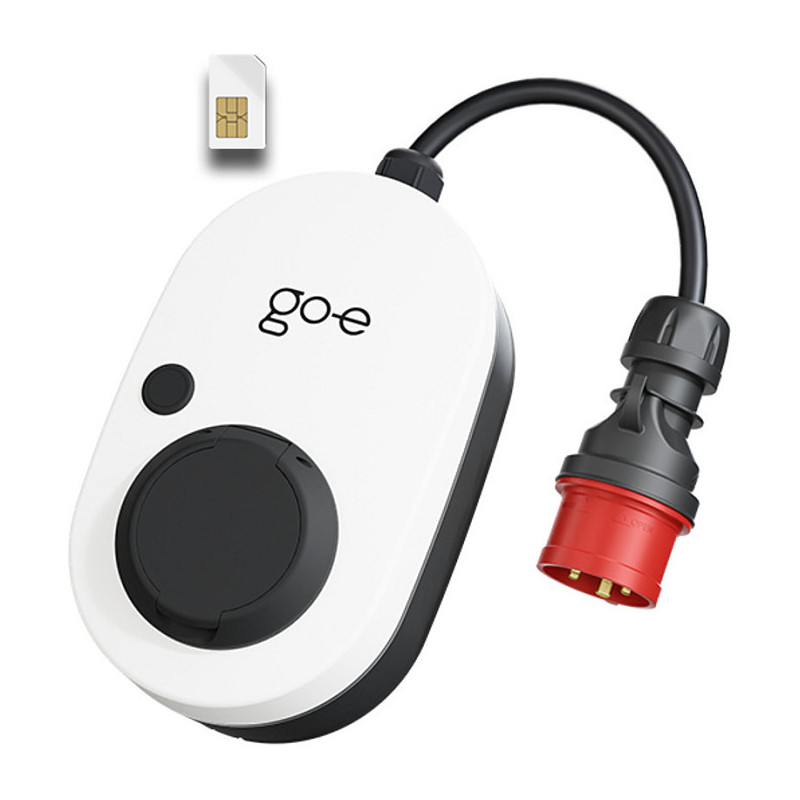

go-e Charger Gemini flex 2.0 11 kW
The go-e Charger Gemini flex 2.0 with integrated SIM card and a maximum charging capacity of 11 kW is a smart wallbox for charging battery electric vehicles and plug-in hybrids both indoors and outdoors. Thanks to the integrated SIM card, you can access your portable wallbox from anywhere.
go-e Charger Gemini flex 2.0 11 kW
The go-e Charger Gemini flex 2.0 11 kW is a smart wallbox with cellular connectivity for affordable and sustainable charging of electric cars. Thanks to the integrated SIM card, you can use smart charging functions anywhere, even without a WiFi connection. The wallbox can also be converted into a mobile wallbox in no time at all.

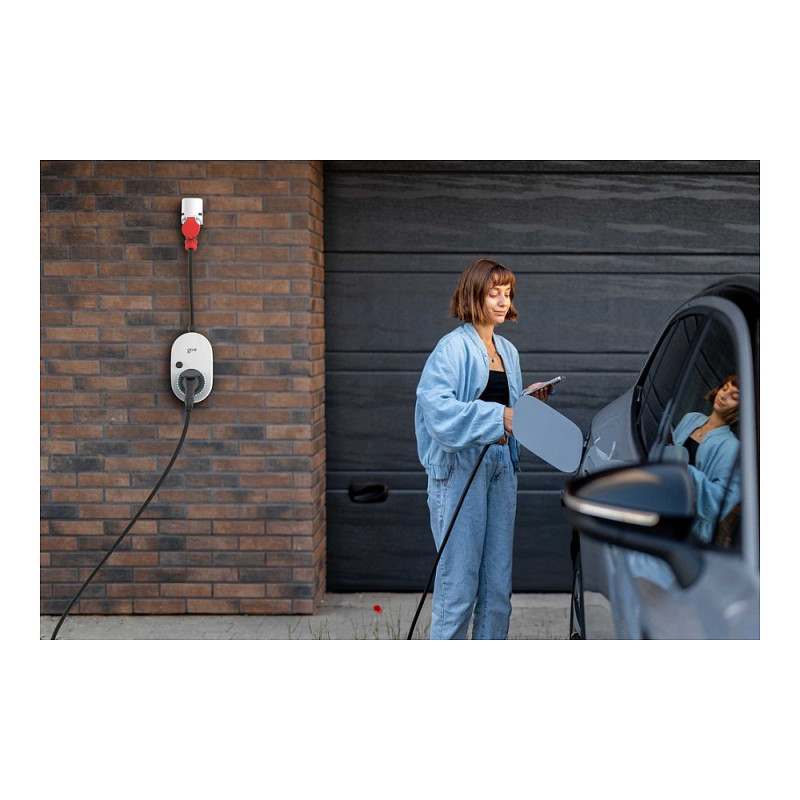

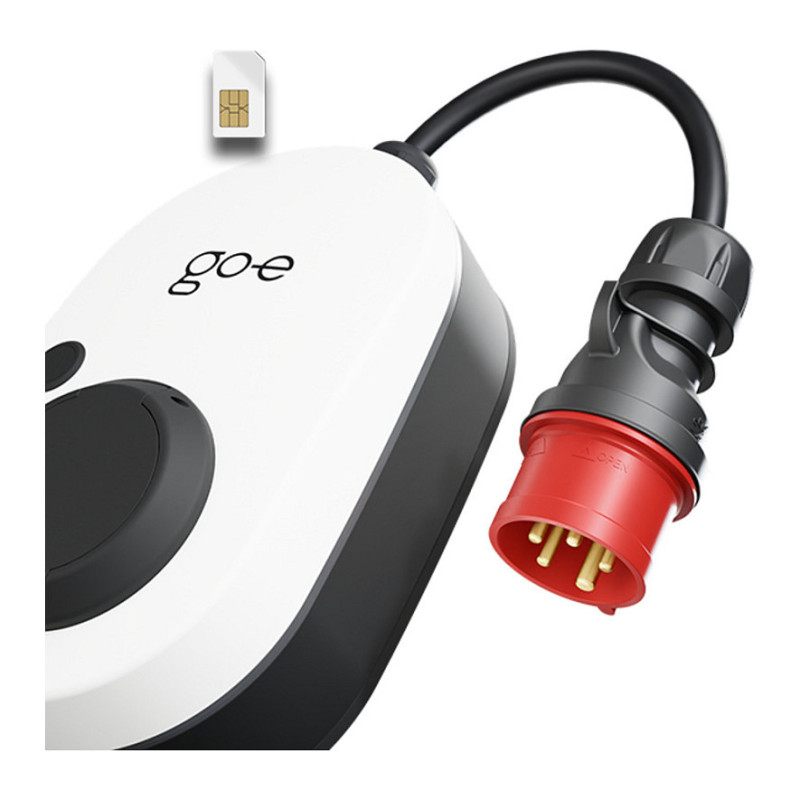

This go-e Charger is suitable for indoor and outdoor installation. Connect it directly to an existing red CEE 16 A three-phase socket and it is ready for the first charging process (plug play). It is not necessary to open the go-e Charger as part of the installation process. The device must never be opened in any other case.
The go-e Charger ensures a safe charging process. The DC protection module switches the charger off completely if DC residual currents occur. The wallbox can be used with or without an app. The free go-e app can be used to change the convenience and basic settings, allowing the wallbox to be adapted to your personal charging behaviour. For example, you can plan the charging process to make it more sustainable as well as affordable and reduce the load on the power grid.
Remote technical support thanks to mobile phone connection
Technical support is now even easier and more convenient for you thanks to cellular connectivity. Remote diagnostics, troubleshooting and maintenance are now often possible without a "workshop visit" thanks to over-the-air updates.
More flexibility and reliability

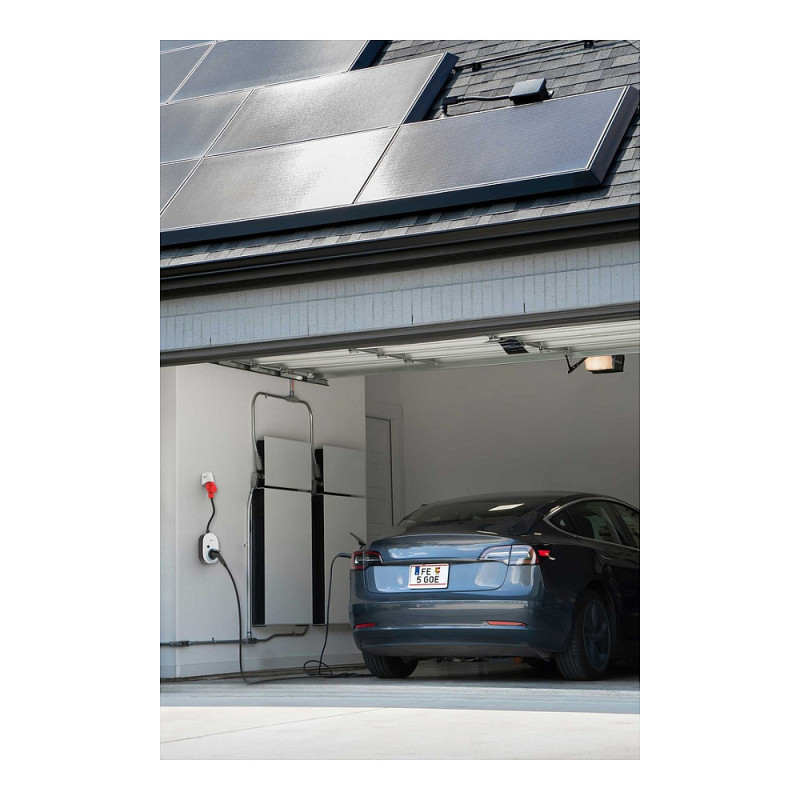

The go-e Charger Gemini flex 2.0 11 kW is always there when you need it. Data is transmitted not only via WiFi, but also via the 4G LTE Cat-1 mobile phone standard or in fallback via 2G / Edge. This means you can use the intelligent features of the go-e Charger, such as fully automated PV surplus charging or flexible energy tariffs, to name just two, even if your go-e Charger is not within Wi-Fi range.
Country of origin: Austria
Due to legal regulations, the go-e Charger Gemini flex 2.0 must not be used in Norway.

Design

Product colour: Black, White
Mounting type: Wall
Cable colour: Black
Country of origin: Austria

Features

Sockets quantity: 1
Socket type: Type 2
Feature: SIM card support
SIM card type: eSIM
Feature: RFID reader
Grounding system supported: IT, TN, TT
Mechanical impact protection code: IK08
International Protection (IP) code: IP65
IEC protection class: I
Cross-section connection: 5 x 2.5 mm²
Quantity per pack: 1 pc(s)

Power

Power source type: AC
Maximum charging power: 11000 W
Single-phase output voltage supported: 230,240 V
Three-phase output voltage supported: 400,415 V
Nominal frequency: 50 Hz
Minimum operating power (single-phase): 1.4 kW
Maximum operating power (single-phase): 3.7 kW
Maximum operating power (three-phase): 11 kW
Number of phases: 3
Maximum operating current (three-phase): 16 A
Power consumption (standby): 3.1 W

Ports interfaces

Feature: Wi-Fi

Operational conditions

Operating temperature (T-T): -25 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 2000 m

Technical details

Warranty period: 3 year(s)

Weight dimensions

Charging cable length: 0.3 m
Width: 155 mm
Depth: 110 mm
Height: 260 mm
Weight: 1.63 kg
