go-e Gemini 2.0

go-e Gemini 2.0. Product colour: Black, White, Mounting type: Wall, Cable colour: Black. Socket type: Type 2, SIM card type: eSIM, Grounding system supported: IT, TN, TT. Power source type: AC, Maximum charging power: 11000 W, Single-phase output voltage supported: 230,240 V. Charging cable length: 1.8 m, Width: 155 mm, Depth: 110 mm

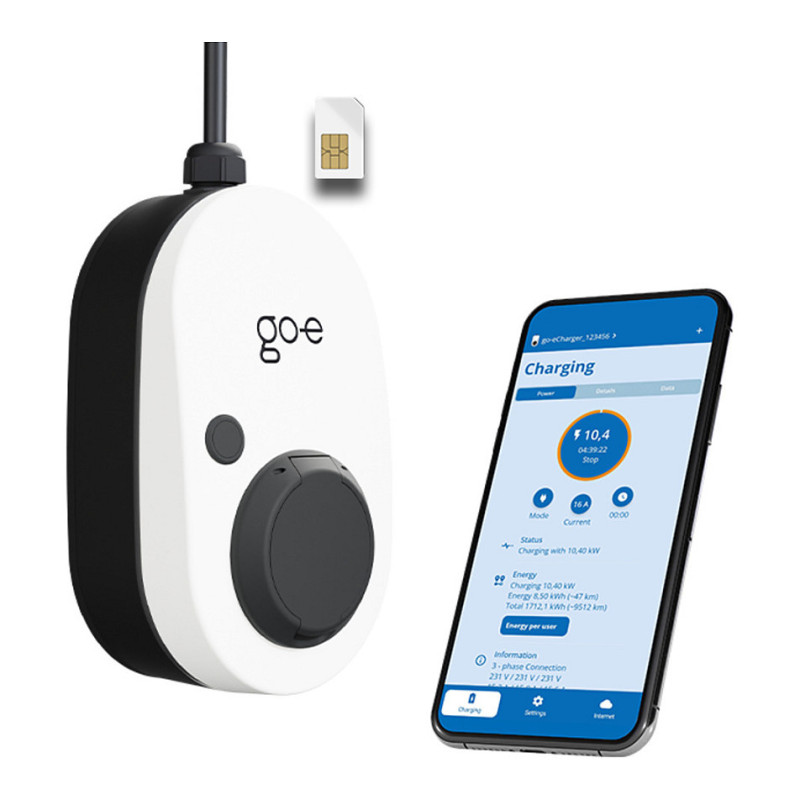

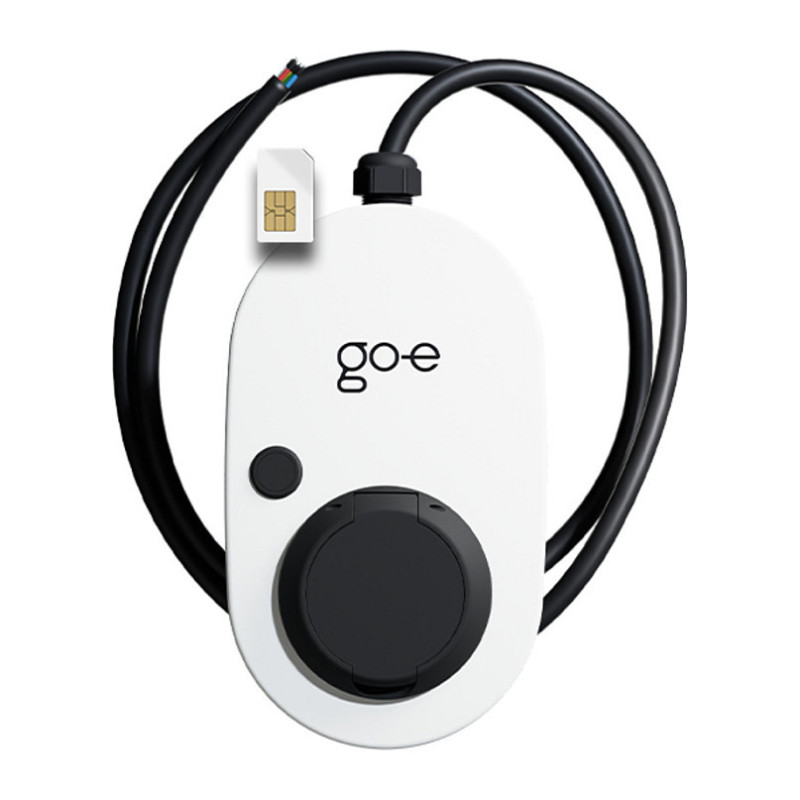

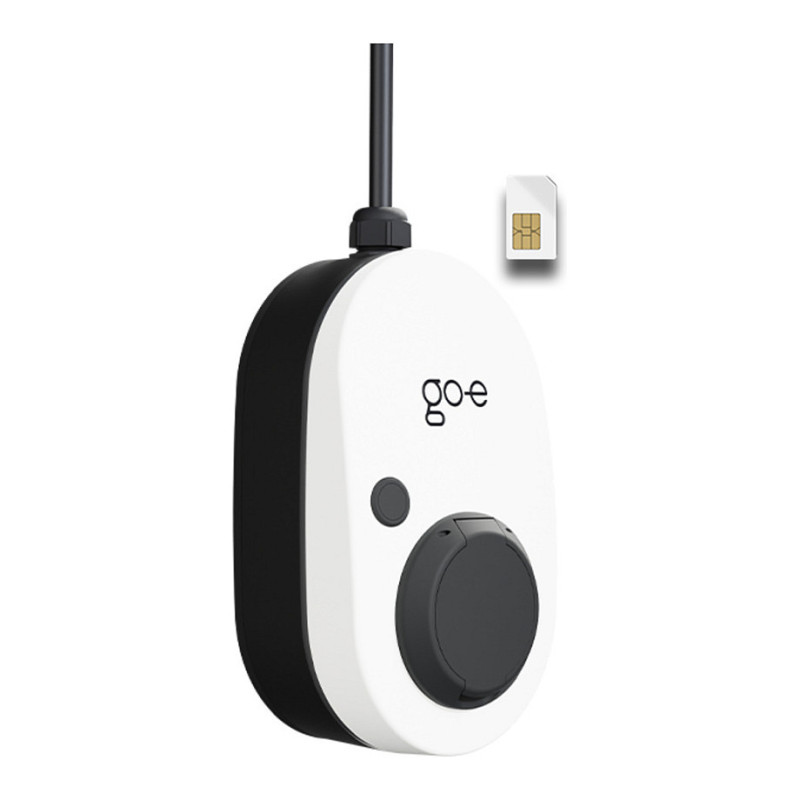

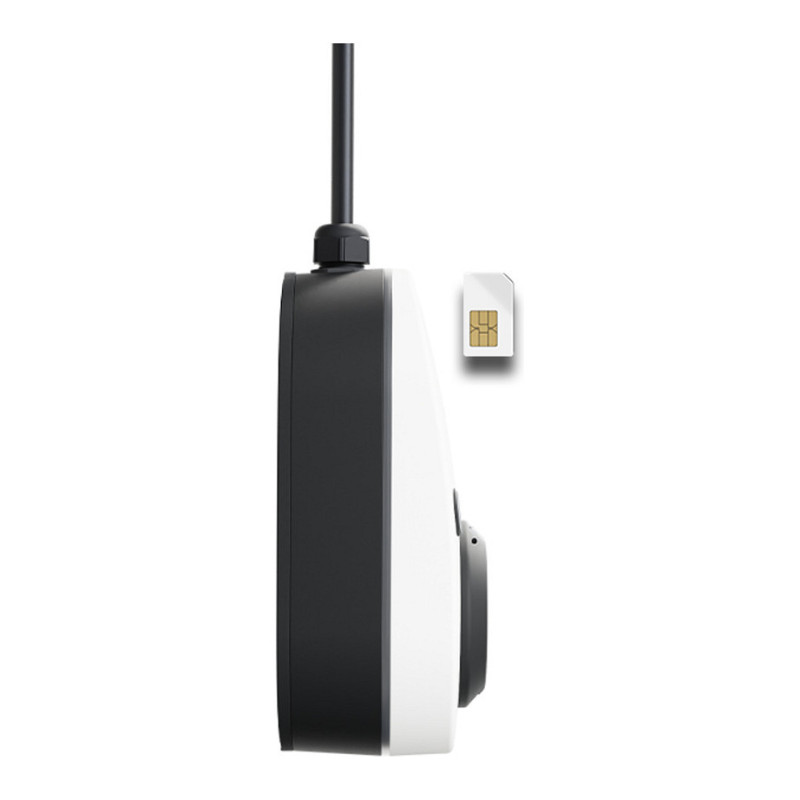

go-e Charger Gemini 2.0 11 kW

The go-e Charger Gemini 2.0 with cellular connectivity and 11 kW charging power is a smart wallbox for installation at home or in a company car park. It charges battery electric vehicles and plug-in hybrids easily, quickly and safely. The wallbox offers numerous additional convenient functions via the go-e app or API. Thanks to the integrated SIM card, the go-e Charger Gemini 2.0 11 kW has all the intelligent functions of the previous Gemini series, but now these also operate without WiFi.

Design

Product colour: Black, White
Mounting type: Wall
Cable colour: Black
LED indicators: Yes
Country of origin: Austria

Features

Feature: Wi-Fi
Sockets quantity: 1
Socket type: Type 2
Feature: SIM card support
SIM card type: eSIM
Feature: RFID reader
Grounding system supported: IT, TN, TT
Mechanical impact protection code: IK08
International Protection (IP) code: IP65
IEC protection class: I
Cross-section connection: 5 x 2.5 mm²
Quantity per pack: 1 pc(s)

Power

Power source type: AC
Maximum charging power: 11000 W
Single-phase output voltage supported: 230,240 V
Three-phase output voltage supported: 400,415 V
Minimum operating power (single-phase): 1.4 kW
Maximum operating power (single-phase): 3.7 kW
Maximum operating power (three-phase): 11 kW
Number of phases: 3
Maximum operating current (three-phase): 16 A
Power consumption (standby): 3.1 W

Operational conditions

Operating temperature (T-T): -25 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 2000 m

Technical details

Warranty period: 3 year(s)

Weight & dimensions

Charging cable length: 1.8 m
Width: 155 mm
Depth: 110 mm
Height: 260 mm
Weight: 1.85 kg
