go-e Gemini

go-e Gemini. Product colour: White, Mounting type: Wall, Cable colour: Black. Socket type: Type 2, Grounding system supported: IT, TN, TT, International Protection (IP) code: IP55. Power source type: AC, Maximum charging power: 11000 W, Single-phase output voltage supported: 230,240 V. Charging cable length: 1.8 m, Width: 155 mm, Depth: 110 mm

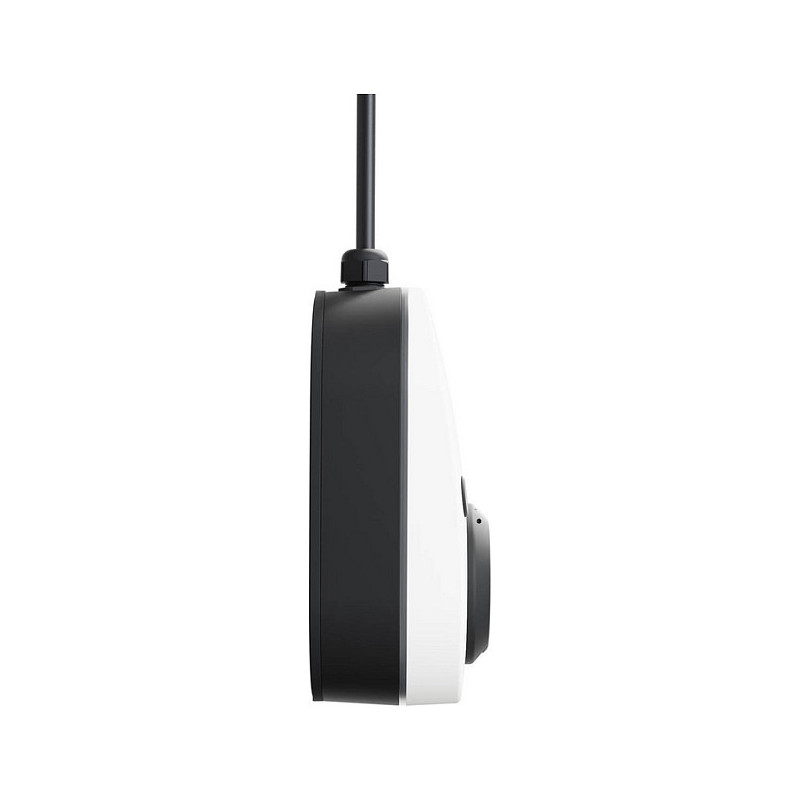

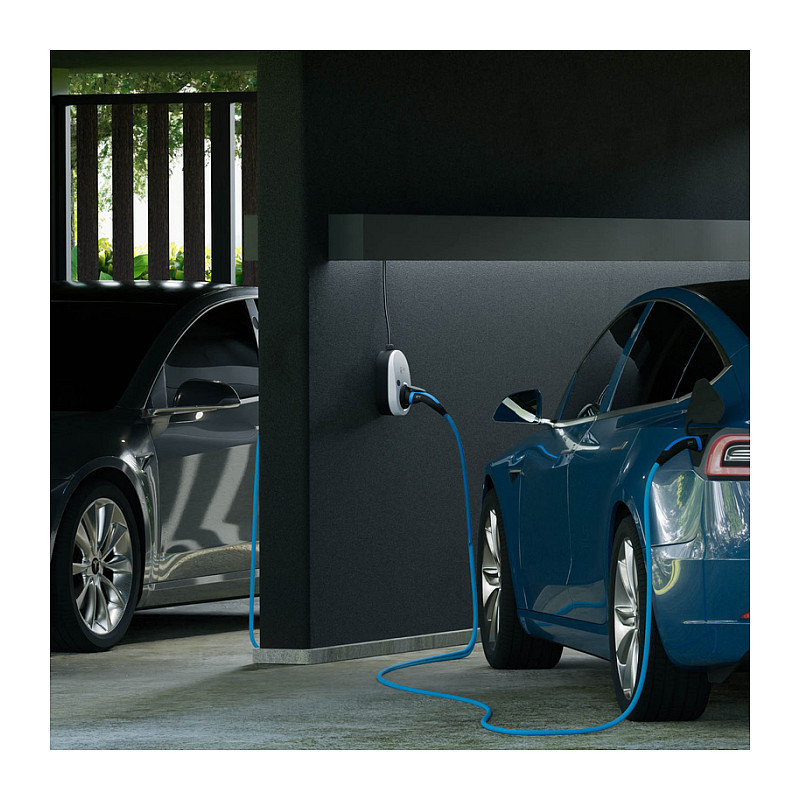

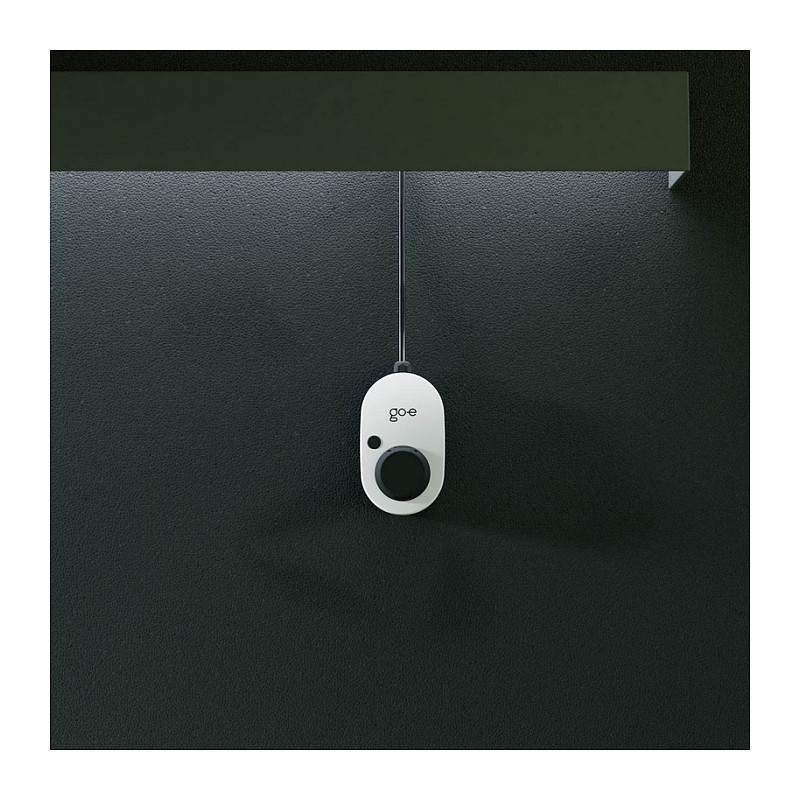

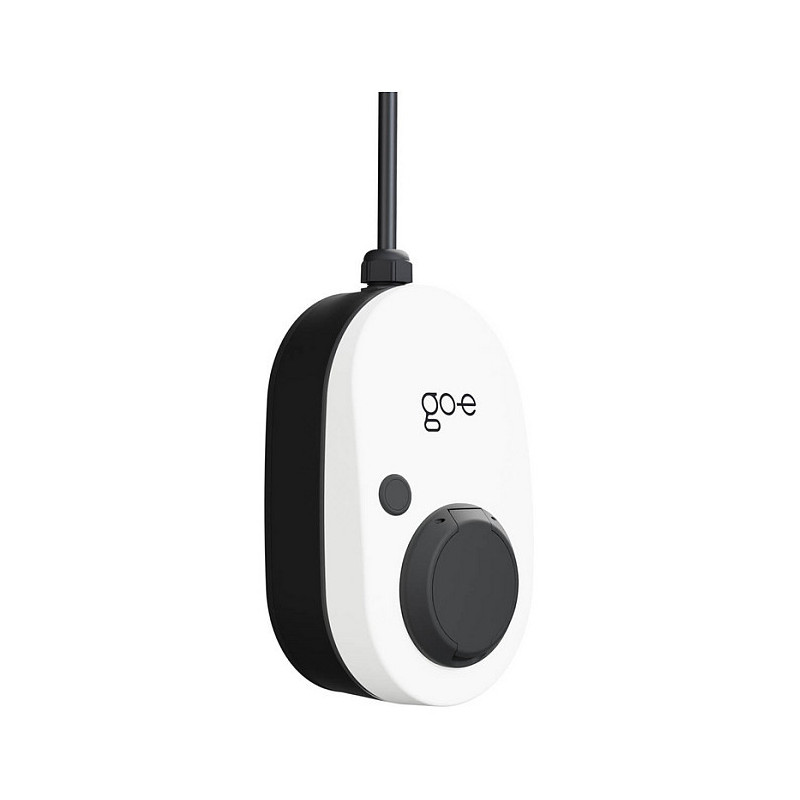

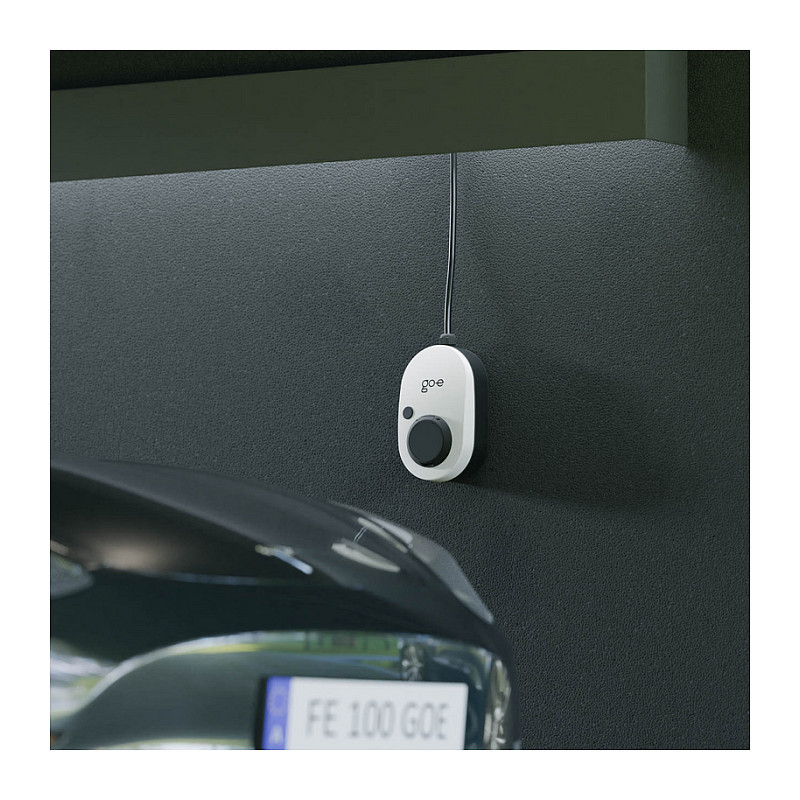

The go-e Charger Gemini 11 kW is an intelligent wallbox for charging electric cars at home and at company locations (without charging current billing). Immediately after installation, the device is ready for the first charging process (Plug&Play).

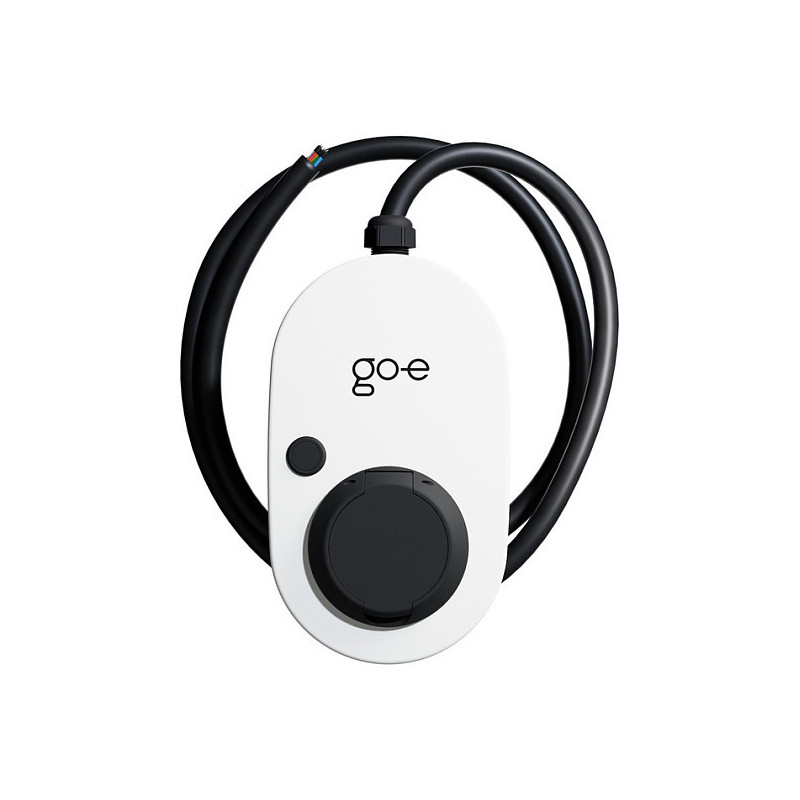

The charging station has a 1.8 meter connection cable for permanent connection to a power distribution box. Thus, unlike the go-e Charger Gemini flex, the charger does not have a plug and is therefore not mobile. The clever solution for all those who need a smart home charging station for pure wall Installation.

In addition to extensive safety functions such as DC fault protection (FI protection module), phase detection and ground measurement, the charging station is equipped with RFID for access control (activation via app if required) and hotspot/WiFi, among other features. PV connection via the API interface, load balancing and use of flexible energy tariffs*** are also part of the range of functions. With the free go-e Charger app, comfort and basic settings can be changed, allowing the device to be adapted to personal charging behavior and inviting more sustainable charging.

Design

Product colour: White
Mounting type: Wall
Cable colour: Black
LED indicators: Yes

Features

Feature: Wi-Fi
Sockets quantity: 1
Socket type: Type 2
Feature: RFID reader
Grounding system supported: IT, TN, TT
International Protection (IP) code: IP55
IEC protection class: I
Cross-section connection: 5 x 2.5 mm²
Quantity per pack: 1 pc(s)

Power

Power source type: AC
Maximum charging power: 11000 W
Single-phase output voltage supported: 230,240 V
Three-phase output voltage supported: 400,415 V
Nominal frequency: 50 Hz
Maximum operating power (three-phase): 11 kW
Number of phases: 3
Maximum operating current (three-phase): 16 A
Power consumption (standby): 3.1 W

Operational conditions

Operating temperature (T-T): -25 - 40 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 2000 m

Weight & dimensions

Charging cable length: 1.8 m
Width: 155 mm
Depth: 110 mm
Height: 260 mm
Weight: 1.85 kg
Package weight: 3.04 kg
