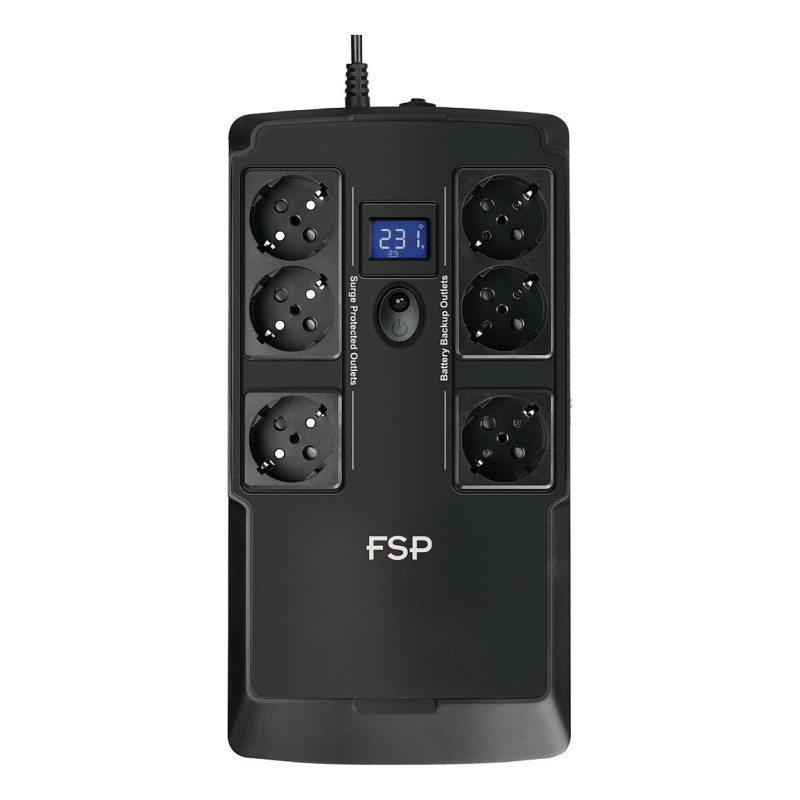

FSP NanoFit 600 uninterruptible power supply (UPS)

FSP NanoFit 600. UPS topology: Standby (Offline), Output power capacity: 0.6 kVA, Output power: 360 W. AC outlet types: Type F, AC outlets quantity: 6 AC outlet(s), USB port type: USB Type-A. Battery capacity: 4.5 Ah, Battery voltage: 12 V, Typical backup time at full load: 13 min. Form factor: Compact, Product colour: Black, Display type: LCD. Safety: CE

A compact size with stand and mounting flexibility Off line UPS to provide the expected backup power for home, gaming or personal appliances.

Compact size can be desktop or wall-mounted

RJ45 Surge Protection safeguards your equipment against damaging surges and spikes that travel along utility and internet lines.

Nanofit 600/800 can be monitored by computer software
(This function only available for UPS with Type-B com. Port)

FSP UPS provides back up battery power so you can work through short and medium length power outages.

Protect your productivity from the constant threat of bad power and lost data.

Features

UPS topology: Standby (Offline)
Output power capacity: 0.6 kVA
Output power: 360 W
Waveform: Sine
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Output frequency regulation: ±1 Hz
Output voltage regulation: ±10%%
Response time: 6 ms
Noise level: 40 dB
Power protection features: Overcharge, Overdischarge, Overload

Ports & interfaces

AC outlet types: Type F
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 2
USB port type: USB Type-A
Ethernet LAN (RJ-45) ports: 2

Battery

Battery capacity: 4.5 Ah
Battery voltage: 12 V
Number of batteries supported: 1
Typical backup time at full load: 13 min
Battery recharge time: 8 h
Feature: Cold start

Design

Form factor: Compact
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Safety regulation & standards

Safety: CE

Weight & dimensions

Width: 158.5 mm
Depth: 305 mm
Height: 95 mm
Weight: 2.6 kg

Logistics data

Harmonized System (HS) code: 85078000
