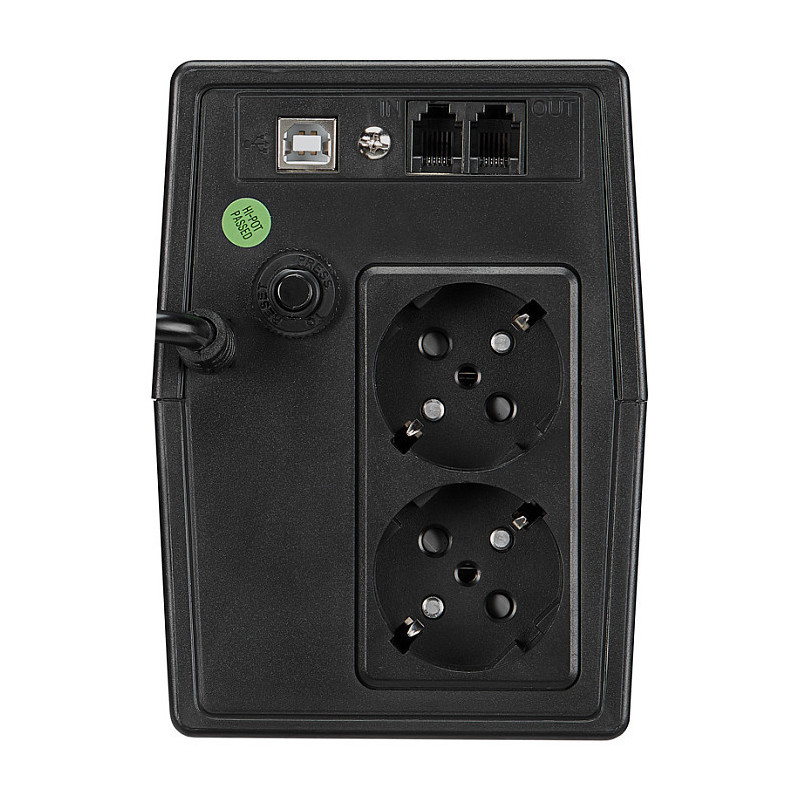

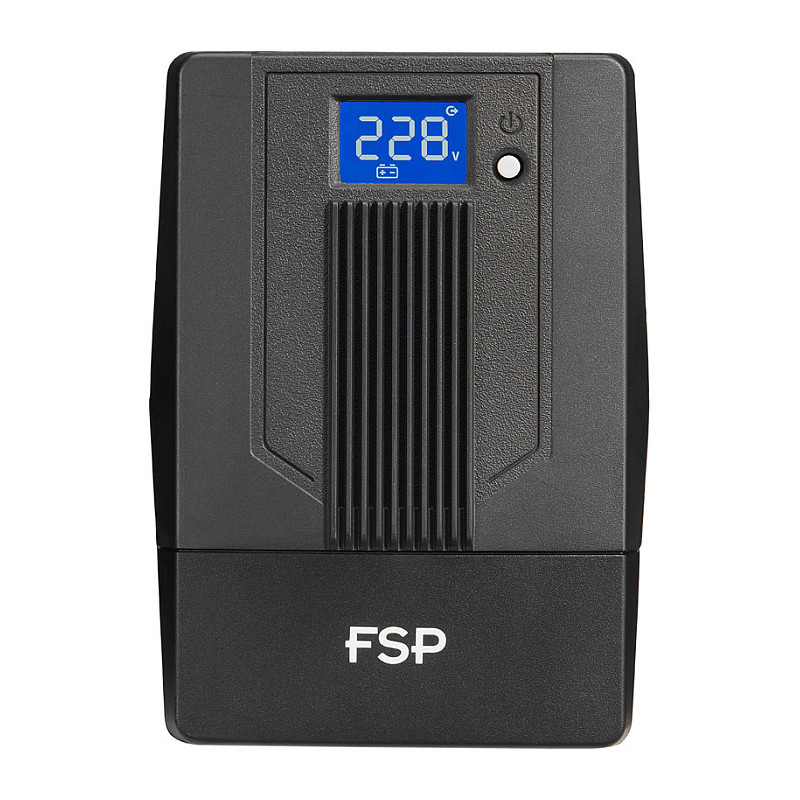

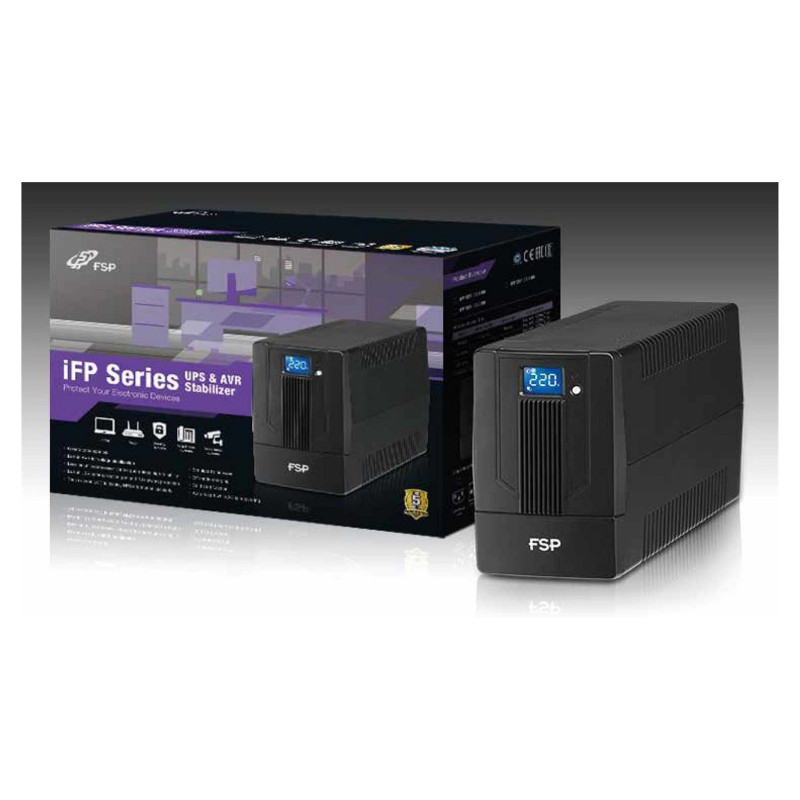

FSP iFP 800 uninterruptible power supply (UPS)

FSP iFP 800. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time (90%): 4 h. Form factor: Mini Tower, Product colour: Black, Control type: Buttons. Compliance certificates: CE, cTUVus

The iFP series is equipped with automatic voltage regulation to reduce the impact of unstable voltage on equipment. The intelligent UPS' functions can also provide power during outages, and the battery automatically charges when power is restored. FSP's intelligent UPS can provide equipment with an uninterrupted supply of power at any time.

Features

UPS topology: Line-Interactive
Output power capacity: 0.8 kVA
Output power: 480 W
Waveform: Sine
Input operation voltage (min): 140 V
Input operation voltage (max): 290 V
Input frequency: 50/60 Hz
Output operation voltage (min): 110 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Output voltage regulation: 10%
Feature: Automatic Voltage Regulation (AVR)
Response time: 6 ms
Noise level: 40 dB
Power protection features: Battery discharge, Overcharge, Overload
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Feature: Auto-restart

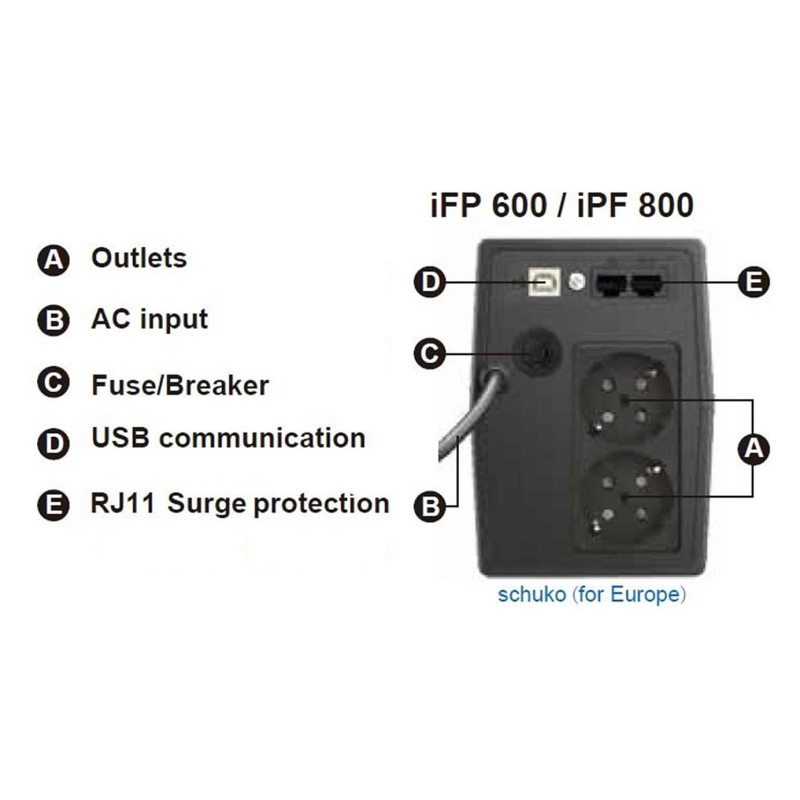

Ports & interfaces

AC outlet types: Type F
AC outlets quantity: 2 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Ethernet LAN (RJ-45) ports: 2

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 1
Battery recharge time(90%): 4 h

Design

Form factor: Mini Tower
Product colour: Black
Control type: Buttons
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, cTUVus

Packaging content

Feature: Batteries included
Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 101 mm
Depth: 300 mm
Height: 142 mm
Weight: 4.9 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Packaging content: UPS & user manual
