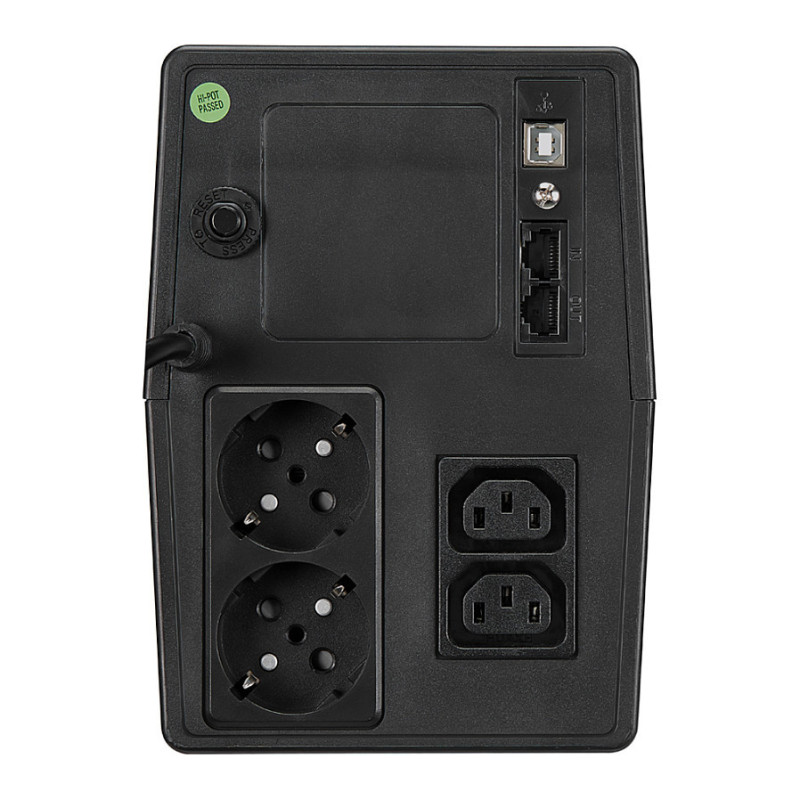

FSP iFP 1500 uninterruptible power supply (UPS)

FSP iFP 1500. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 900 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Mini Tower, Product colour: Black, Control type: Buttons. Width: 130 mm, Depth: 320 mm, Height: 182 mm

The iFP series is equipped with automatic voltage regulation to reduce the impact of unstable voltage on equipment. The intelligent UPS' functions can also provide power during outages, and the battery automatically charges when power is restored. FSP's intelligent UPS can provide equipment with an uninterrupted supply of power at any time.

Features

UPS topology: Line-Interactive
Output power capacity: 1.5 kVA
Output power: 900 W
Waveform: Sine
Input operation voltage (min): 140 V
Input operation voltage (max): 290 V
Input frequency: 50/60 Hz
Output operation voltage (min): 110 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Output voltage regulation: 10%
Feature: Automatic Voltage Regulation (AVR)
Response time: 6 ms
Noise level: 40 dB
Power protection features: Battery discharge, Overcharge, Overload
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Feature: Auto-restart

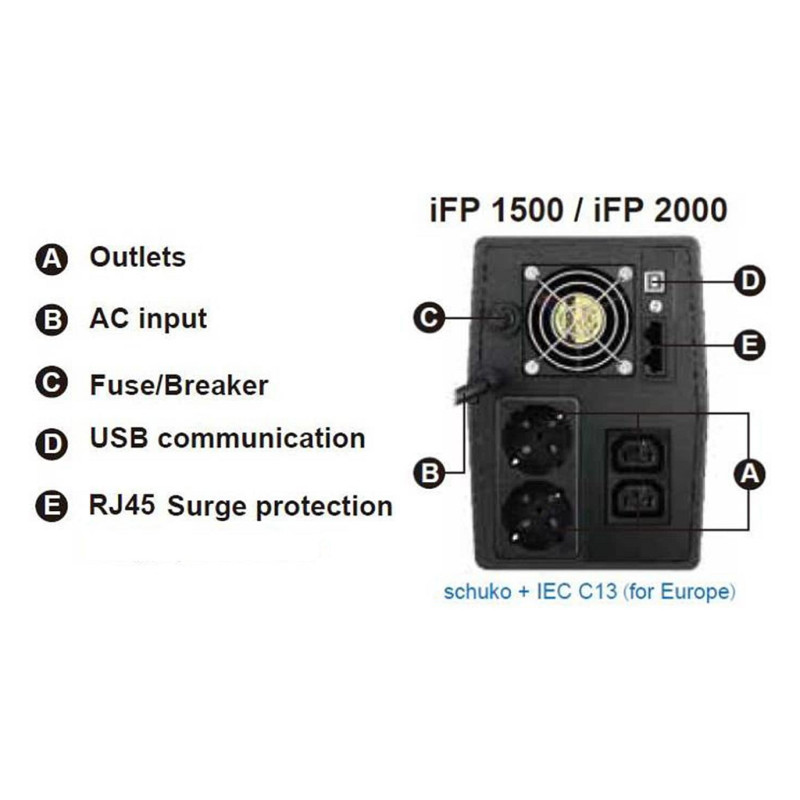

Ports & interfaces

AC outlet types: Type F
AC outlets quantity: 2 AC outlet(s)
Number of output IEC jumpers: 2
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Ethernet LAN (RJ-45) ports: 2

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 2
Feature: Cold start

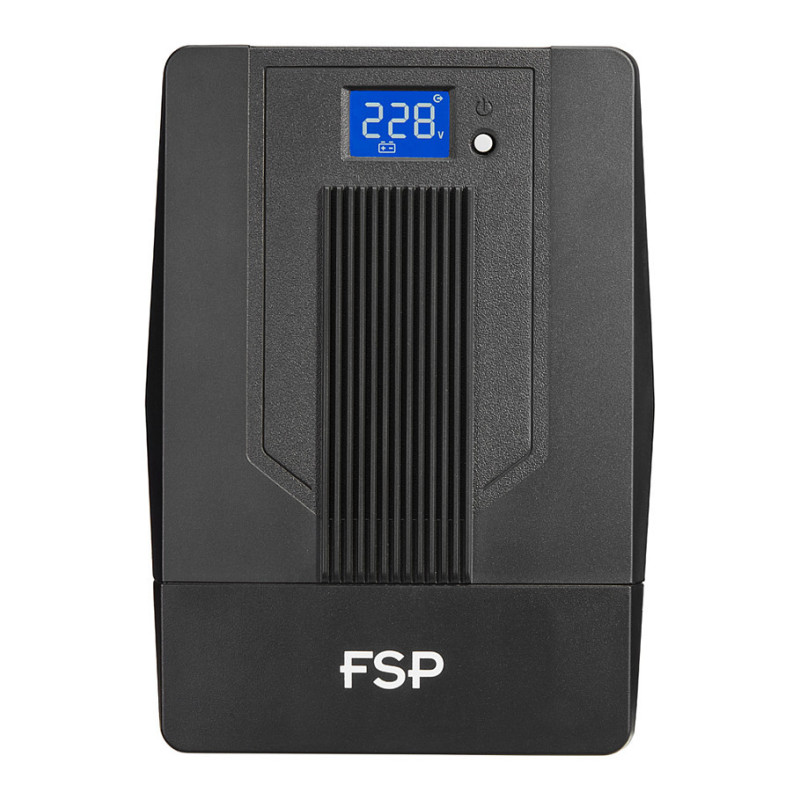

Design

Form factor: Mini Tower
Product colour: Black
Control type: Buttons
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Packaging content

Feature: Batteries included
Feature: Manual

Weight & dimensions

Width: 130 mm
Depth: 320 mm
Height: 182 mm
Weight: 10.4 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Packaging content: UPS & user manual
