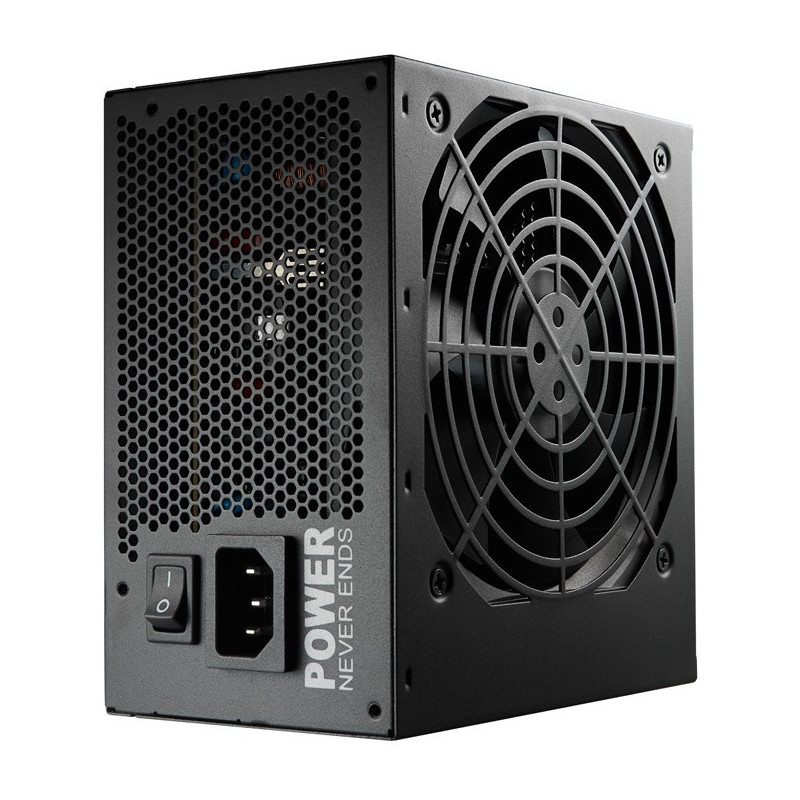

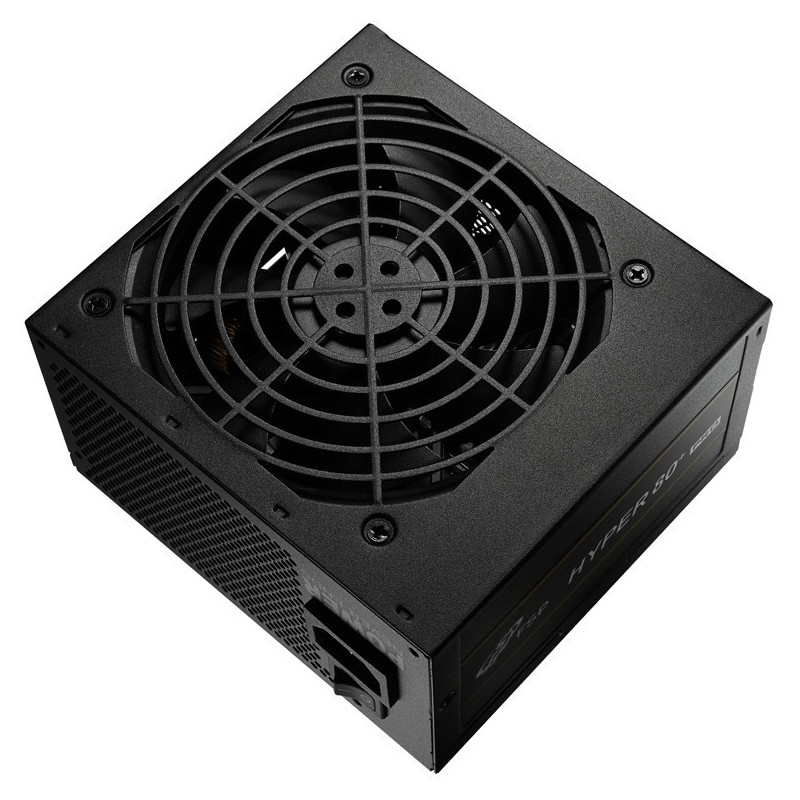

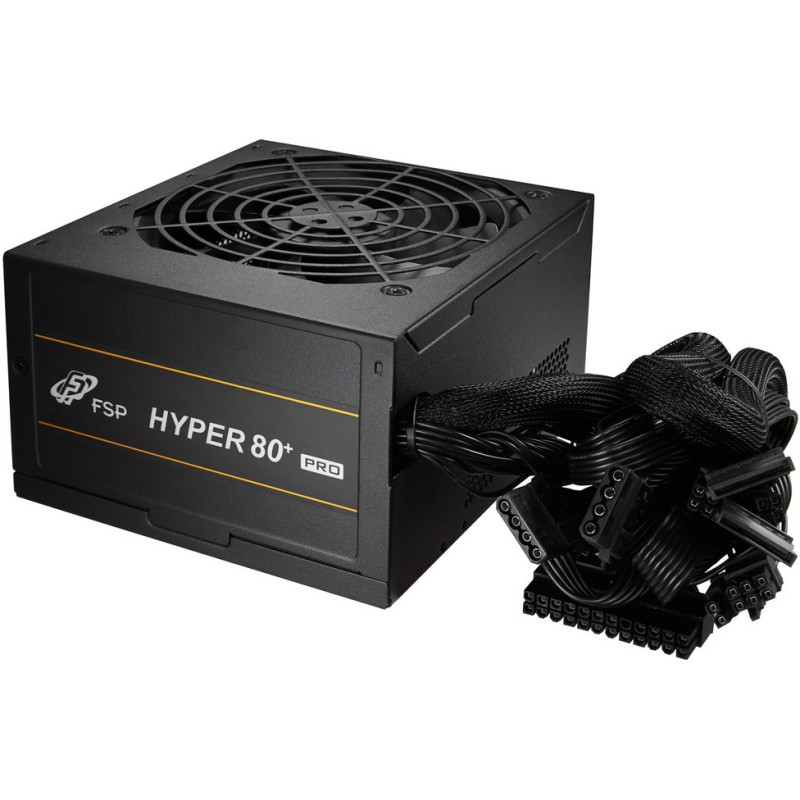

FSP HYPER 80+ PRO 450W power supply unit

FSP HYPER 80+ PRO 450W Power supply unit ATX ATX3.1 Black. Total power: 450 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: EuP

80 Plus® 230V EU White Certification
HYPER 80+ PRO series, 80 PLUS® 230V EU White certified, saves energy through its high efficiency up to 82% and excesses the standard through its high efficiency up to 85%.

DC-to-DC Module Design
With a 12V SR circuit and the DC to DC structure, HYPER 80+ PRO series ensure you outstanding conversion efficiency and provides stable output voltage.

450V 105C, Heavy-duty capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Energy Related ErP/Eup 2013
Green Power! The total AC power consumption of the completed system is less than 5Vsb rail to support the new EU Regulation ErP 2013 for modern day systems.

Keep in Compliance IEC 62368
FSP Group provides a full kinds of additional safety approvals to keep designs ahead of the changing regulations. FSP has upgraded the majority of power supplies to the new IEC 62368 standard for your gaming rigs.

Intelligent Fan Speed Control
An advanced thermal control fan makes optimal cooling and reduces noise under maximum operation.

120mm fan and heat dissipation design to spin quietly and keep cooling under maximum operation.

All Black Round Cables
The all black coating round cables give your system a superior look rather so many entry-level power supplies.

Power

Total power: 450 W
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Input current: 3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 85 W
Combined power (+12V): 450 W
Combined power (+5V): 85 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 16 A
Max output current (+12V): 37.5 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 17 ms
Efficiency: 88%
Power protection features: Over current, Over power, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 5
Peripheral (Molex) power connectors (4-pin): 2
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: ATX Power connector (24-pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Feature: PCI Express connector
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: Sleeve

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Certificates

Compliance certificates: EuP

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.24 kg

Technical details

Sustainability certificates: ErP
