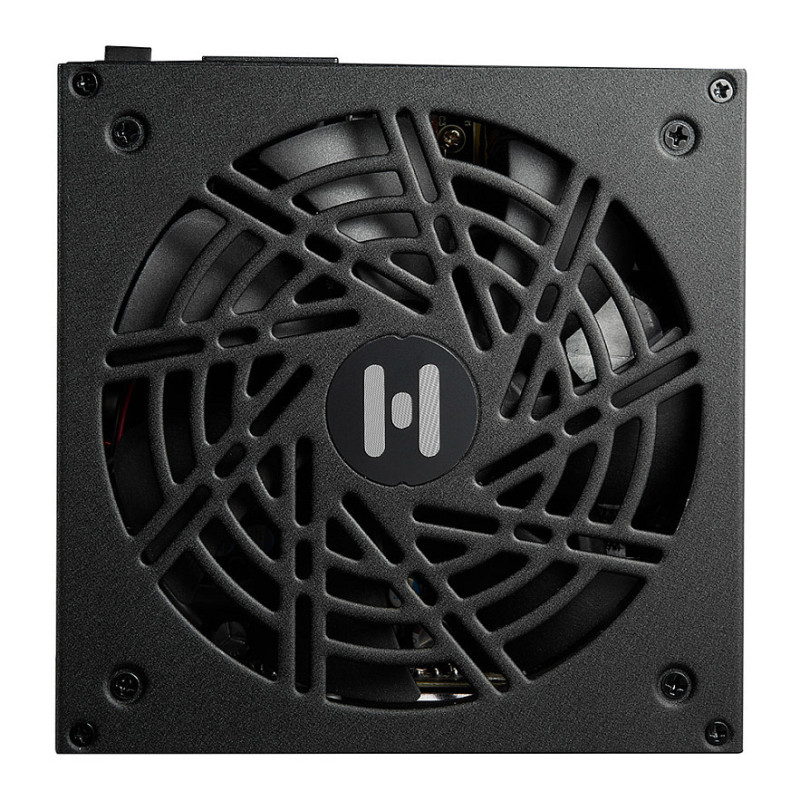

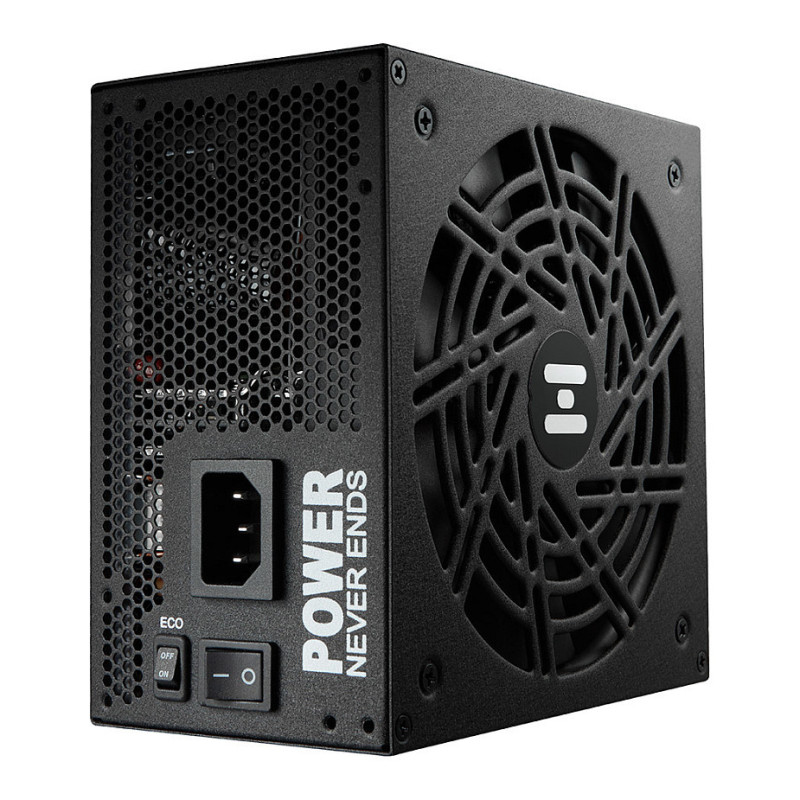

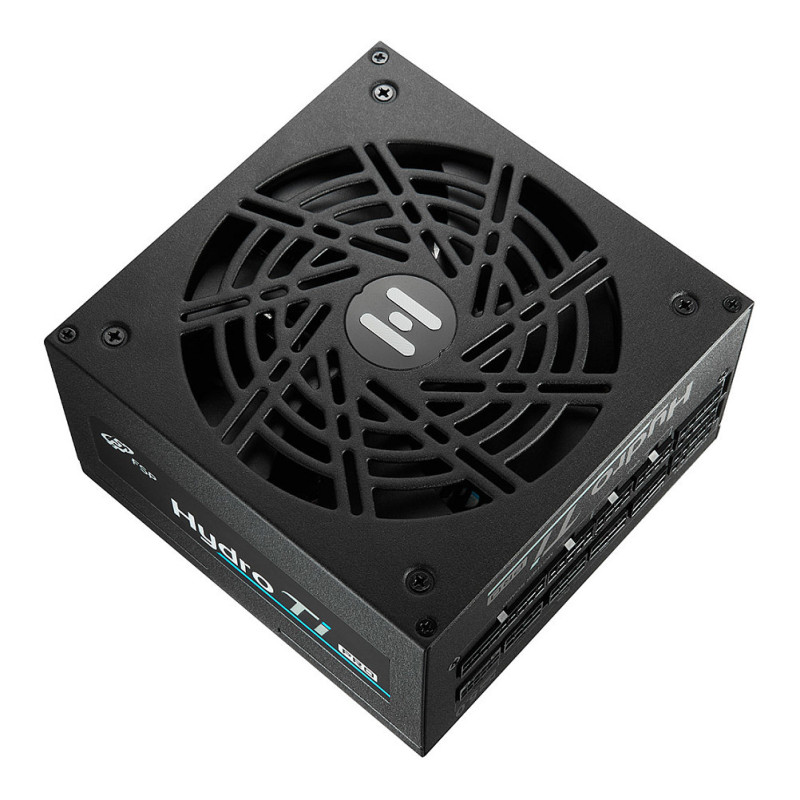

FSP Hydro Ti PRO 1000W power supply unit

FSP Hydro Ti PRO 1000W Power supply unit ATX ATX3.1 Black. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA

New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.

Ultra Power Density
Compared to general high-efficiency & high wattage PSU 170mm length, Hydro Ti PRO series delivers high power with shorter size of 150mm.

80 Plus® Titanium Certification
Hydro Ti PRO series is a power supply with 80 PLUS® Titanium provides over 94% efficiency at the load of 50 % and Cybenetics-certified for lower power consumption.

Lambda A++ Certification
Hydro Ti PRO ATX3.0(PCIe5.0) 1000W got Lambda A++ noise rating. By averaging the noise measurements that take from Cybenetics test results.

Smarter, Quieter and Longer Lasting Eco Friendly Fan
Under 50% loading, you will enjoy Zero RPM experience when eco semi-fanless fan control switch is on, , and get the benefit of long lifespan from a 135mm fluid dynamic bearing fan.

Off-Wet, Off-Dust and Off-Stain Coating
Covered with exclusive conformal coating which guarantees to offer better and reliable performance in harsh environments and is tested to work in environments up to 95% relative humidity.

LLC Topology
Zero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.

450V, 105°C Japanese E-Capacitors
Hydro Ti PRO series uses Japanese bulk capacitors to ensure a longer lifetime and protect your equipment from the infamous capacitor leakage problem.

Unleash +12V Power Output
VGA card is a power-hungry component that needs most power. A single +12V rail design can deliver stable power and avoid any overloading conditions.

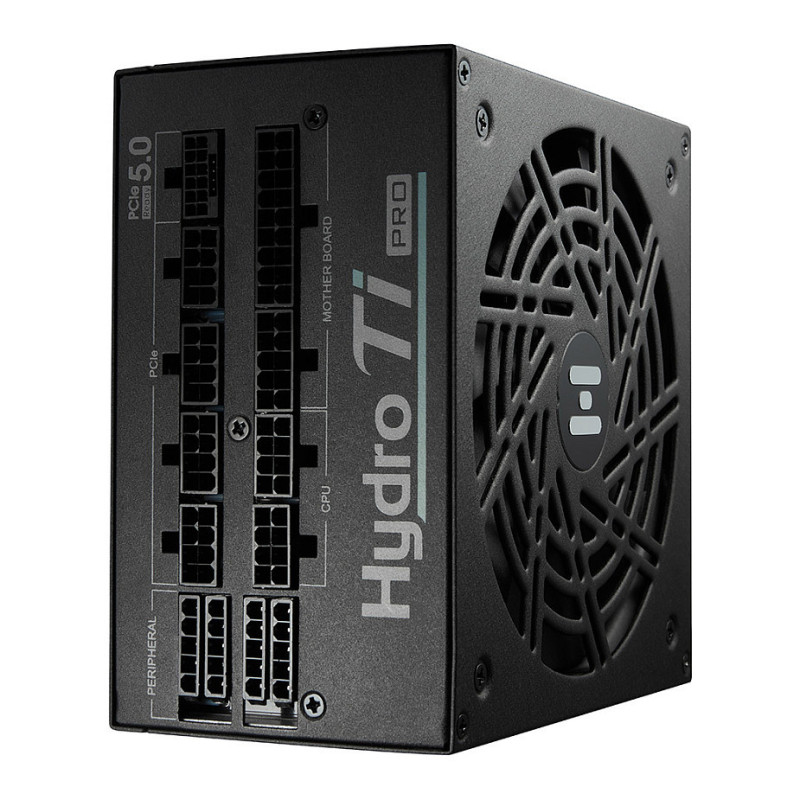

Fully Modular Design
Fully-modular design not just for easier installation, but also provides your system a neat and tidy look.

Stylish & Changeable Side Sticker
Includes unique side stickers for DIY enthusiasts and gamers.

Power

Total power: 1000 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 13-6 A
Combined power (+3.3V): 120 W
Combined power (+12V): 1000 W
Combined power (+5V): 120 W
Combined power (-12V): 18.6 W
Combined power (+5Vsb): 18.6 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83.33 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 94%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 12
Peripheral (Molex) power connectors (4-pin): 4
PCI Express power connectors (6+2 pin): 5
PCI Express power connectors (12+4 pin) cable length: 700 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Titanium
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
EPS version: 2.92
Noise level: 15 dB
Bearing technology: FDB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 13.5 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 150 mm
Depth: 150 mm
Height: 86 mm
