FSP FP 1000 uninterruptible power supply (UPS)

FSP FP 1000. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 600 W. AC outlet types: Type F, AC outlets quantity: 4 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time: 6 h. Form factor: Mini Tower, Product colour: Black. Compliance certificates: CE, EAC

The line-interactive FP Series UPS with a compact size can provide stable power protection against surges and spikes. It is ideal for PC users or small business companies, as well as for small telecom applications.
Its embedded microprocessor controller guarantees high reliability
It can automatically restart while AC power is recovering. With a Simulated sine wave, off-mode charging, and cold start function, it will be a good choice.

Features

UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 600 W
Waveform: Sine
Input operation voltage (min): 162 V
Input operation voltage (max): 290 V
Input frequency: 50/60 Hz
Output operation voltage (min): 100 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Output voltage regulation: 10%
Feature: Automatic Voltage Regulation (AVR)
Response time: 6 ms
Noise level: 40 dB
Power protection features: Battery discharge, Overcharge, Overload
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Feature: Auto-restart

Ports & interfaces

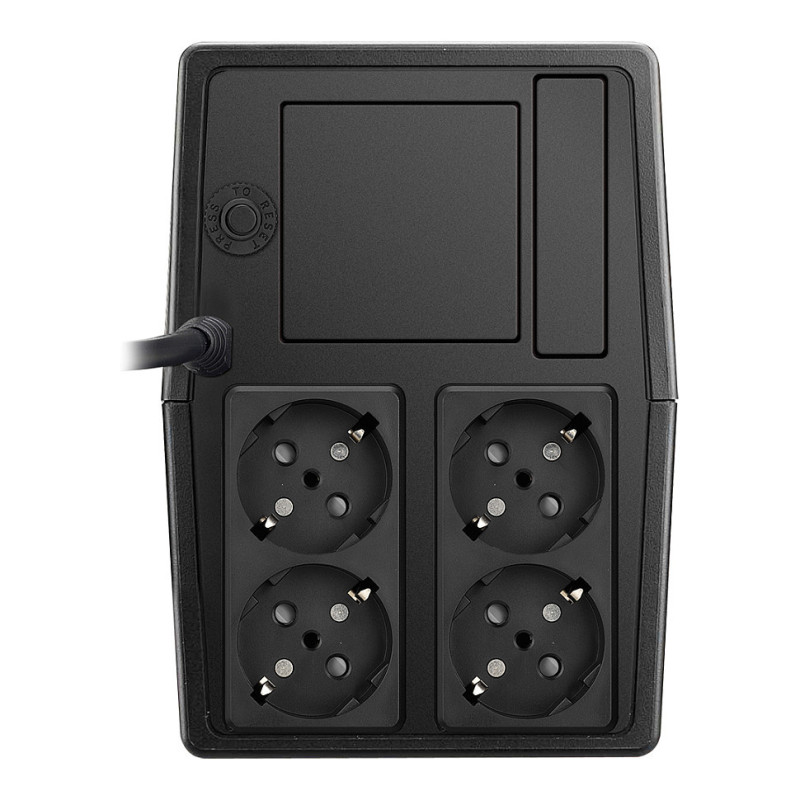

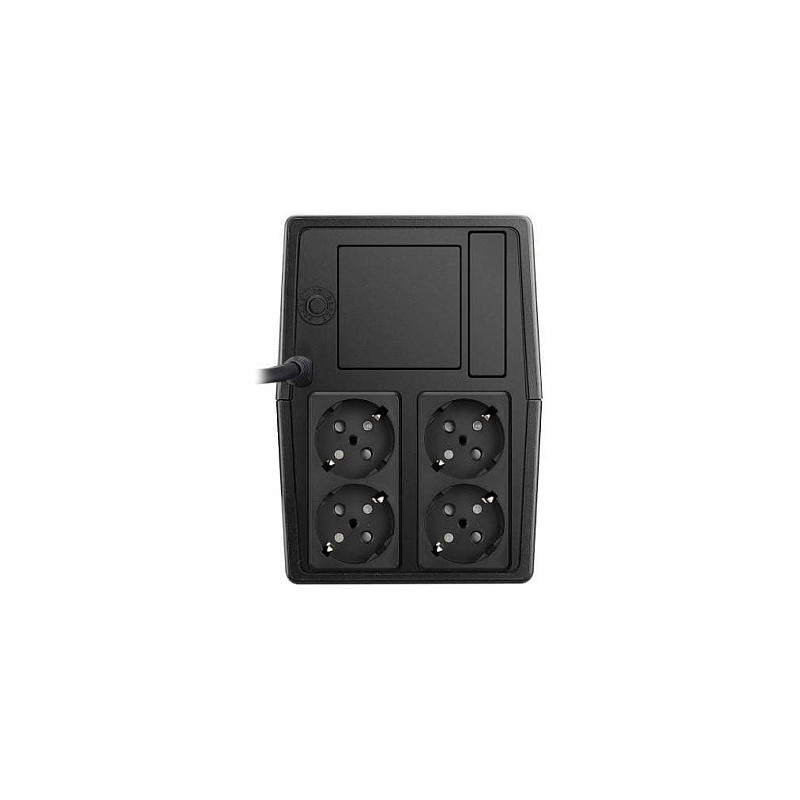

AC outlet types: Type F
AC outlets quantity: 4 AC outlet(s)

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries supported: 2
Battery recharge time: 6 h
Battery recharge time(90%): 6 h
Feature: Automatic battery test
Feature: Cold start
Feature: Off-mode charging

Design

Form factor: Mini Tower
Product colour: Black

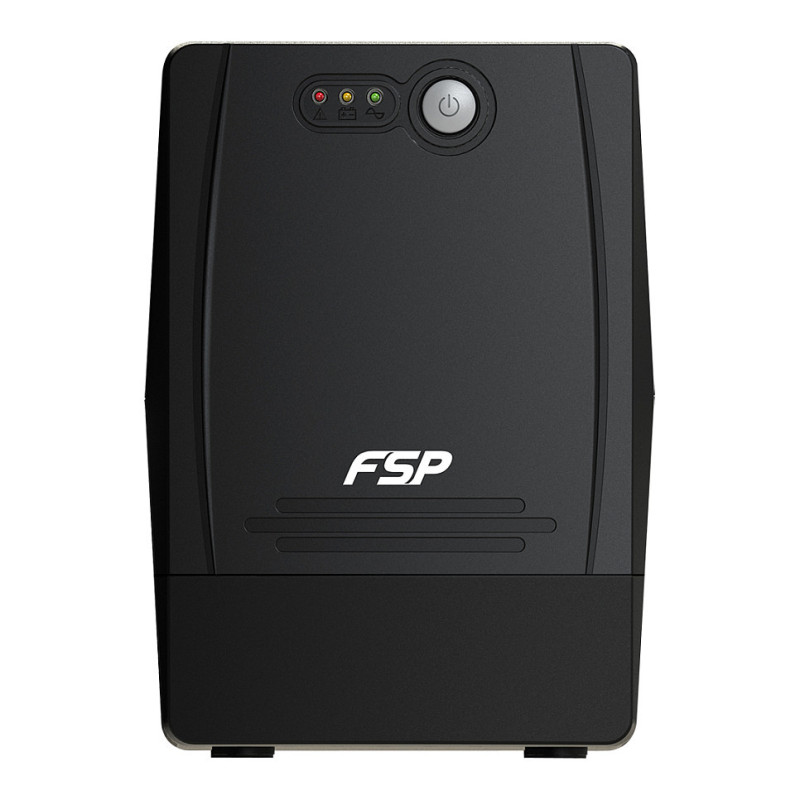

LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, EAC

Packaging content

Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 130 mm
Depth: 320 mm
Height: 182 mm
Weight: 8.2 kg

Packaging data

Package width: 190 mm
Package depth: 390 mm
Package height: 275 mm
Package type: Box

Logistics data

Harmonized System (HS) code: 85078000

Other features

Packaging content: UPS & user manual
