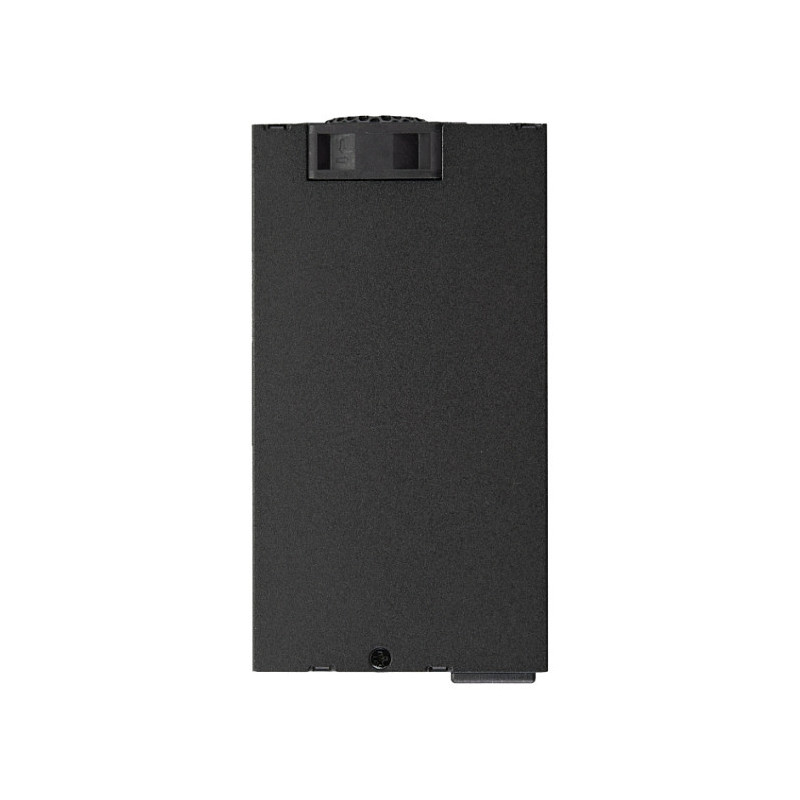

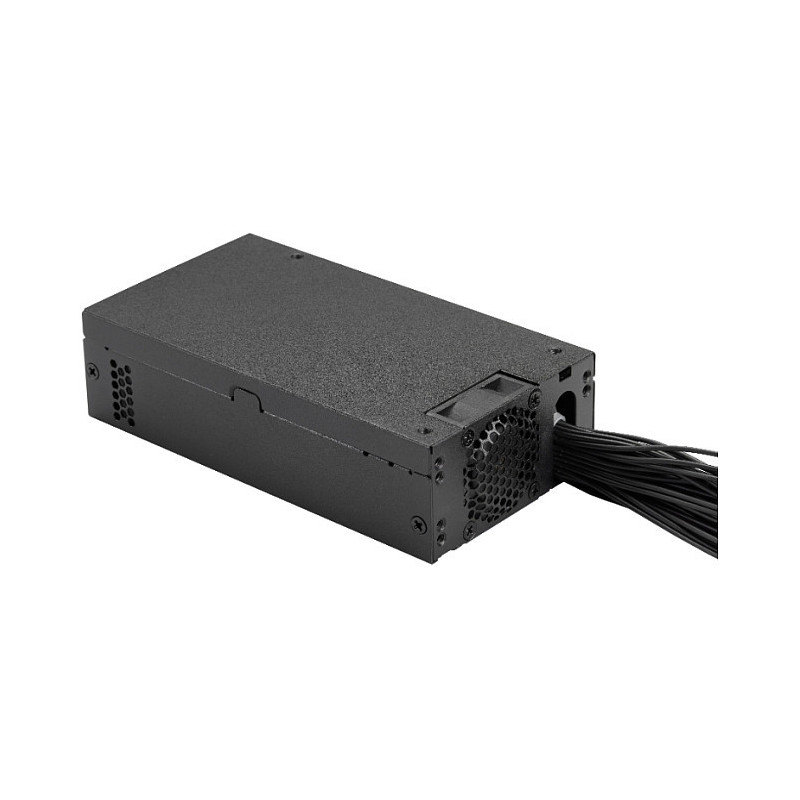

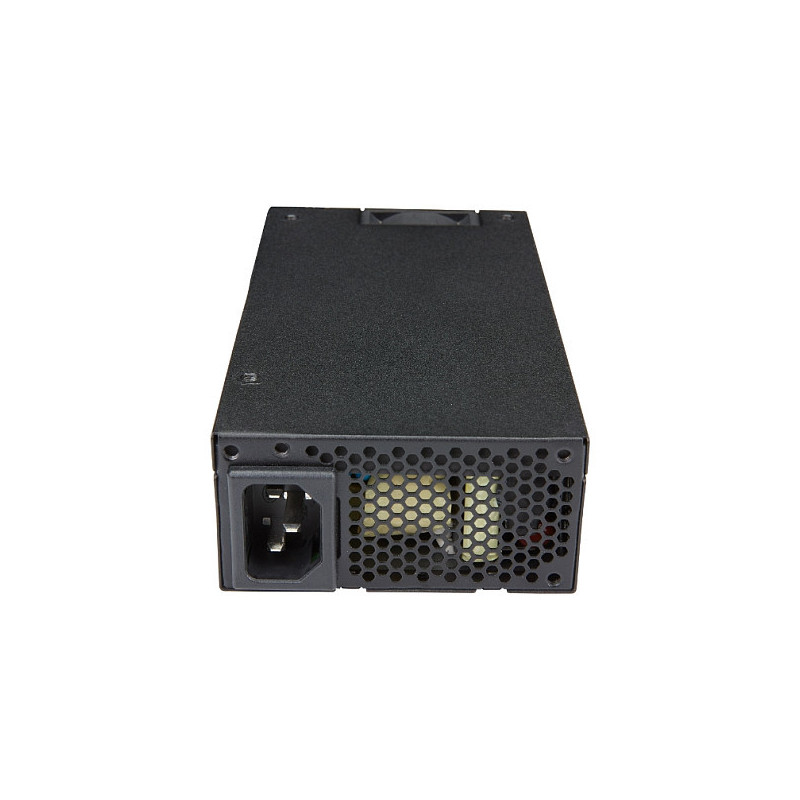

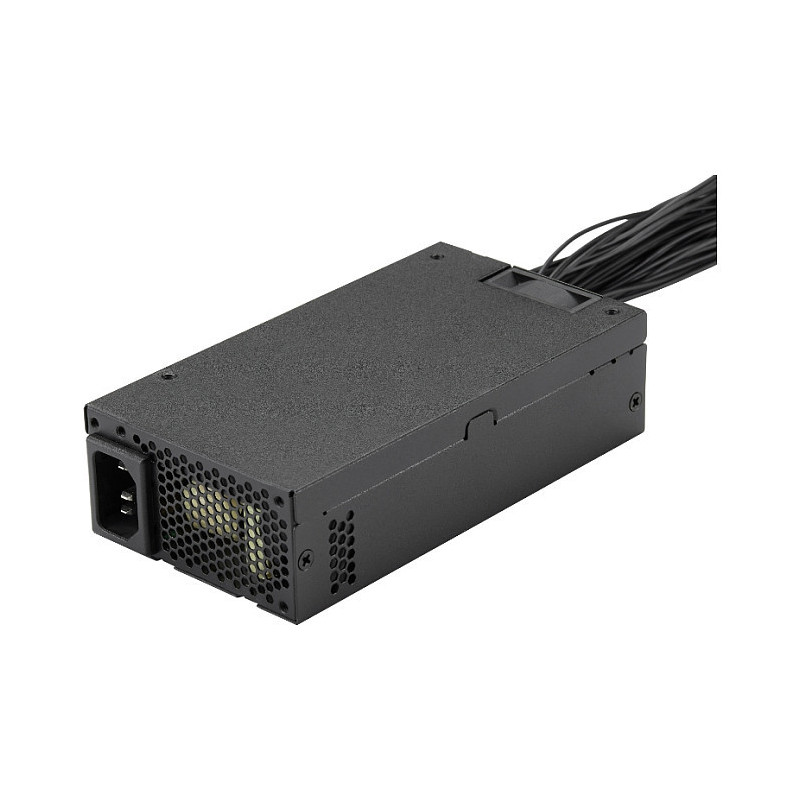

FSP FlexGURU PRO 500W power supply unit

FSP FlexGURU Pro 500W Power supply unit FLEX ATX ATX2.52 / Flex ATX1.23 Black. Total power: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: NAS/storage server, Power supply unit (PSU) form factor: 1U, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 4 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA

Excellent Thermal Performance
The FlexGURU PRO series offers an inner 40mm fan design, which reduces noise and allows for maximum cooling at all times.

All Black Round Cables
The all black round cables offers your system a more sophisticated look compared to other entry-level power supplies.

High Efficiency Conversion 90%
FlexGURU FIX
90% Efficiency Conversion
The efficiency of your power supply is very important since it directly affects your system's performance. The FlexGURU PRO 500W has a guaranteed typical efficiency of 90% and offers a high conversion power to power your system.

FlexGURU FIX table
Multifunctional Design
The FlexGURU PRO series comes with the included 1U bracket which turns the FlexGURU PRO 500W into a 1U IPC power supply.

Compliance with IEC 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.

FlexGURU FIX
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), full guardian circuit protection to keep your hardware safe.

Japanese Electrolytic Capacitors
The FlexGURU PRO series utilizes main Japanese Electrolytic Capacitors to offer stable outputs and long-term reliability.

Power

Total power: 500 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 8-4 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 90 W
Combined power (+5V): 90 W
Max output current (+3.3V): 14 A
Max output current (+12V): 41 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

Ports & interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 2
Feature: EPS power connector (8-pin)
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
Feature: ATX Power connector (24-pin)
Floppy drive power connector: 1
Feature: Floppy disk drive connector
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: NAS/storage server
Power supply unit (PSU) form factor: 1U
Bearing technology: Ball bearing

Design

Product colour: Black
Cooling type: Active
Fan diameter: 4 cm
Number of fans: 1 fan(s)

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 40.5 mm
Depth: 150 mm
Height: 81.5 mm

Logistics data

Warranty period: 5 year(s)
