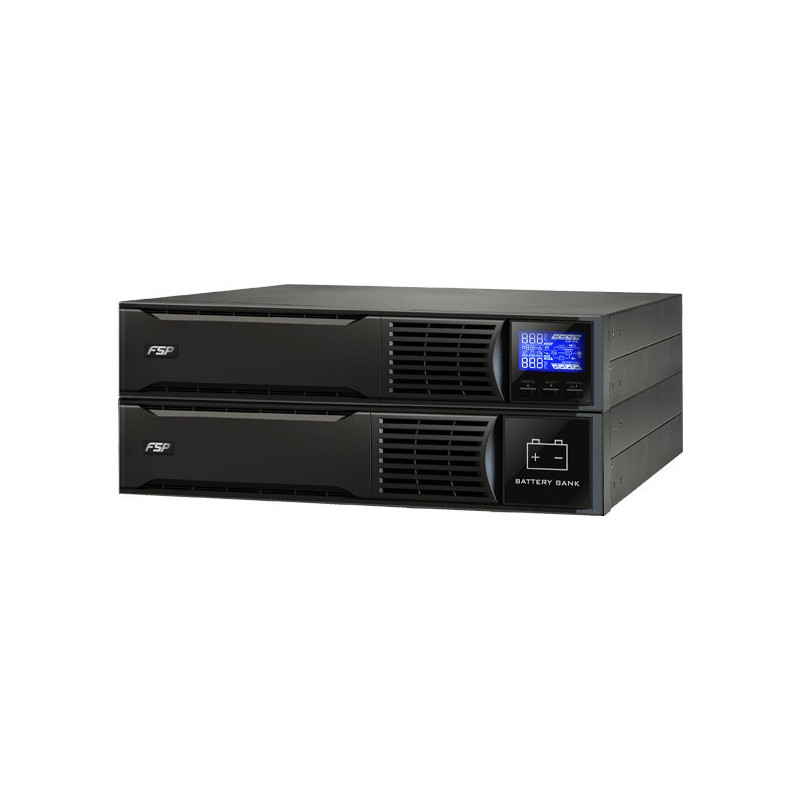

FSP Eufo 2k uninterruptible power supply (UPS)

FSP Eufo 2k. UPS topology: Line-Interactive, Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time: 4 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, EAC

FSP Eufo Series rating is from 1.1KVA to 3.0KVA and implemented protect functions for power failures, surge overvoltage and brownout. Rack & Tower with easy-shift LCD design is flexible for installation. Moreover, this series built/in Efficiency corrective Optimizer (ECO) that the efficiency is up to 98% for more energy saving. The application is suitable for networking, telecom, server and mission/critical applications.

Features

UPS topology: Line-Interactive
Output power capacity: 2 kVA
Output power: 1800 W
Waveform: Pure sine
Input operation voltage (min): 162 V
Input operation voltage (max): 290 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Output voltage regulation: 1.5%
Feature: Automatic Voltage Regulation (AVR)
Response time: 6 ms
Efficiency (ECO mode): 97%
Efficiency (Battery mode): 91%
Efficiency (Line Mode): 95%
Power factor: 0.99
Crest factor: 3:1
Feature: Emergency Power Off (EPO)
Total Harmonic Distortion (THD) (linear load): 2%
Total Harmonic Distortion (THD) (non-linear load): 5%
Noise level: 45 dB
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Power source type: AC
Feature: Detachable power cord

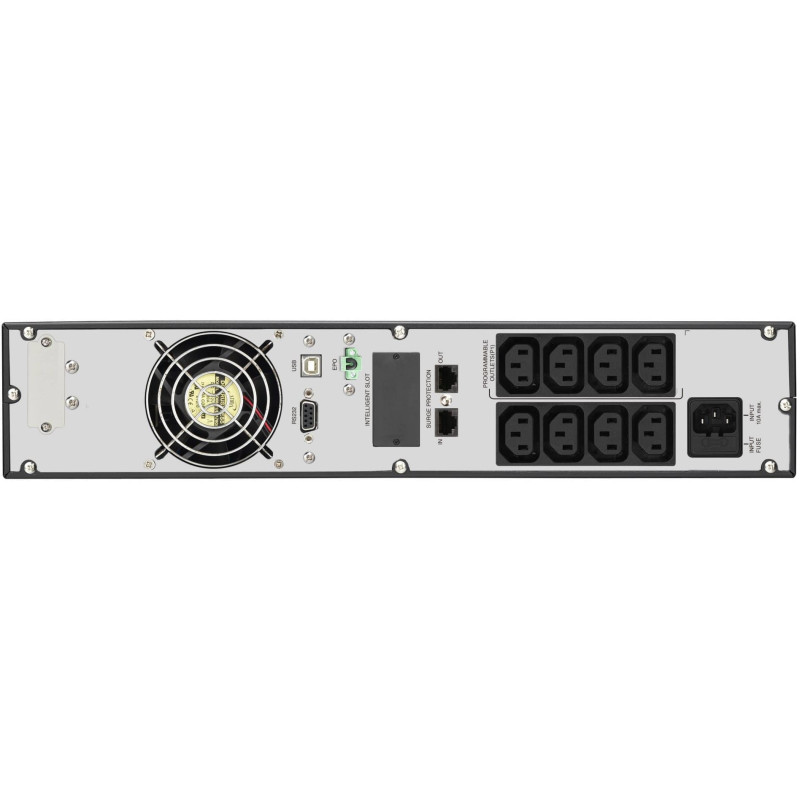

Ports & interfaces

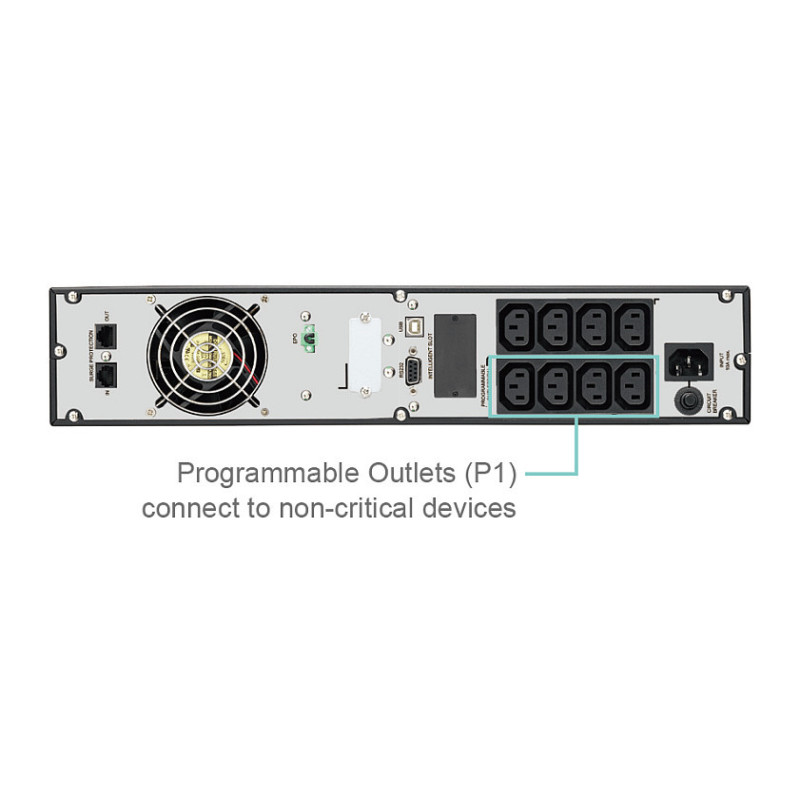

AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 8 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1
Feature: Emergency Power Off (EPO) connector

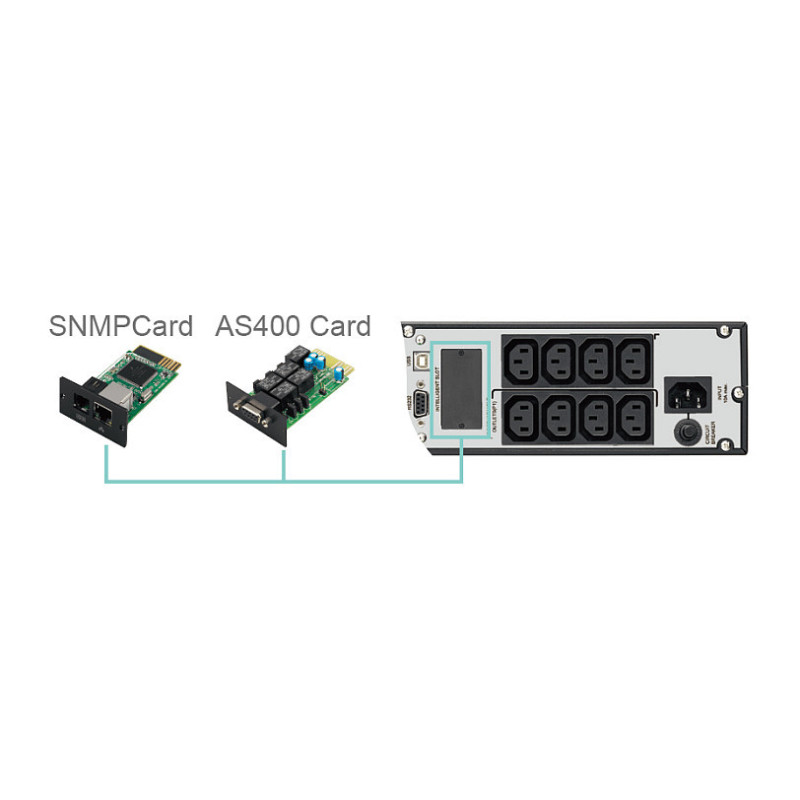

Feature: SmartSlot

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of battery cells: 4
Battery recharge time: 4 h
Battery recharge time(90%): 4 h
Charging current: 1.5 A

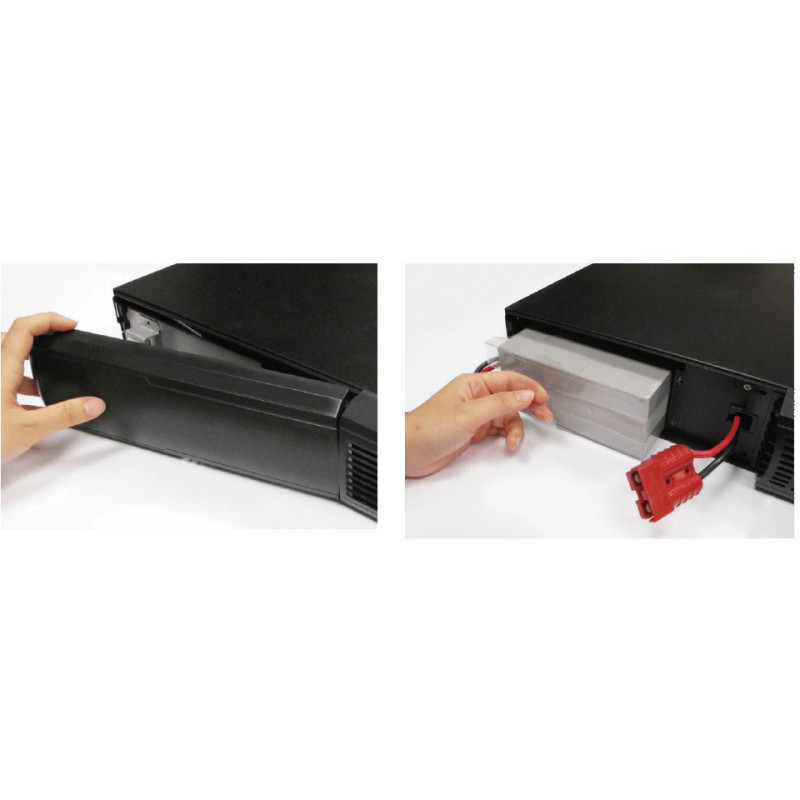

Feature: Hot-swap battery

Design

Form factor: Rackmount/Tower
Rack capacity: 2U
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, EAC

Packaging content

Feature: Batteries included
Feature: Rack mount kit
Cables included: Input power cable, USB cable

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 438 mm
Depth: 510 mm
Height: 88 mm
Weight: 21.5 kg

Packaging data

Feature: Software CD

Other features

Number of phases: 1
Packaging content: UPS, user manual, software CD, EU cable, USB cable, tower stands, mounting ears & screws
