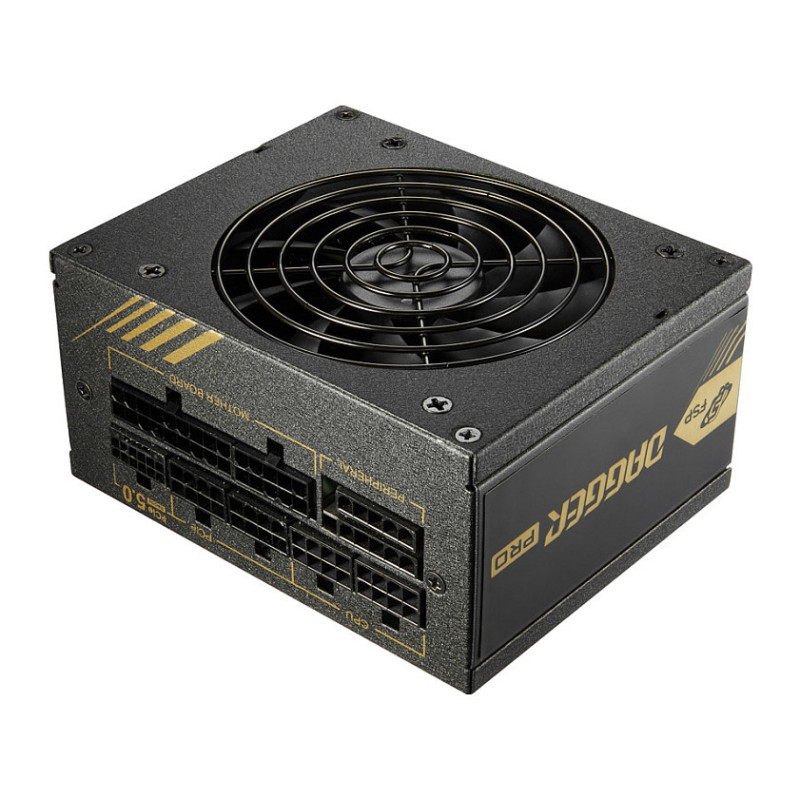

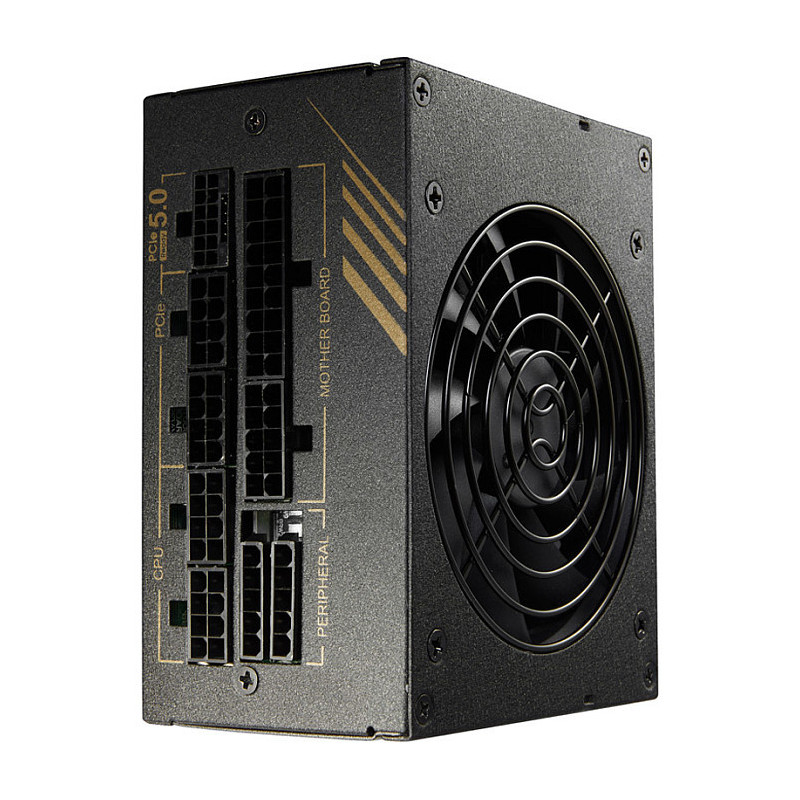

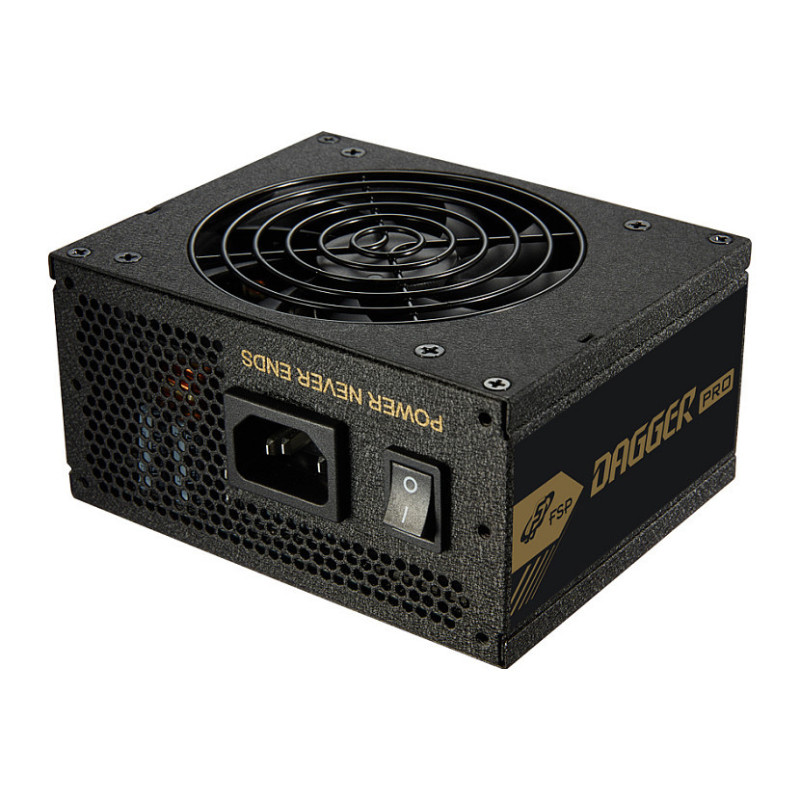

FSP DAGGER PRO ATX3.0(PCIe5.0) 850W power supply unit

FSP DAGGER PRO 850W Power supply unit SFX SFX3.3 Black. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 450 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA

Tiny but Powerful
The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

92mm Fan Optimized for Low-noise Operation
Dagger PRO is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.

80 Plus® Gold Certification
Dagger PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.

Powerful +12V Single Rail for your VGA
VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.

Supports High-end Motherboard
For gaming enthusiast, the DAGGER PRO 850W features dual CPU power connectors to support high-end motherboard and and provide stable power to the CPU for gaming enthusiast.

Japanese electrolytic capacitors
Dagger PRO series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 12-6 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 850 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.83 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

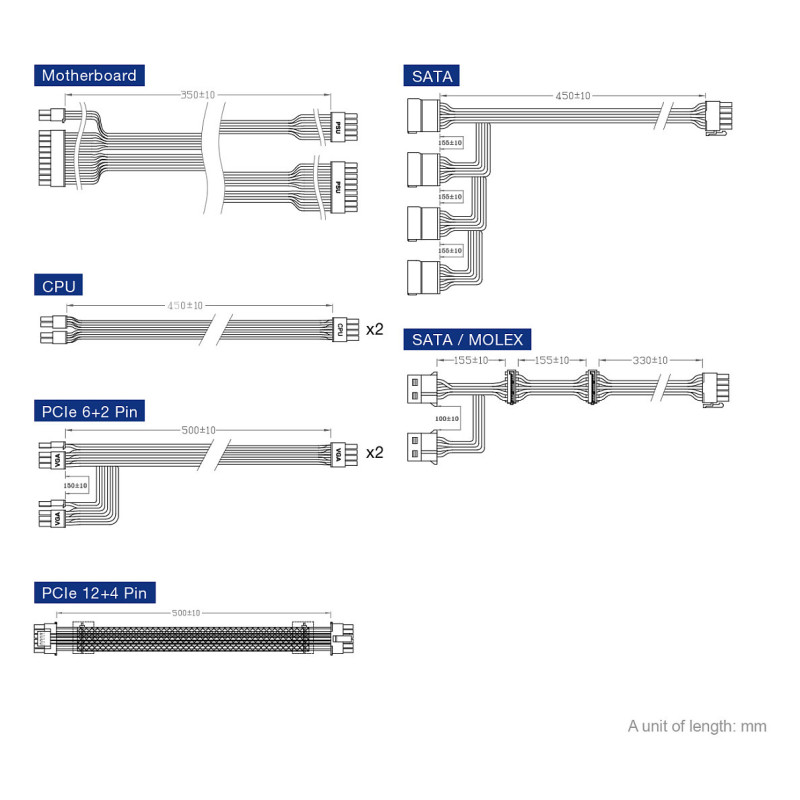

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 35 cm
Number of SATA power connectors: 6
SATA power cable length: 450 mm
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 2
PCI Express power connectors (12+4 pin): 1
PCI Express power connectors (12+4 pin) cable length: 500 mm
Feature: CPU power connector (4+4 pin)
CPU power cable length: 45 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 3.0
Bearing technology: Ball bearing

Design

Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Packaging content

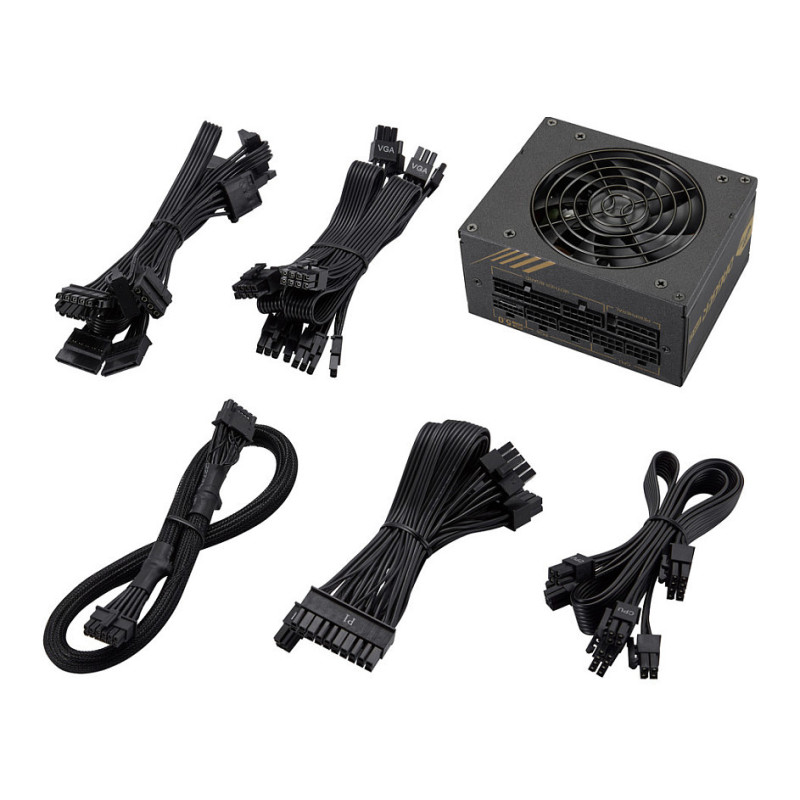

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width: 100 mm
Depth: 125 mm
Height: 63.5 mm

Logistics data

Warranty period: 7 year(s)
