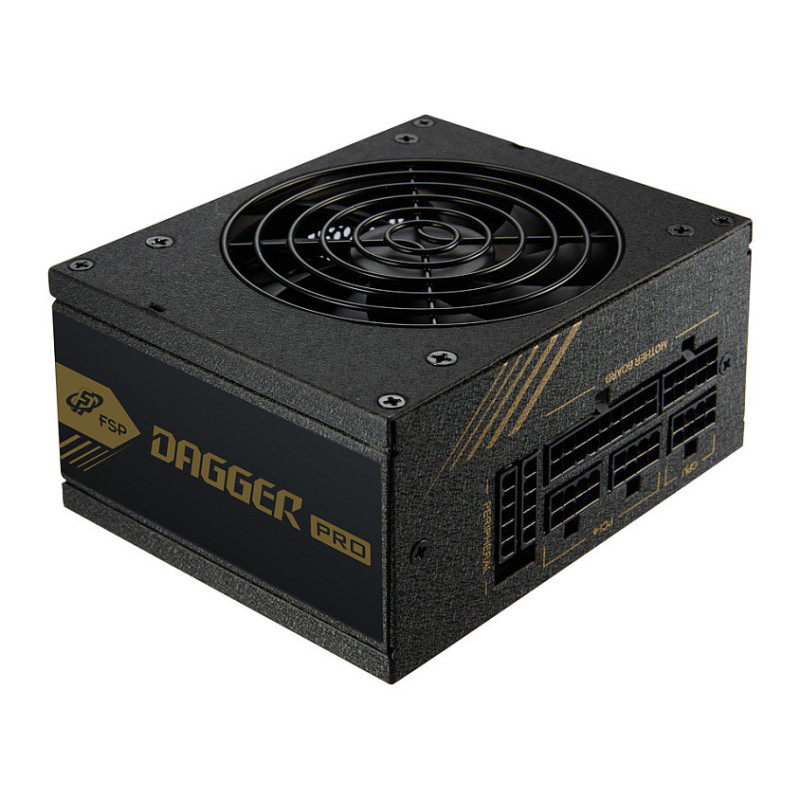

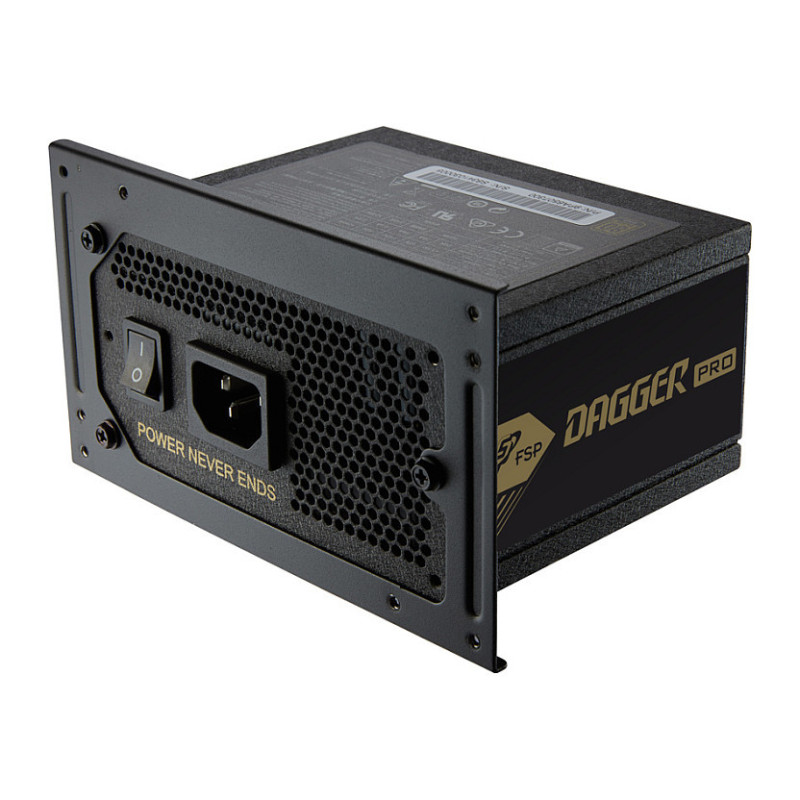

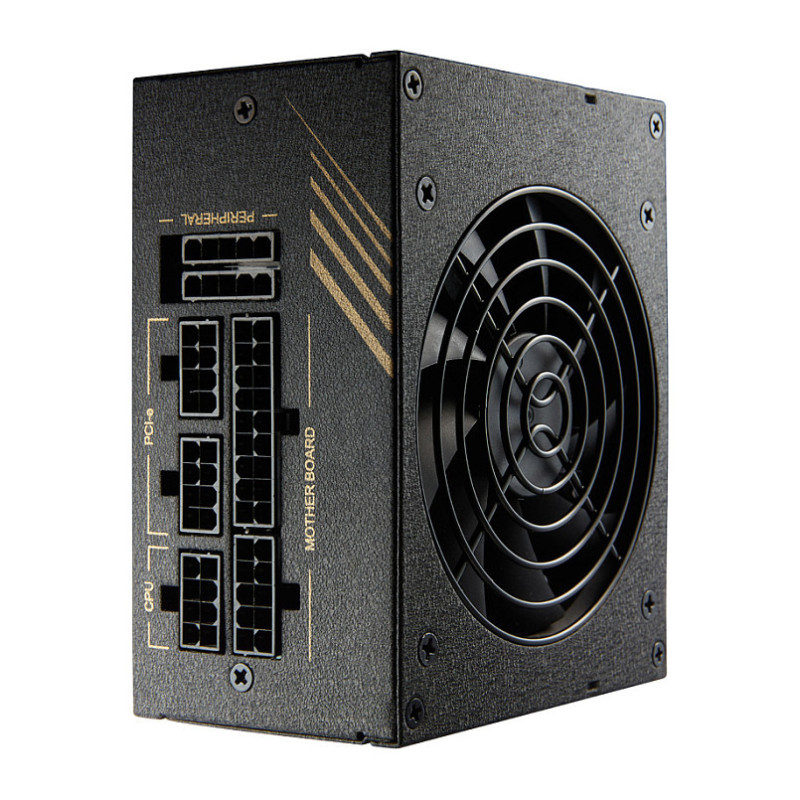

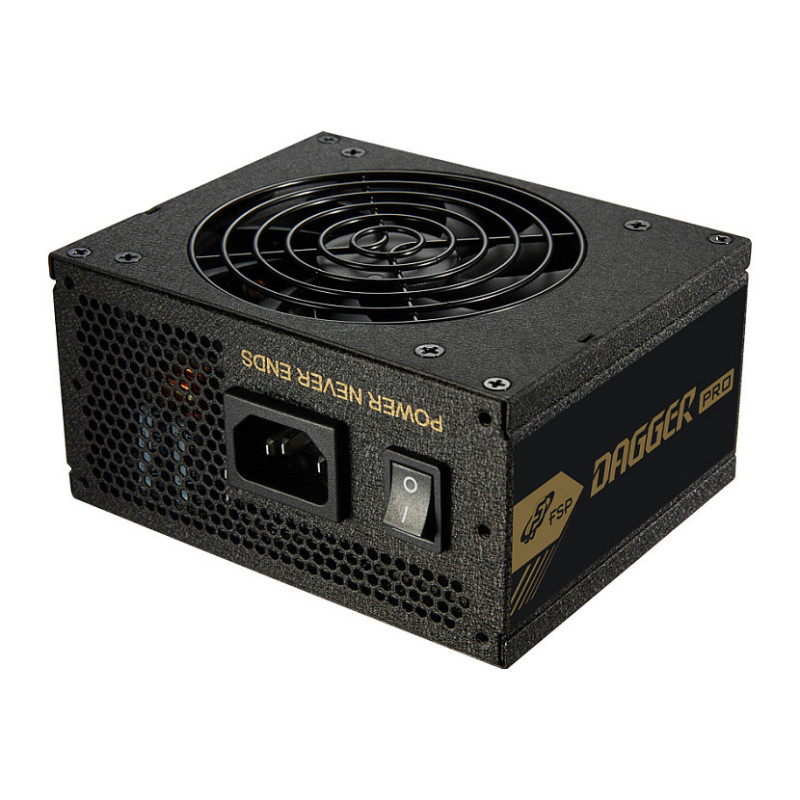

FSP DAGGER PRO 650W power supply unit

FSP DAGGER PRO 650W Power supply unit SFX SFX3.3 Black. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, CPU power cable length: 85 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Tiny but Powerful
The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.

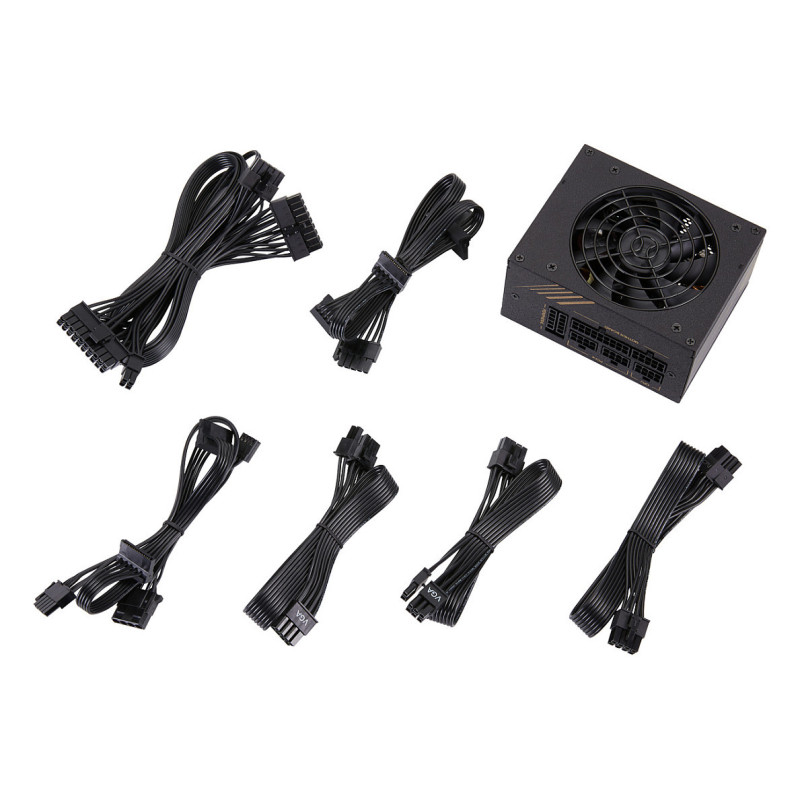

Advance Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.

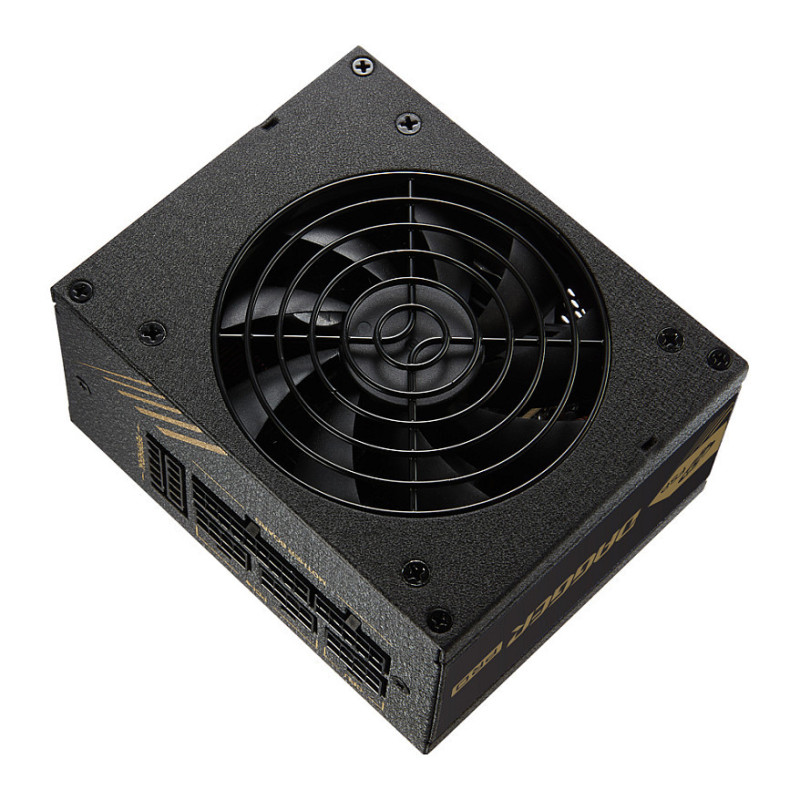

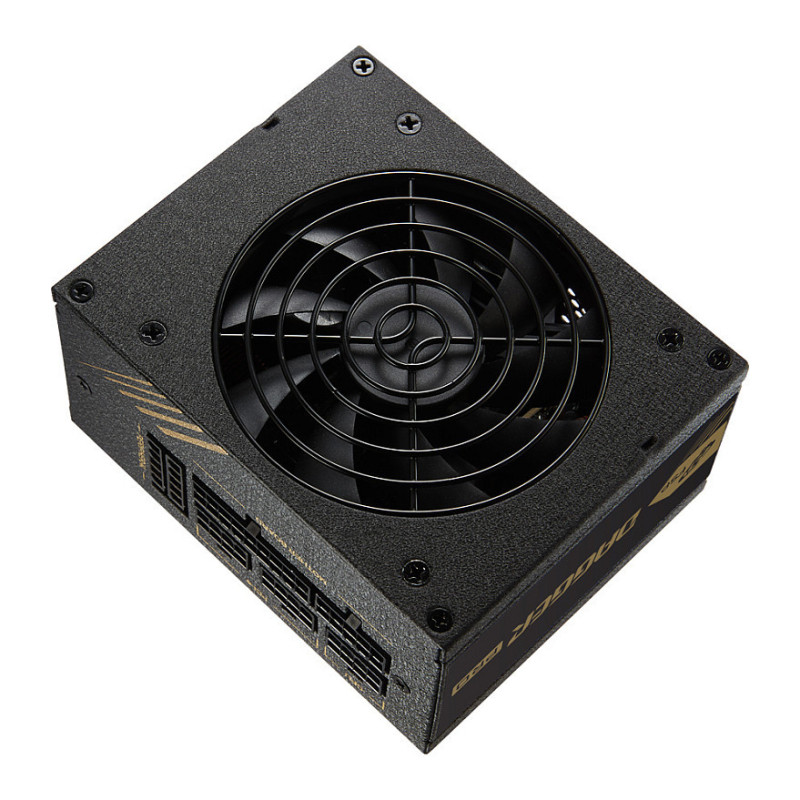

92mm Fan Optimized for Low-noise Operation
Dagger PRO is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.
80 Plus® Gold Certification
Dagger PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Powerful +12V Single Rail for your VGA
VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
Supports High-end Motherboard
For gaming enthusiast, the DAGGER PRO 650W features dual CPU power connectors to support high-end motherboard and and provide stable power to the CPU for gaming enthusiast.
Japanese electrolytic capacitors
Dagger PRO series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power change!

Power

Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Combined power (+3.3V): 120 W
Combined power (+12V): 648 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V): 54 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 5
Peripheral (Molex) power connectors (4-pin): 2
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
CPU power cable length: 85 cm
Floppy drive power connector: 1
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX
Silent mode: Yes
Noise level: 40 dB
Bearing technology: Ball bearing
Mean time between failures (MTBF): 200000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Fan location: Top
On/off switch: Yes

Packaging content

Cables included: CPU, PCIe, Peripheral (Molex), SATA

Weight dimensions

Width: 100 mm
Depth: 125 mm
Height: 63.5 mm

Logistics data

Warranty period: 7 year(s)
Harmonized System (HS) code: 84733020
