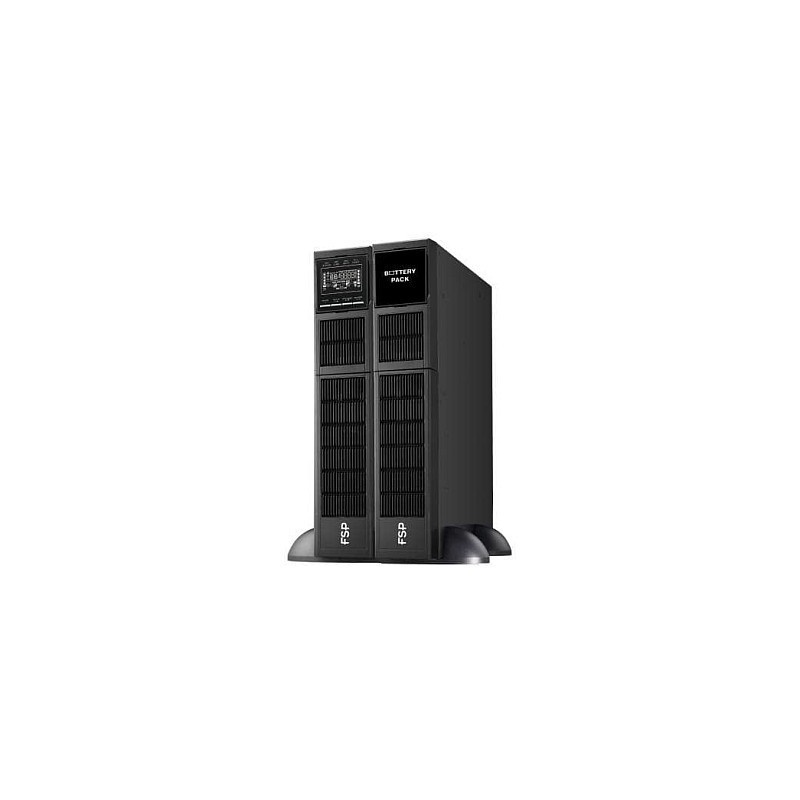

FSP Clippers RT 2K uninterruptible power supply (UPS)

FSP Clippers RT 2K. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 2000 W. AC outlet types: C13 coupler, USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 33 min. Form factor: Rackmount/Tower, Product colour: Black, Cooling type: Active. Compliance certificates: CE, Certification: EMC EN62040-2 C2

FSP Clippers RT Series Clippers series is a premium featured online double conversion UPS with Rack/Tower design and high efficiency to reduce customer's total cost of ownership. The internal hot-swappable battery increases system reliability and reduces MTTR; the parallel function is designed for future equipment expansion. Its special firmware design can adapt to various applications like laser printers and ultrasound devices and supports long backup time with battery monitoring.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 2 kVA
Output power: 2000 W
Waveform: Sine
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Input frequency: 40/70 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output frequency: 46/64 Hz
Output voltage regulation: 1%
Response time: 4 ms
Number of input phases: 1
Power factor: 0.99
Crest factor: 3:1
Feature: ECO mode
Total Harmonic Distortion (THD) (linear load): 2%
Total Harmonic Distortion (THD) (non-linear load): 4%
Noise level: 50 dB
Feature: Surge protection
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Overload alarm, Low battery alarm

Ports & interfaces

AC outlet types: C13 coupler
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Feature: Emergency Power Off (EPO) connector

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of battery cells: 4
Typical backup time at full load: 33 min
Battery recharge time: 3 h

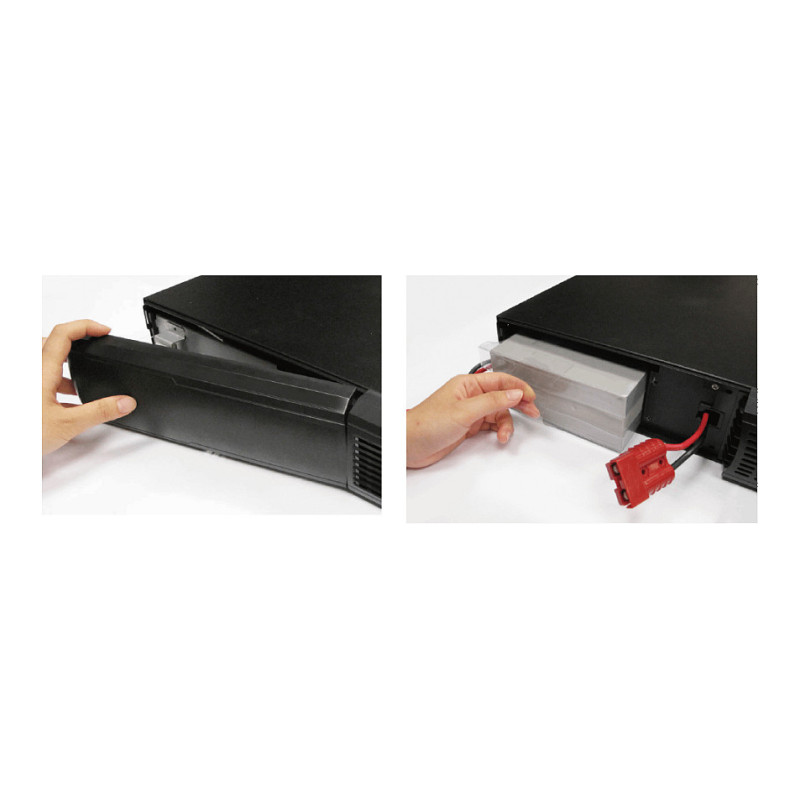

Feature: Hot-swap battery

Design

Form factor: Rackmount/Tower
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Certificates

Compliance certificates: CE
Certification: EMC EN62040-2 C2

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 438 mm
Depth: 510 mm
Height: 88 mm
Weight: 19.5 kg

Logistics data

Harmonized System (HS) code: 85078000

Other features

Packaging content: UPS, user manual, software CD, C14-C13 cable, USB cable, tower stands, mounting ears & screws
