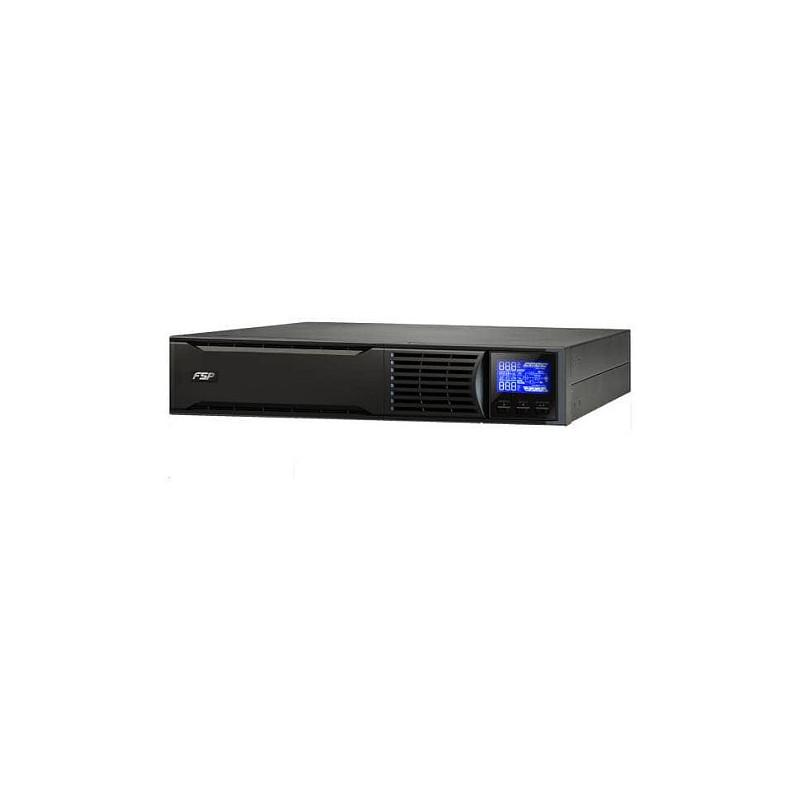

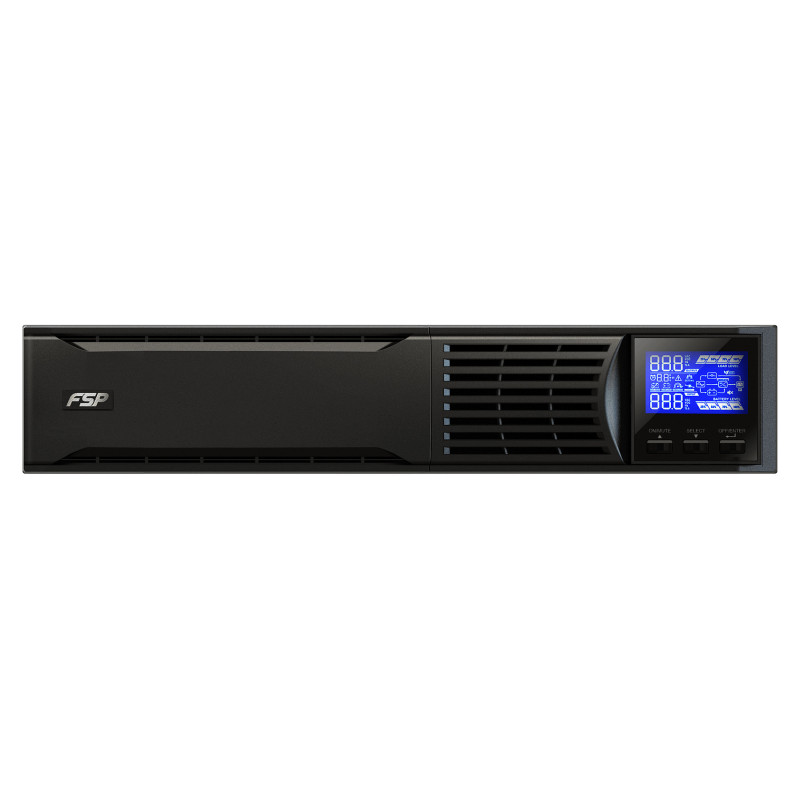

FSP Champ Rack 2K uninterruptible power supply (UPS)

FSP Champ Rack 2K. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: Type F, AC outlets quantity: 3 AC outlet(s), USB port type: USB Type-B. Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time (90%): 4 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE
FSP Champ Rack Series is the high density version of double-conversion online UPS with a output power factor 0.9. It's designed in small cabinet with microprocessor controller. It also has USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 2 kVA
Output power: 1800 W
Waveform: Pure sine
Input operation voltage (min): 120 V
Input operation voltage (max): 300 V
Input frequency: 40 - 70 Hz
Output operation voltage (min): 110 V
Output operation voltage (max): 240 V
Output frequency: 47/63 Hz
Output frequency regulation: 0 Hz
Output voltage regulation: 1%
Response time: 0 ms
Power factor: 0.99
Crest factor: 3:1
Total Harmonic Distortion (THD) (linear load): 3%
Total Harmonic Distortion (THD) (non-linear load): 6%
Noise level: 50 dB
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm

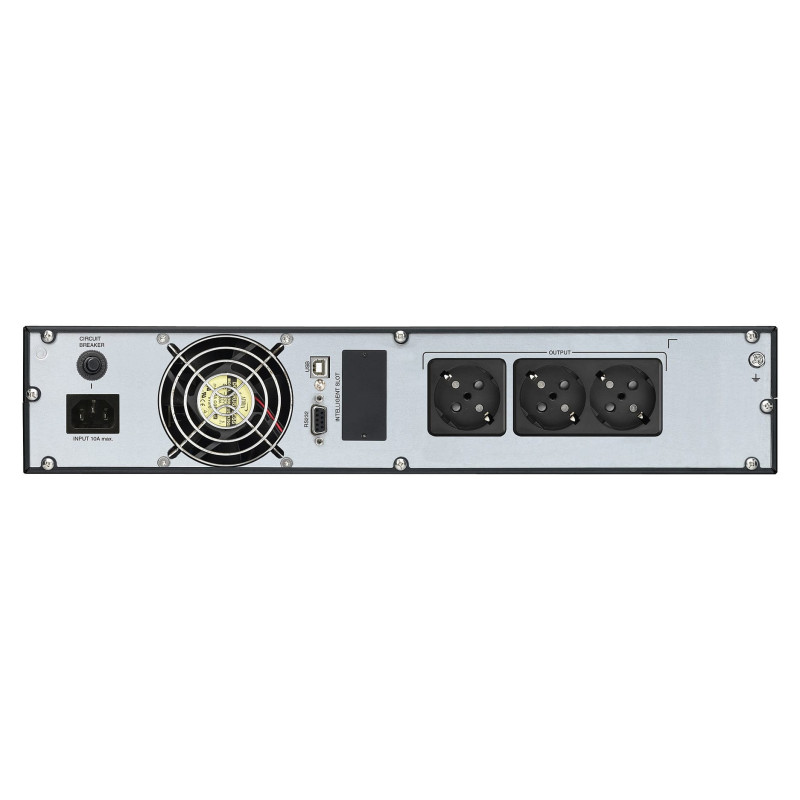

Ports interfaces

AC outlet types: Type F
AC outlets quantity: 3 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Number of battery cells: 4
Battery recharge time(90%): 4 h

Design

Form factor: Rackmount
Rack capacity: 2U
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Control type: Buttons
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Certificates

Compliance certificates: CE

Packaging content

Feature: Batteries included
Cables included: Input power cable, USB cable
Feature: Manual

Sustainability

Feature: Sustainability compliance

Weight dimensions

Width: 438 mm
Depth: 410 mm
Height: 88 mm
Weight: 19 kg

Packaging data

Feature: Software CD

Logistics data

Harmonized System (HS) code: 85078000

Other features

Number of phases: 1
Packaging content: UPS, Power cable, USB cable, Software on CD, User manual
