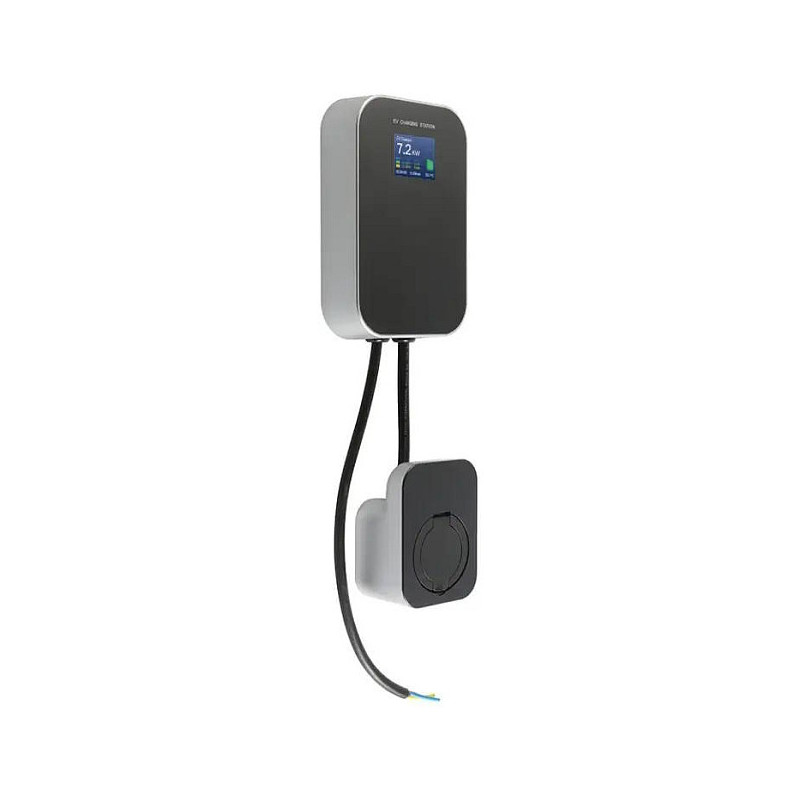

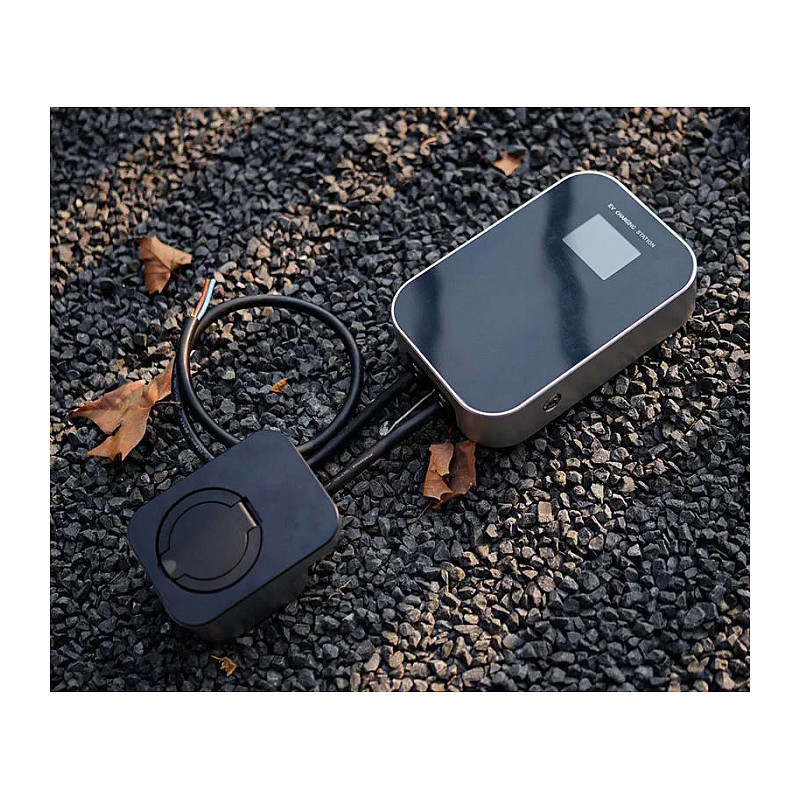

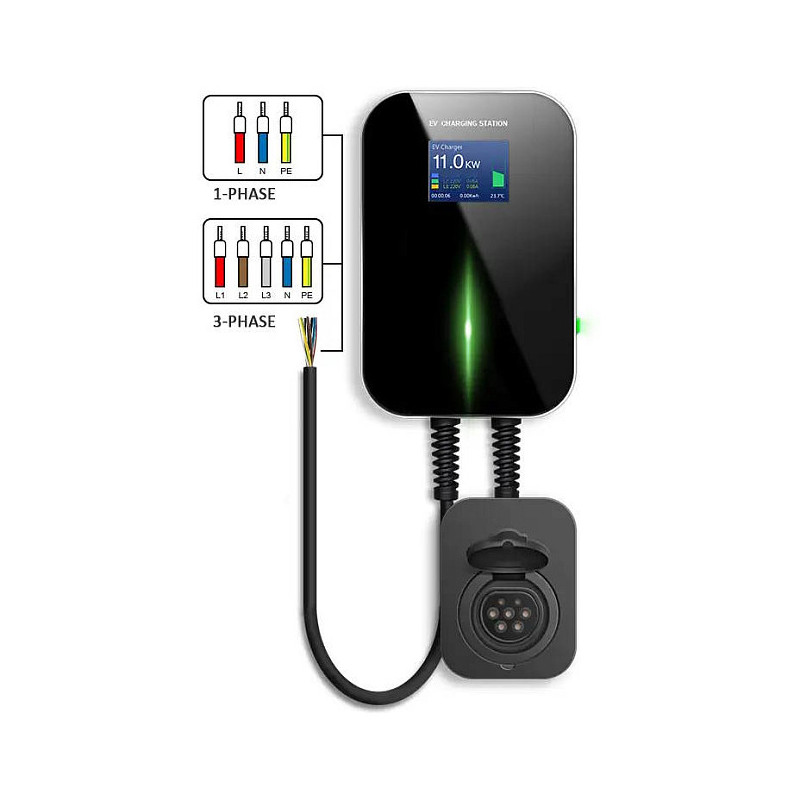

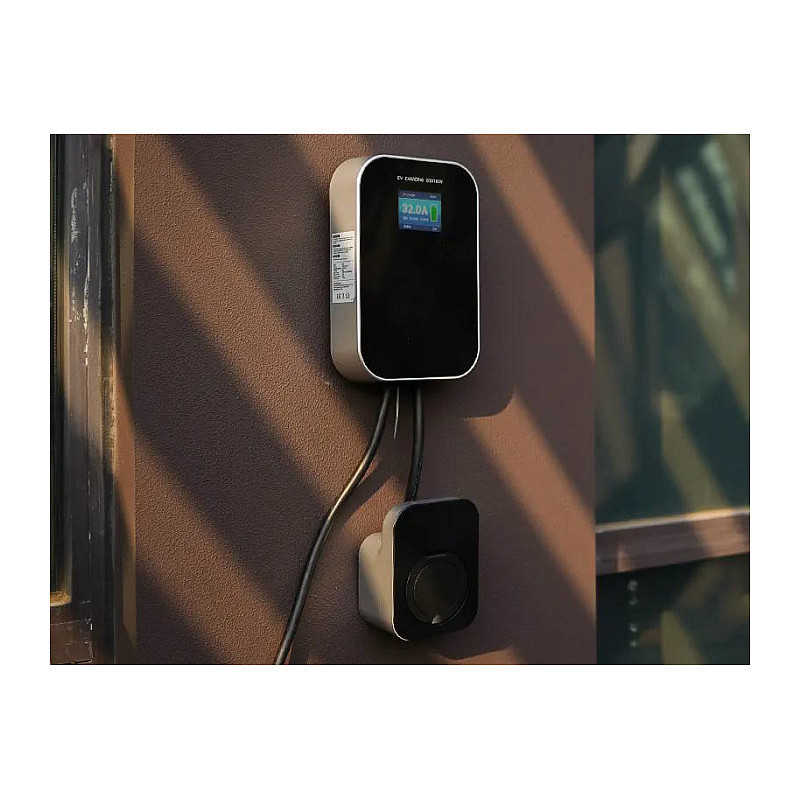

Extralink BS20-BA-22kW-APP Typ A 32A 22kW , adowarka do samochodu elektrycznego , 3 fazy, ekran LCD, aplikacja, 6,1m

Extralink Electric car charger BS20-BA-22kW-APP Type A 32A 22kW 3 phase, LCD screen, APP, 6,1m. Charging voltage: 100 / 250 / 380 V, Power plug: Type A, Output power: 22 kW

Charger for electric car Type A 32A 22kW.
Introducing the perfect solution for charging electric vehicles at home - our Extralink wall-mounted EV charger. With a powerful 3-phase power of 22kW, this charger provides fast and efficient charging so you can get back on the road in no time. It is easy to install, stable in operation and has a complete protection mechanism. The LCD display can show detailed charging status. It is designed for home use, making it ideal for EV owners who want to charge their cars overnight or during off-peak hours.

LCD display
Equipped with a sleek LCD display, our EV charger provides real-time information on the status of charging, including time remaining to full charge.

Residual current protection RCD Type A 6mA
The product is equipped with RCD type A 6mA residual current protection, which meets the latest EU safety standards.

Temperature monitoring
Monitor the operating temperature of the charger at all times. When the charger exceeds the safe temperature, it will stop working immediately, and the charging system can be automatically resumed when the temperature returns to normal.

Chip automatically fixes errors
The smart chip can automatically fix common charging errors to ensure stable operation.

Full certification
The product has passed all relevant certifications in Europe and North America, ensuring that the product can be sold and used with complete confidence.

Easy installation
The installation process is simple and efficient, with an estimated time of 10-15 minutes.

Features

Charging voltage: 100 / 250 / 380 V
Output power: 22 kW
Output current: 32 A
AC input voltage: 100 / 250 / 380 V
AC input frequency: 47-63 Hz
Number of phases: 3
Feature: Built-in display
Suitable for: Outdoor
Display type: LCD
IK code: IK10
Power plug: Type A
Number of connectors: 3
Feature: Bluetooth
International Protection (IP) code: IP66
Feature: On/off switch
Mounting type: Wall
Product colour: Black
Certification: CE, FCC, ROHS, CCC, CSA, IK10, IP66

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 0 - 95%
