EV Charging Station NS

This technologically advanced charging station offers both single-phase and three-phase operation, adapting to the varying needs of electric vehicle users. Thanks to the station's versatility, you can charge your electric car at maximum power. 22 kW in three-phase mode or 7.3 kW in single-phase mode, which provides great flexibility depending on the available power and vehicle requirements. Properly configured, this station is able to meet a variety of usage scenarios, both in private households and commercial charging points.

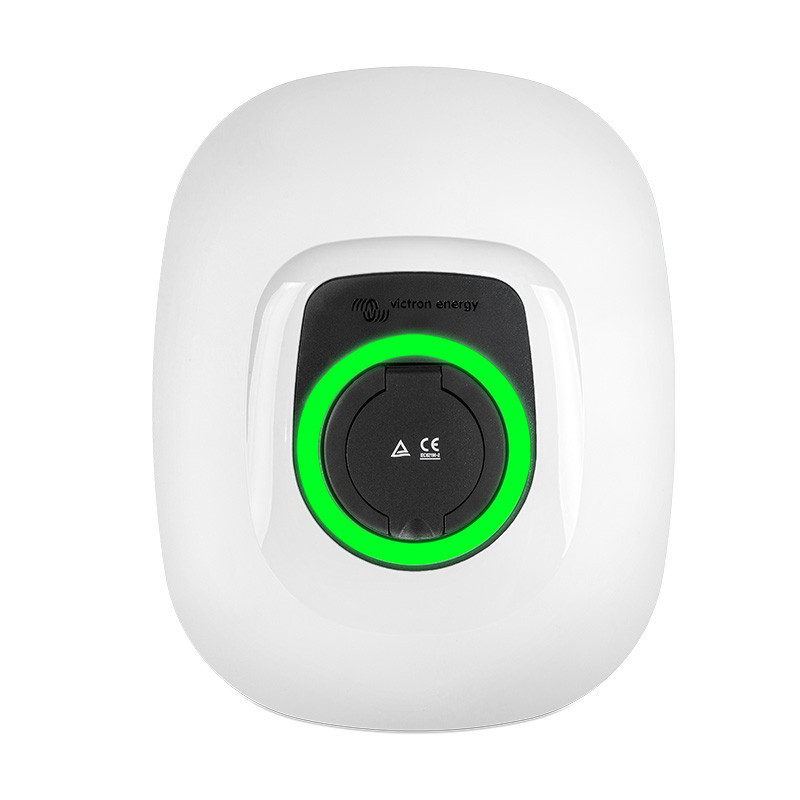

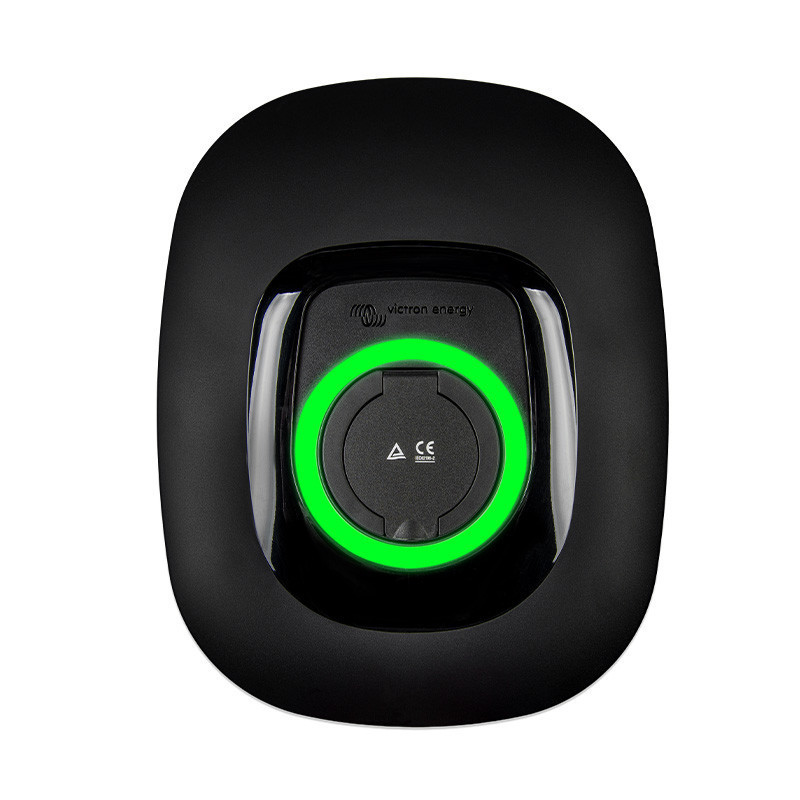

Charging Station EV Charging Station NS It was designed with maximum efficiency and safe use in mind. Equipped with modern charging management systems, it protects against overloads, overheating, and unauthorized access. This ensures not only high charging efficiency but also complete safety. EV Charging Station NS can be integrated with photovoltaic systems, allowing excess solar energy to be used to charge the vehicle. RGB light ring informs about the current charging status, which makes it easier to monitor the charging process.

Advanced features and modern design

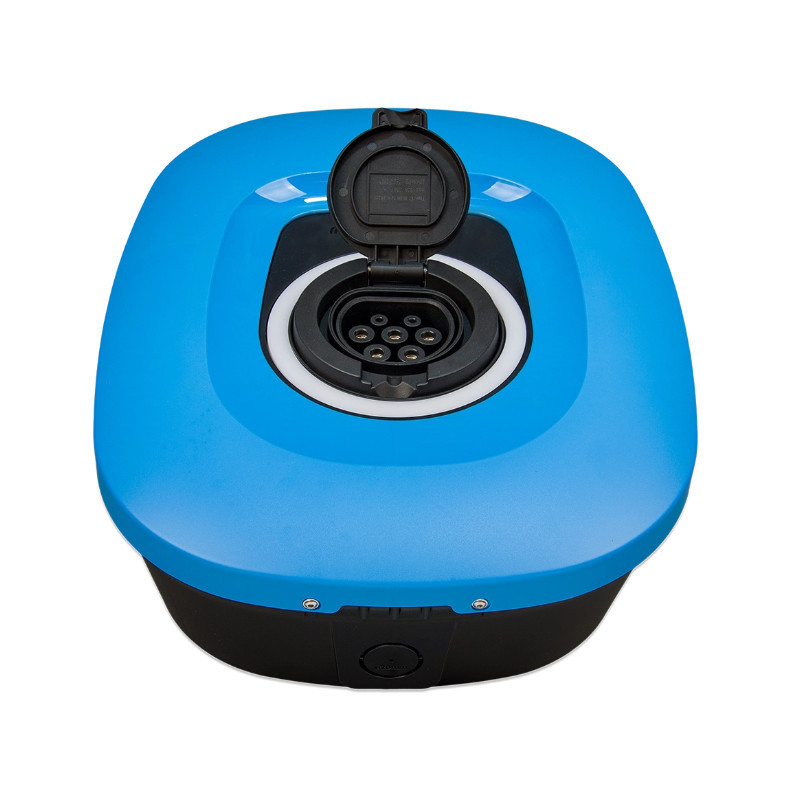

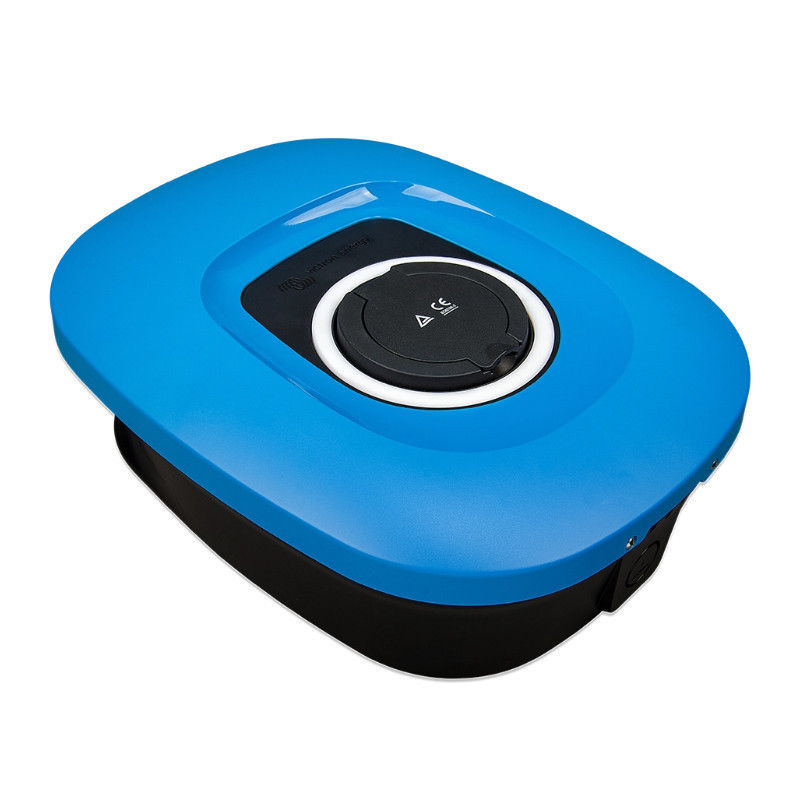

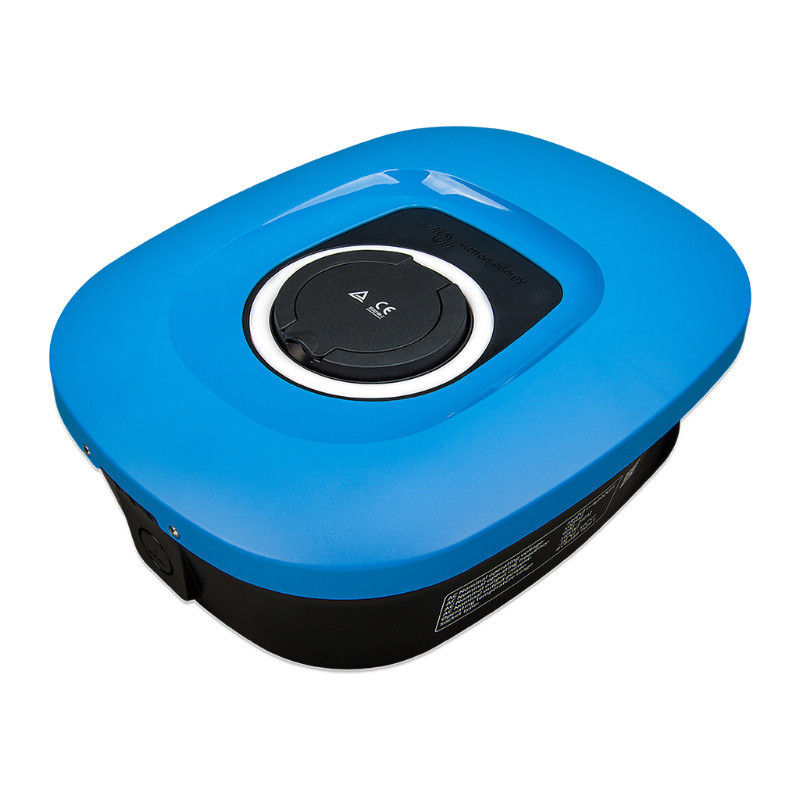

Charging station EV Charging Station NS It features a modern, minimalist design that blends seamlessly into both private homes and commercial charging points. It is available in three color options: Light Blue (RAL 5012), Traffic Black (RAL 9017) and White (RAL 9016) Although it does not have a built-in LCD screen, its configuration and monitoring are performed using VictronConnect by Bluetooth or integrated web interface, which makes it easy to use and flexible in terms of management.
Thanks to compatibility with Victron Energy GX Device and VRM The charging station can be fully integrated with existing energy management systems, allowing for optimal use of energy resources, including renewable energy sources such as photovoltaic panels. The station offers various charging modes – manual and scheduled – that can be tailored to the user's individual needs and schedule.

Technical specifications

• Input voltage Vac: 170-265V


• Input current: 32A / phase


• Nominal power: 22 kW


• Output current range: 6 - 32 A


• WiFi standards: 802.11 b/g/n (2.4 GHz only)


• Self-consumption: 15 mA @ 230 V


• Configurable max current: 10-32 A


• Configurable minimum current: 6 A to 1 A below maximum


• Connector type: IEC 62196 Type 2

General information

• How to disconnect: External circuit breaker (40A recommended)


• Configurable price/kWh calculator: Default setting 0.13 (adjustable)


• Control type: Website, GX Device via Modbus TCP, VictronConnect via Bluetooth


• Light ring: 55 available, configurable lighting effects

Safeguard

• External RCD required

Working conditions

• Operating temperature: -25 °C to +50 °C


• Storage temperature: -40 °C to +80 °C


• Humidity: 95%, non-condensing

Data communication

• Modbus TCP via WiFi, Bluetooth

Case

• Housing color: Light Blue (RAL 5012), Traffic Black (RAL 9017), White (RAL 9016)


• Power terminals: 6-10 mm² / AWG 10-8


• Degree of protection: IP44


• Ventilation: Not required


• Libra: 3 kg

Technical data

• Security:



  • EC 61851-1, IEC 61851-22


  • Welded relay contact detection


  • Detection of missing protective conductor


  • Missing ground detection


  • CP short circuit detection





Charging station EV Charging Station NS is a versatile and modern solution that will work well in both private homes and commercial premises. Thanks to the ability to work in single-phase and three-phase, the device is suitable for a wide range of users. Advanced power management features and easy integration with systems Victron Energy allow for the efficient use of available energy resources, including solar energy.
