EV Charging Station

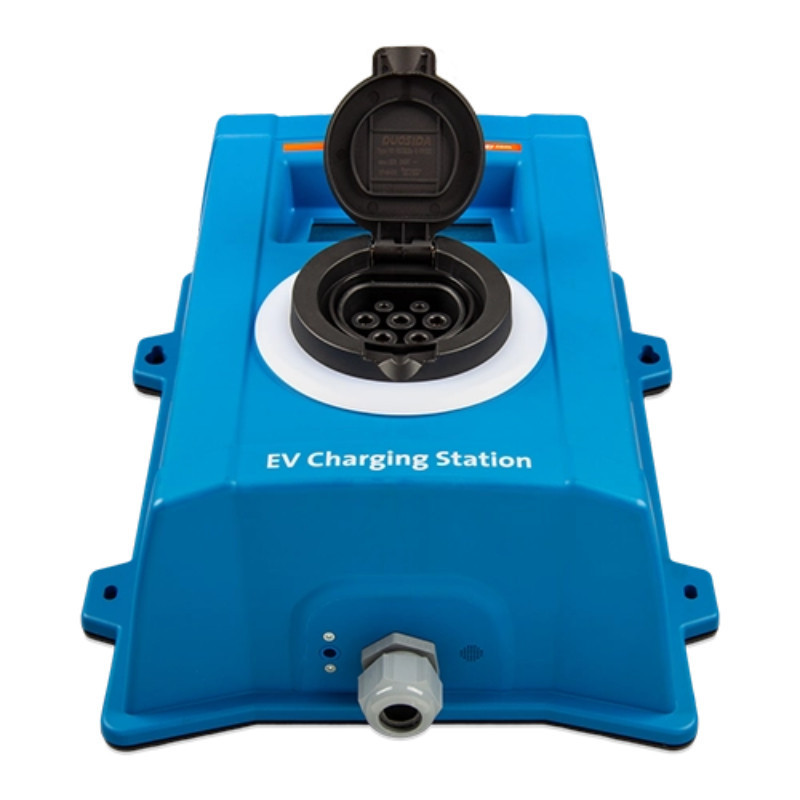

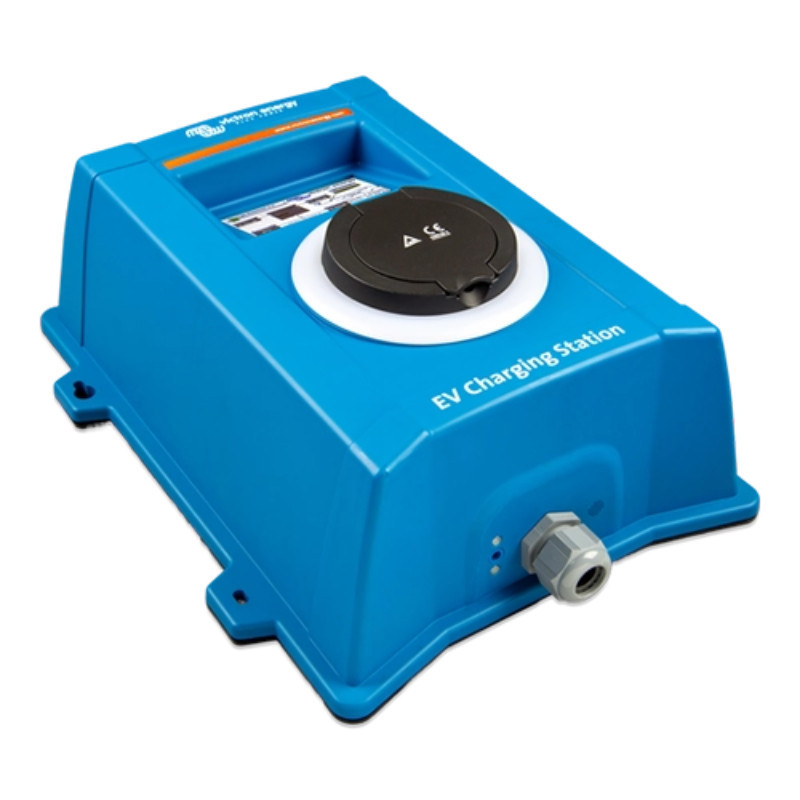

Electric car charging station EV Charging Station With a power of 22 kW, this advanced device allows for charging electric cars in both three-phase and single-phase modes. This offers flexibility and the ability to adapt charging to available power and user requirements. The station is ideal for both home and public use, ensuring fast and efficient charging. With the ability to connect to a photovoltaic power plant, the device allows for the use of surplus solar energy, which translates into savings and an eco-friendly approach to powering electric cars.
EV Charging Station It offers intuitive management via a built-in 4.3-inch LCD touchscreen. The user has full control over the charging process, with the ability to set various parameters, such as the output current (adjustable from 6 to 32A), allowing for optimal charging based on needs. An additional advantage is the built-in RGB light ring, which uses colorful lighting effects to indicate the vehicle's charge status. Automatic mode allows for maximum use of surplus energy from photovoltaic systems, making the charging process exceptionally efficient and economical.
The device supports Wi-Fi communication, enabling remote configuration and monitoring via a web browser or app. The station is also compatible with devices GX companies Victron Energy, which provides wide possibilities of integration with energy monitoring and management systems in homes or companies. EV Charging Station can work with various power sources - directly from the mains, from solar energy or stored in batteries, giving the user full control over which source they use.

Technical specifications

• Model: EV Charging Station 22kW


• Input voltage Vac: 170-265V


• Input current: 32A / phase


• Nominal power (three-phase): 22kW


• Nominal power (single phase): 7.3kW


• Adjustable output current: from 6 to 32A


• WiFi standards: 802.11 b/g/n (2.4 GHz)


• Own consumption: 15mA @ 230V

• Recommended external protection: 40A


• Price calculator per kWh: Yes


• How to manage your device: touchscreen, website, GX device, Modbus TCP


• Operating temperature: -25°C / +50°C


• Storage temperature: -40°C / +80°C


• Humidity: 95% non-condensing


• Method of communication: Modbus TCP over WiFi

• RAL: Blue RAL 5012


• Cable connector: 6-10mm² / AWG 10-8


• Tightness class: IP44


• Ventilation: not required


• Libra: 3 kg


• Dimensions (length x width x depth): 390 x 300 x 150 mm

• Safety standards: IEC61851-1, IEC61851-22

Charging station EV Charging Station This technologically advanced device fits seamlessly into modern electrical power systems. Its versatility in energy sources and ease of management make it an excellent choice for both home and commercial use. The ability to charge from surplus solar energy and its high power output of 22 kW make this solution exceptionally efficient, environmentally friendly, and reliable.
