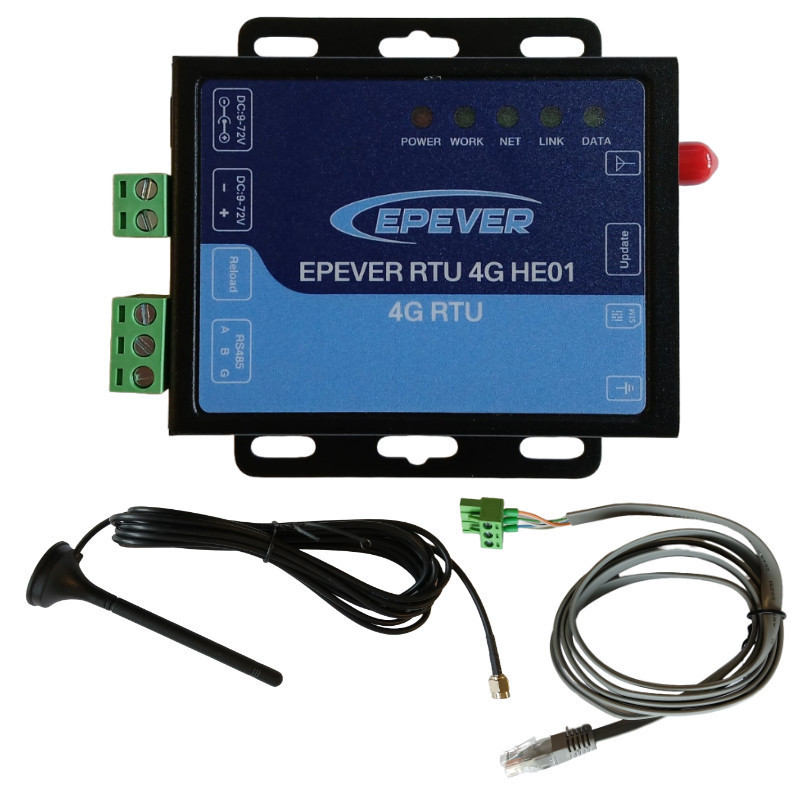

EPEVER RTU 4G HE01 Transmission Terminal

is an advanced data transmission terminal that operates on globally reaching technology 4G, ensuring reliable and wireless communication. Thanks to the ability to connect to the network using GSM/GPRS SIM cards, this terminal allows you to easily connect to a cloud server EPEVER, which allows remote management of connected devices. This is an excellent solution for managing solar controllers, inverters and inverter/chargers, ensuring full integration with industrial automation systems thanks to the protocol Modbus RTU The terminal automatically reconnects in the event of momentary interruptions, minimizing the risk of downtime.
4G technology in the RTU 4G A terminal offers wide network coverage, which means it can be used both in densely populated urban areas and in remote rural areas. Modbus RTU protocol ensures compatibility with a variety of devices, which facilitates its use in various industrial environments. Automatic recovery after disconnection ensures business continuity by eliminating the risk of data loss.

Main technical features and specifications

Terminal EPEVER RTU 4G supports a wide range of frequencies, including GSM900/1800MHZ, CDMA, WCDMA, and LTE. Supports various network protocols such as TCP/UDP/FTP/PPP/DNS and offers flexibility in terms of bandwidth from 9600 to 115200bps at the ports RS485 It is designed to operate in extreme environmental conditions, tolerating temperatures ranging from -40 to 85°C and humidity at the level 0 to 95% without condensation. The terminal is characterized by low power consumption, both in communication mode and in the idle state, which makes it an economical solution in remote applications.

Technical specifications

• Model: GPRS EPEVER RTU 4G


• Network type: GPRS class12


• Coding method: CS1 - CS4 (according to SMG31bis)


• Frequency:



  • GSM900/1800MHZ


  • CDMA: BC0


  • WCDMA: B1/B8


  • TD-SCDMA: B34/B39


  • LTE TDD: B38/B39/B40/B41


  • LTE FDD: B1/B3/B5/B8






• GPRS transmission speed: 150M


• Network protocol: TCP/UDP/FTP/PPP/DNS


• SIM card voltage: 3V/1.8V

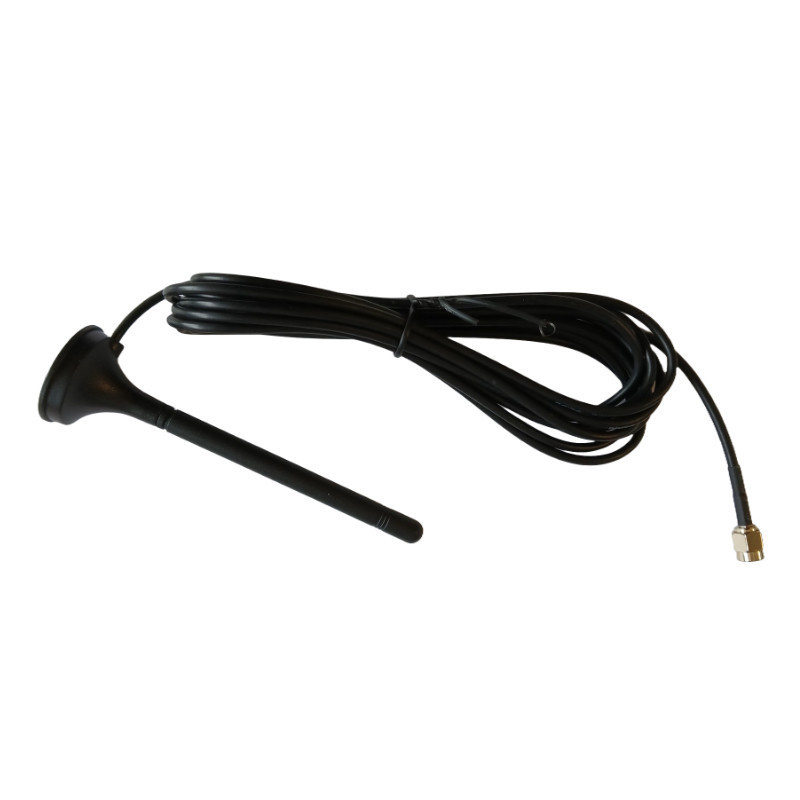

• Antenna connector: 50Ω IPX connector

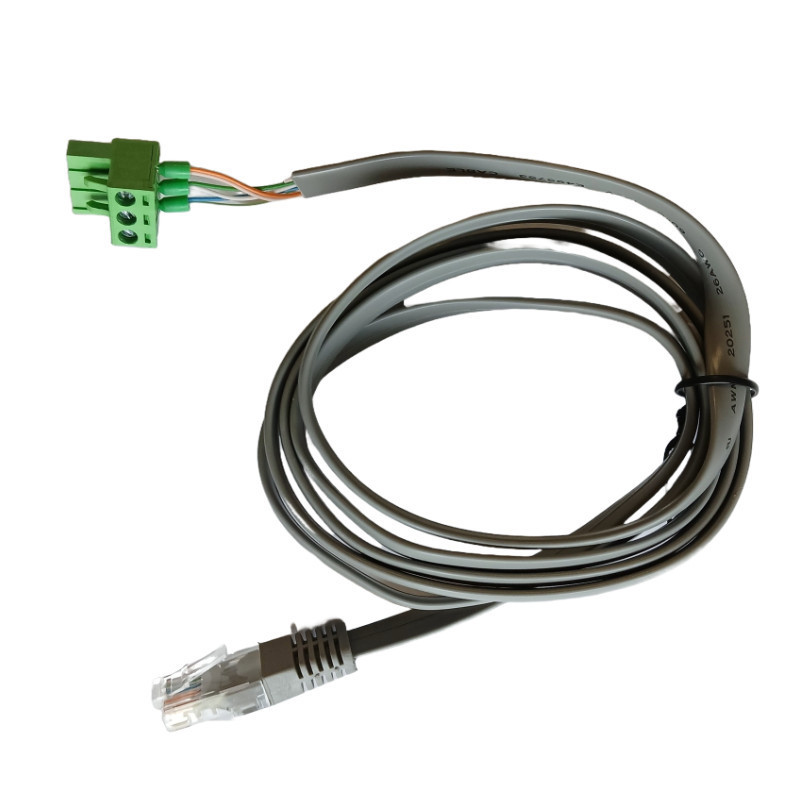

• Serial port level type: RS485


• Serial port speed: 9600~115200bps


• Power: DC: 9~60VDC or 5VDC


• Energy consumption:



  • Communication: > 200mA/5V


  • Idle: > 40mA/5V






• Ambient temperature: -40~85


• Humidity: 0 ~ 95% (non-condensing)


• Electromagnetic compatibility:



  • Electrostatic discharge immunity test, level 3


  • Anti-interference test, level 3





is a reliable, versatile tool for remote communication that, thanks to its technology support, 4G and protocol Modbus RTU It provides seamless device management in a variety of environments. Its robust design, high performance, and wide range make it an ideal choice for both industrial applications and more demanding customers.
