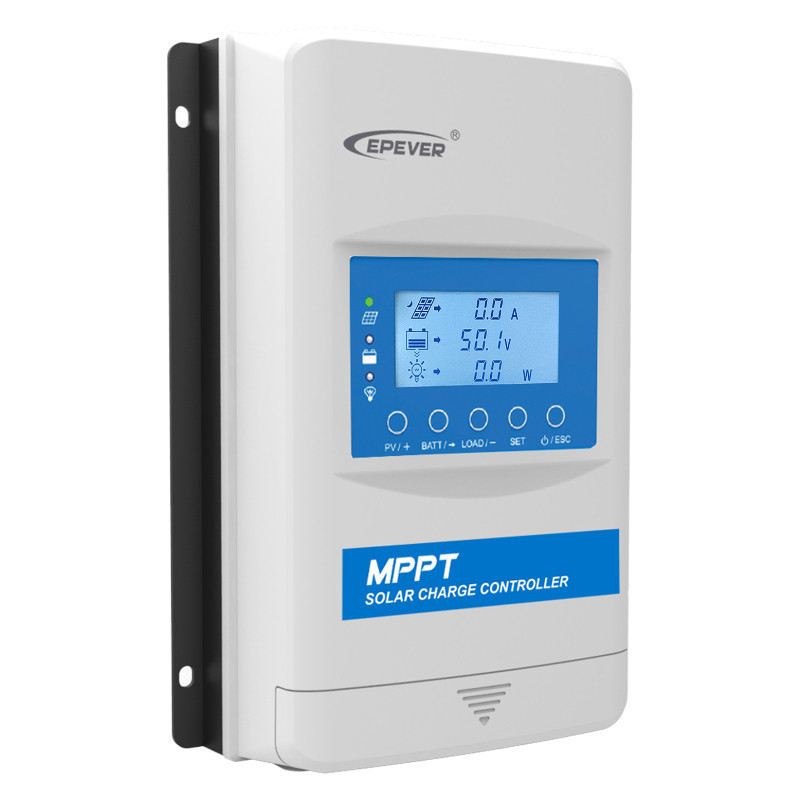

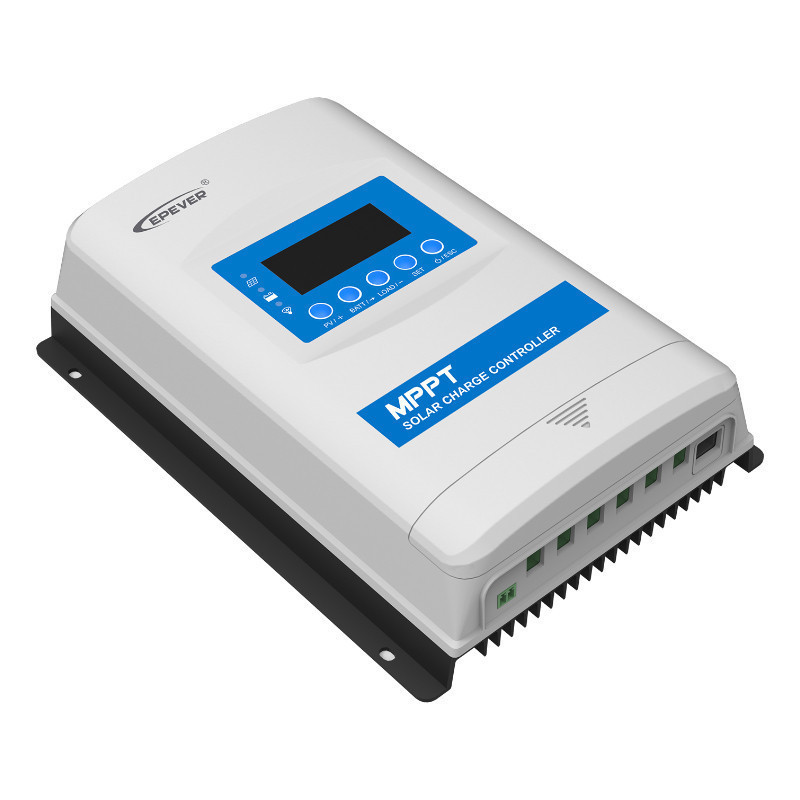

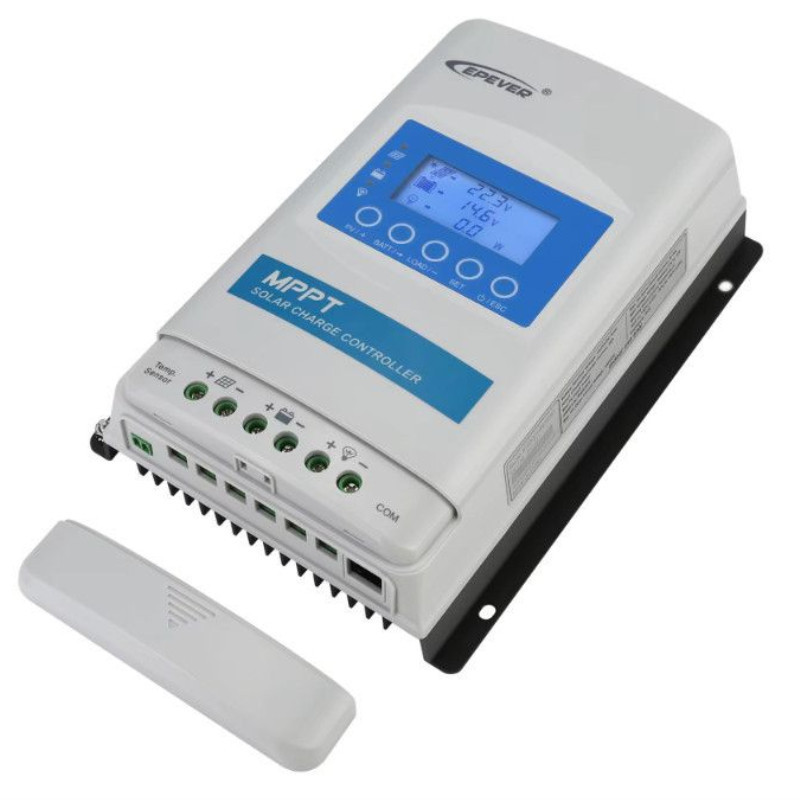

EPEVER MPPT XTRA1210N G3 BLE 10A Charge Controller

Charge controller EPEVER MPPT XTRA1210N G3 BLE 10A is an advanced device that allows for maximum utilization of energy from photovoltaic panels. Thanks to the use of technology MPPT (Maximum Power Point Tracking), this controller automatically adapts to changing environmental conditions, minimizing power losses and maximizing system efficiency. Compared to traditional controllers PWM, MPPT technology can increase the efficiency of the PV system by up to 20-30%, making it an excellent choice for demanding solar installations.
Thanks built-in Bluetooth and LCD display, the user has full control over the system. The EPEVER app allows for real-time monitoring of all key parameters, without the need for an internet connection. This makes managing the PV installation not only easier but also more precise. Compatibility with various types of batteries - liquid, AGM, gel, lithium and LiFePO4 - allows the regulator to be adapted to any system.

Advanced MPPT Technology and Reliability

One of the most important advantages of the regulator XTRA1210N is its ability to respond quickly to changes in weather conditions. Thanks to the advanced MPPT algorithm, the device is able to adapt to the maximum power point in the PV circuit, significantly increasing system efficiency. MPPT tracking above 99.5% guarantees maximum charging efficiency, which is extremely important, especially in unstable weather conditions.
The device ensures stable work even when using larger PV modules. The charging power and charging current limiting functions, as well as automatic power reduction at high temperatures, further improve the system's safety and reliability. High charging conversion efficiency, reaching up to 96.2%, makes this regulator one of the most effective devices in its class.

Versatility and Scalability

Regulator EPEVER XTRA1210N offers a wide range of load operating modes, allowing for flexible adaptation to various PV system configurations. The ability to monitor energy statistics in real time allows for full control over energy production and consumption. This not only improves efficiency but also enables optimization of operating costs and better management of energy resources.
An additional advantage is the ability to set parameters using PC software, a mobile app, or a remote meter. This means that regardless of your location, you have full control over your PV installation. Thanks to ergonomic design and intuitive interface, using the controller is easy and convenient, even for people without advanced technical knowledge.

Technical Specifications

• Model: XTRA1210N G3 BLE 10A charging controller


• Nominal system voltage: 12/24VDC/Auto


• Controller operating voltage range: 8～31V


• Rated charging current: 10A


• Rated discharge current: 10A


• Maximum PV open circuit voltage:



  • 100 V (at minimum operating temperature in the environment)


  • 92 V (at 25°C ambient temperature)






• MPPT voltage range: (Battery voltage + 2V) ~ 72V


• Rated charging power:



  • 130W/12V


  • 260W/24V






• Maximum conversion efficiency: 98.20%


• Maximum load efficiency: 96.20%


• Static losses (communication port enabled):



  • ≤ 15mA (12V)


  • ≤ 9mA (24V)






• Static losses (communication port disabled):



  • ≤ 8mA (12V)


  • ≤ 6mA (24V)






• Voltage drop in the discharge circuit: ≤ 0.23V


• Temperature compensation: -3 mV/ /2 V (Default)


• Grounding type: Common negative pole


• RS485 port: 5VDC/200mA (RJ45)


• LCD backlight time:



  • Default: 60 sec


  • Range: 0~999 sec (0 sec: backlight is on all the time)






• Dimensions: 175×143×48 mm


• Mounting dimensions: 120×134 mm


• Dimensions of mounting holes: Φ5 mm


• Terminal: 12AWG (4mm²)


• Recommended wire size: 12AWG (4mm²)


• Net weight: 1.30 kg


• Operating temperature range: -25 ~ +50


• Storage temperature range: -20 ~ +70


• Relative humidity: ≤95%, NC


• Case: IP33 (3 - protection against solid objects larger than 2.5 mm, protection against water drops falling at an angle of up to 60° from the vertical)


• Degree of contamination: PD2

Charge controller EPEVER MPPT XTRA1210N G3 BLE 10A It's an excellent choice for those seeking efficient and reliable solutions for photovoltaic systems. Thanks to advanced MPPT technology and built-in Bluetooth, the device offers complete control over the charging process and system monitoring. Its high efficiency and compatibility with various battery types make it ideal for a wide range of applications. Its robust design and safety features ensure your system will operate smoothly for years to come.
