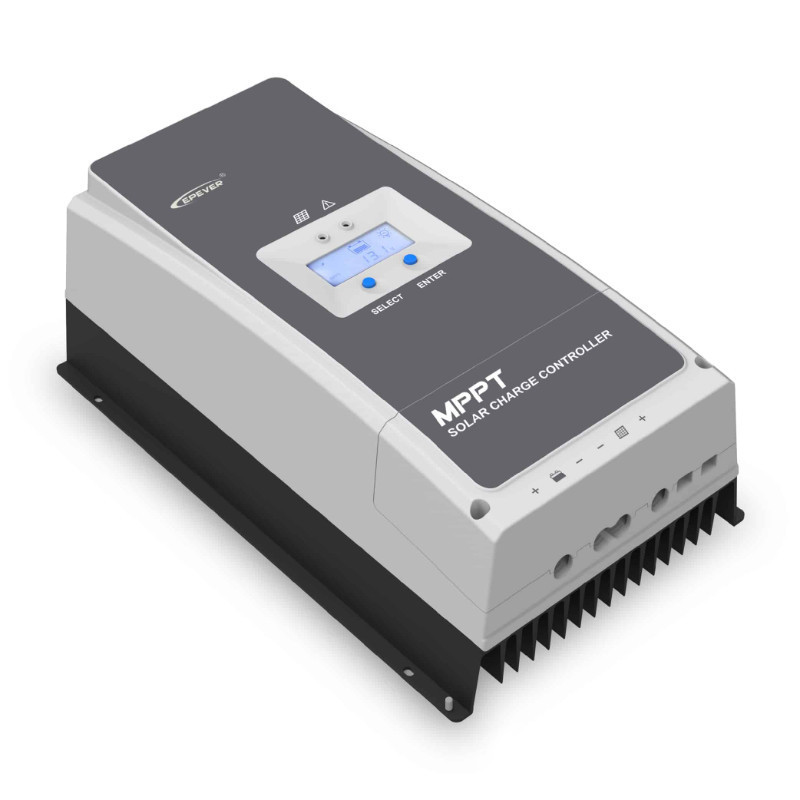

EPEVER MPPT Tracer 6420AN 60A Charge Controller

Charge controller EPEVER MPPT Tracer 6420AN 60A It's the perfect solution for advanced photovoltaic systems that require stability and high efficiency. Capable of handling systems up to 3000W, this controller is a reliable tool for managing solar energy, expandable to 30 kW with additional units.

Stability and Efficiency at the Highest Level

is a model designed to ensure maximum operational stability. Thanks to its advanced function limiting charging power and current, the system can automatically adjust power, protecting against overloads and overcharging. Automatic power reduction functions at high temperatures further enhance reliability, even in the most demanding environmental conditions. Supports up to 6 units in parallel allows for system scalability, which provides flexibility in designing large installations.

Compatibility with Various Battery Types

One of the most important advantages Tracer 6420AN regulator is its versatility in handling different types of batteries. The device is compatible with batteries lead-acid (sealed, gel and flooded) and lithium (LiFePO4 and Li(NiCoMn)O2), which allows for wide use in various installations. Advanced MPPT algorithm minimizes energy losses by maximizing the power obtained from solar panels, which translates into longer battery life and higher efficiency of the entire system.

Advanced MPPT Algorithm - Maximum Energy Efficiency

Technology MPPT (Maximum Power Point Tracking) in the EPEVER controller allows for optimal management of energy from solar panels, adapting operation to current lighting and climate conditions. This allows the system to achieve Power tracking efficiency above 99.5%, which is one of the highest results in this class of devices. Compared to traditional regulators, Tracer 6420AN ensures more efficient charging even in partial shade.

Performance and Scalability - Supports up to 6 Units Simultaneously

It allows for parallel connection of up to six units, meaning the system can be expanded to a maximum capacity of 30 kW. This functionality makes this controller an ideal choice for both small residential installations and larger commercial projects. This makes the system scalable and adaptable to varying power requirements, offering complete flexibility.

Intelligent System Management and Monitoring

The controller is equipped with LCD display, which allows for real-time monitoring of operating parameters such as voltage, charging current, PV power, and other key data. Additionally, a remote temperature and voltage sensor allows for precise adjustment of operating parameters to current environmental conditions, increasing energy efficiency. RS-485 communication interface with the MODBUS protocol enables integration with energy management systems, which ensures full control over the operation of the installation.

Reliability and Safety at Every Step

Products EPEVER are valued for their reliability and durability. Regulator design Tracer 6420AN It was designed for long-term, stable operation even in the most demanding conditions. Its robust design, combined with advanced protective features such as overheating and overload protection, guarantees safe system operation for many years.

Ecological and Effective Solution

Using renewable energy, Tracer 6420AN Supports sustainable development and reduced carbon emissions. With high efficiency and energy-saving features, this controller helps reduce your carbon footprint, making your system more environmentally friendly.

Technical Specifications

• Model: Tracer 6420AN


• Nominal system voltage: 12/24/36/48VDC (automatic)


• Battery type:



  • Lead-acid (sealed/gel/flooded)


  • Lithium (LiFePO4/Li(NiCoMn)O2)


  • User






• Battery input voltage range: 8V-68V


• Rated charging current: 60A


• Rated charging power:



  • 750W (for 12V)


  • 1500W (for 24V)


  • 2250W (for 36V)


  • 3000W (for 48V)






• Maximum conversion efficiency: 98.10%


• MPPT tracking efficiency: ≥99.5%


• Maximum PV open circuit voltage:



  • 200V (at minimum temperature)


  • 180V (under standard conditions)






• MPPT voltage range: Battery voltage +2V to 144V


• Equalizing voltage:



  • Sealed: 14.6V


  • Flooded: 14.8V


  • User: 9-17V






• Increasing the voltage:



  • Gel: 14.2V


  • Sealed: 14.4V


  • Flooded: 14.6V


  • User: 9-17V






• Trickle charge voltage:



  • Gel/Sealed/Flooded: 13.8V


  • User: 9-17V






• Low Voltage Reconnect Voltage:



  • Gel/Sealed/Flooded: 12.6V


  • User: 9-17V






• Low voltage disconnect voltage:



  • Gel/Sealed/Flooded: 11.1V


  • User: 9-17V






• Self-consumption:



  • 98mA (for 12V)


  • 60mA (for 24V)


  • 50mA (for 36V)


  • 46mA (for 48V)






• Temperature compensation (for lead-acid batteries): -3mV/ /2V (default)


• Relative humidity: 5% to 95% (non-condensing)


• Protective barrier: IP20


• Communication interface: RS485 (5VDC/200mA, two RJ45 ports)


• Ground: Common negative


• Dimensions (L x W x H): 340mm x 236mm x 119mm


• Libra: 4.5 kg

is the ideal solution for advanced photovoltaic installations that require reliability, high efficiency and flexibility.
