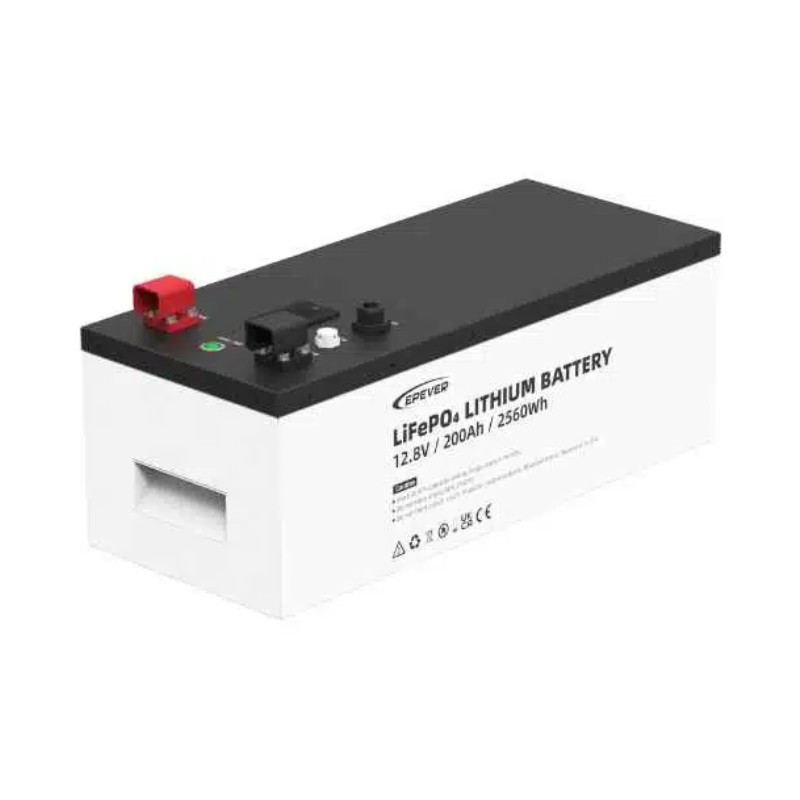

Epever LiFePO4 12.8V 200Ah IP65 battery
Product reference:
39-5906765148528
The EPEVER 200Ah lithium battery utilizes advanced LiFePO4 cells, guaranteeing over 6,000 cycles and long-lasting performance. With comprehensive IP65 protection and real-time monitoring, this battery delivers the highest reliability for your energy storage needs.
Epever LiFePO4 12.8V 200Ah IP65 battery
Product reference:
39-5906765148528
The EPEVER 200Ah lithium battery utilizes advanced LiFePO4 cells, guaranteeing over 6,000 cycles and long-lasting performance. With comprehensive IP65 protection and real-time monitoring, this battery delivers the highest reliability for your energy storage needs.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
5 - 8
business days
LiFePO4 200Ah IP65 battery
Durability and performance
The prismatic cell design effectively controls temperature, ensuring optimal cell performance. This is crucial for their durability and performance.
BMS system
Advanced battery management system (BMS) monitors the voltage, current, and temperature of each cell. Protects against overcharging, over-discharging, and overheating.
LCD display and IP65 protection
The built-in LCD display allows you to view the battery status in real time. The IP65-rated housing protects against dust and splashes.
Main features:
- LCD screen: monitoring charging status, voltage, temperature and alarms
- Class A LiFePO4 cells
- The metal housing effectively dissipates heat
- Possibility to connect up to 4 batteries in series
- ≥6000 cycles @80% DOD (25°C, 0.5C)
- Built-in cell balancing system
- Protection against: overcharging, overheating, low temperature, short circuit, overcurrent
- Maintenance-free installation
- Certificates: UN38.3, MSDS, IEC62619
Environmental resistance
IP65 protection makes the battery ideal for installation in both indoor and outdoor environments. RS485 communication allows integration with monitoring systems.
Long service life
Offers over 6,000 cycles at 80% DOD and a constant discharge current of 50A, ensuring a reliable power source for years of use.
Key advantages
- High reliability thanks to solid construction
- Stable operation and longevity thanks to the aluminum housing
- Efficient heat dissipation - ideal operating temperature
- Durable and performs in harsh environments thanks to IP65
- Easy to install and maintenance-free
- Environmentally friendly - no emissions and promotion of renewable energy sources
Technical specifications:
- Parameters / Model: LFP2.56KWH12.8V-P65L1
- Battery type: LiFePO4
- Nominal voltage (V): 12.8
- Nominal capacity (Ah): 200
- Energy (Wh): 2560
- Package mode: 4S2P
- Continuous discharge current (A): 50
- Charge cut-off voltage (V): 14.4
- Discharge cut-off voltage (V): 10.4
- Maximum charging current (A): 100
- Maximum discharge current (A): 100
- Peak discharge current (A): 120
- Recommended discharge current (A): 50
- Recommended discharge rate (%): 80
- Lifespan: ≥6000 cycles (25°C, 0.5C, 80% DOD)
- Communication: LCD display
- Charging temperature (°C): 0 ~ +55
- Discharge temperature (°C): -20 ~ +60
- Optimal storage temperature (°C): 5 ~ +35
- Recommended storage humidity: 40% ~ 80%
- Terminal: M6
- Dimensions (mm): 480 × 200 × 170
- Weight (kg): 23.8 ± 0.5
- Transport: UN383, MSDS, IEC62619
- IP Class: IP65
