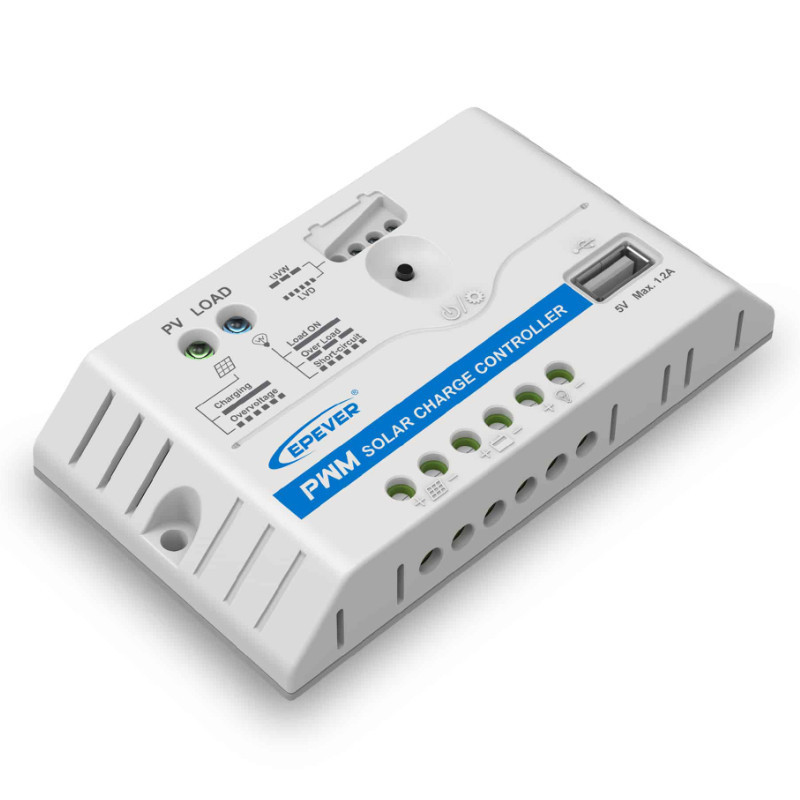

EPEVER LandStar PWM LS2024EU 20A Charge Controller
Product reference: 39-5906765148726

The EPEVER LandStar LS2024EU 20A charge controller is a compact and economical 12/24V PWM controller with a 5V/1.2A USB port, ideal for small solar systems. It features LED battery status indicators, temperature compensation, and a range of electronic safety features.

Regulator Ładowania EPEVER LandStar PWM LS2024EU 20A

EPEVER LandStar PWM LS2024EU 20A Charge Controller

Product reference: 39-5906765148726

The EPEVER LandStar LS2024EU 20A charge controller is a compact and economical 12/24V PWM controller with a 5V/1.2A USB port, ideal for small solar systems. It features LED battery status indicators, temperature compensation, and a range of electronic safety features.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
69,84 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

EPEVER LandStar PWM LS2024EU 20A Charge Controller


The excellent price-to-performance ratio makes the LS-EU series PWM charge controller unrivaled in its class. Thanks to the synergy between the LS-EU controller and panels from various manufacturers, you get an advanced and compatible solution for your energy systems.


Main features:



  • PWM serial charging mode

  • Full power operation over a wide temperature range

  • Various load control modes

  • High-quality, reliable components from renowned brands

  • USB port +5V/1.2A

  • LED indicator showing battery status

  • User-friendly interface with buttons

  • Extensive electronic security

  • Various output modes


Key features of the system:



  • PWM serial charging mode: stable and efficient charging using PWM technology.

  • Working at full power: in a wide temperature range - ideal for mobile applications.

  • Temperature compensation: automatic adjustment of the charging voltage protects the battery.

  • USB port +5V/1.2A: allows you to charge mobile devices without additional converters.

  • LED indicator: LEDs inform about the battery status and possible errors.

  • Environmentally friendly: promotes the use of renewable energy and the reduction of the carbon footprint.

  • USB port 5V/1.2A: Allows direct charging of phones, DC fans and other devices without the need for additional converters.

  • Support for 12/24V systems: Ideal for small and medium-sized off-grid installations, e.g. in holiday homes, campers or lighting systems.

  • LEDs and temperature compensation: LED indicators provide system status information, and a built-in temperature sensor optimizes charging in changing conditions.



Technical specifications:



  • Parameters / Model: LS2024EU

  • Nominal system voltage: 12/24VDC Automatic

  • Battery type: Sealed (Default), Gel, Flooded

  • Battery input voltage range: 8～32V

  • Nominal charging current: 20A

  • Nominal discharge current: 20A

  • Maximum PV open circuit voltage: 50V

  • Equalizing voltage: Sealed: 14.6V, Flooded: 14.8V

  • Amplifying voltage: Gel: 14.2V, Sealed: 14.4V, Flooded: 14.6V

  • Maintaining voltage: Gel/Sealed/Flooded: 13.8V

  • Low Reconnect Voltage: Gel/Sealed/Flooded: 12.6V

  • Low Voltage Disconnect: Gel/Sealed/Flooded: 11.1V

  • Self-consumption: 12V ≤ 5mA; 24V ≤ 7mA

  • Temperature compensation: -5mV/ /2V

  • Relative humidity: ≤95%

  • IP protection class: IP20

  • Ground: Common positive

  • Operating temperature range: -35 ～50

  • Dimensions (L x W x H) (mm): 148×85.6×34.8

  • Net weight: 0.18kg
