EPEVER 90W solar panel

EPEVER M12-36-90 90W solar panel

Technical specifications:

1. Model: M12-36-90


2. Nominal output power (Pmax): 90 W


3. Operating temperature: -45°C ~ +80°C

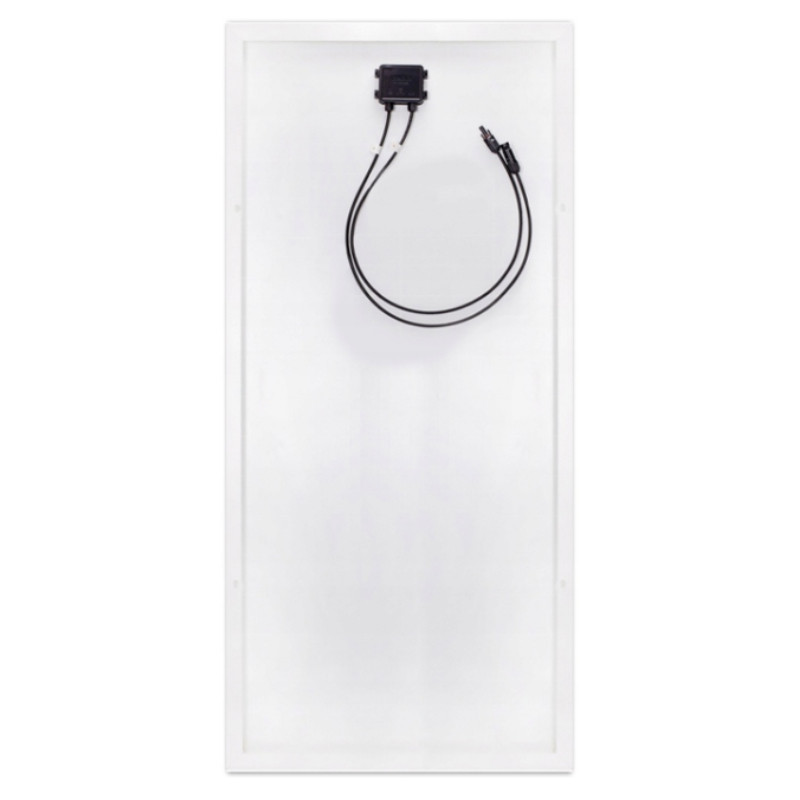

4. Junction box: IP65/IP67 (water and dust resistant)


5. Cell efficiency: 22.6%


6. Open circuit voltage (Voc): 24.3 V


7. Voltage at maximum power (Vmp): 19.9 V


8. Short circuit current (Isc): 4.80 A


9. Current at maximum power (Imp): 4.53 A


10. Maximum system voltage: 700V


11. Maximum series fuse: 10 A

Connectors and cables:

• Connector: No standard connector, compatible with MC4.


• Cable: Custom cable can be used.

Temperature coefficients:

• Temperature coefficient Isc: +0.06% / °C


• Temperature coefficient Voc: -0.32% / °C


• Temperature coefficient Pmp: -0.45% / °C

Standard Test Conditions (STC):

• Radiation intensity: 1000 W/m²


• Cell temperature: 25°C


• AM spectrum: 1.5

Material and dimensions:

1. Glass: 3.2 mm tempered glass


2. Dimensions: 1010 x 450 x 25 mm


3. Frame thickness: 25 mm


4. Libra: 5.0 kg

Advantages:

• High performance: Cell efficiency of 22.6% allows for efficient energy production with a small panel size.


• Compactness: Small dimensions and lightweight design make the panel ideal for mobile and space-constrained applications.


• Resistance: IP65/IP67 protection class ensures resistance to weather conditions and moisture.


• Versatility: Possibility of integration into systems with voltages up to 700 V and compatibility with MC4 connectors.

Ideal applications:

• Off-grid systems in small installations (e.g. campers, boats, small appliances on plots).


• Complementing larger photovoltaic installations.


• Powering portable devices that require a stable energy source.

The robust construction of tempered glass and an aluminum frame, along with an IP65/IP67 rating, ensures resistance to harsh weather conditions, ensuring durability and reliability. MC4 connector compatibility and the ability to integrate with systems up to 700V make the panel flexible and easy to use in a variety of configurations.
M12-36-90 solar panel is an ideal solution for users who need a reliable energy source in a compact form, especially in mobile systems, on plots or in places with limited installation space.
